SV41-BTPGK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9406-9605)SV41,42..ALPX,TOU,VX,ZX

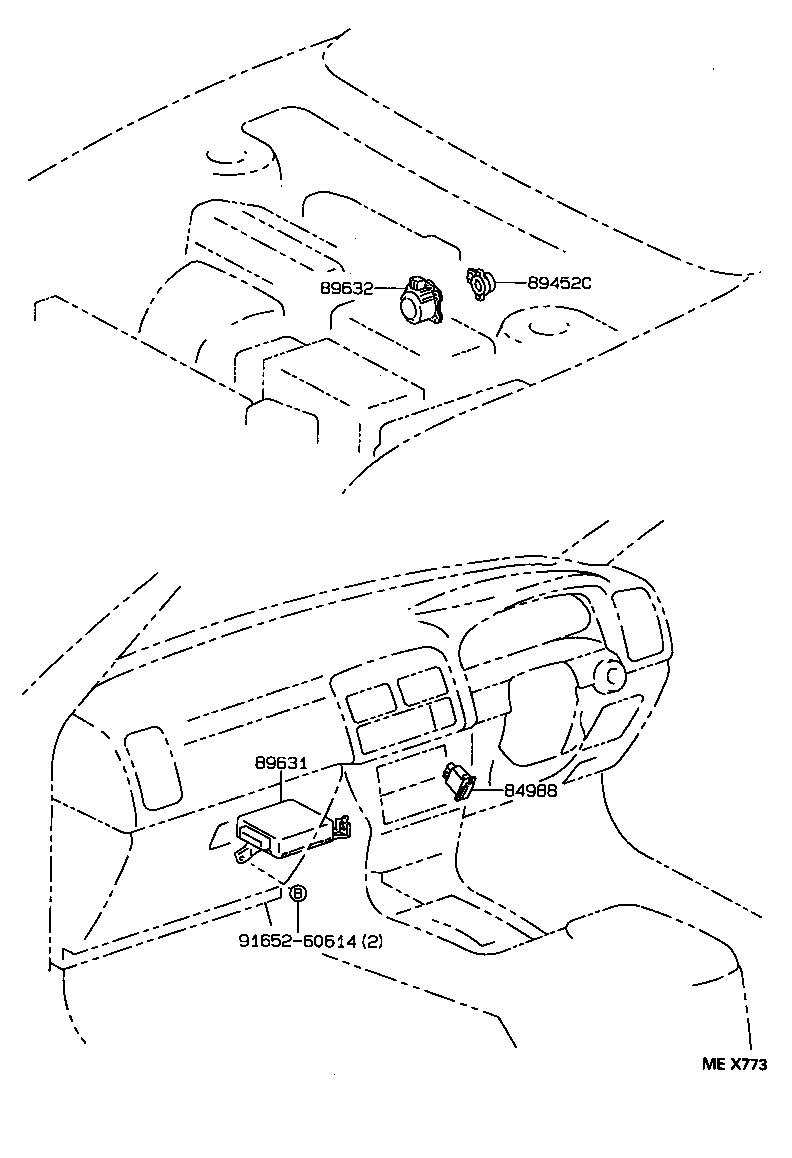

Click highlighted areas on diagram

diagram 84988 89452C 89631 89632 9165260614
Part # Description Qty Price
84988 - SWITCH, TRACTION CONTROL
84988-32010

SV41,42..ALPX,TOU,VX,ZX

 1
89452C - SENSOR, THROTTLE POSITION
89452-22090

SV41,42..ALPX,TOU,VX,ZX

 1
89631 - COMPUTER, TRACTION CONTROL
89630-32010

SV41,42..ALPX,TOU,VX,ZX

 1
89632 - MOTOR, TRACTION THROTTLE VALVE
89632-20010

SV41,42..ALPX,TOU,VX,ZX

 1
Common parts
91652-60614
