SV41-BEPMK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )SED

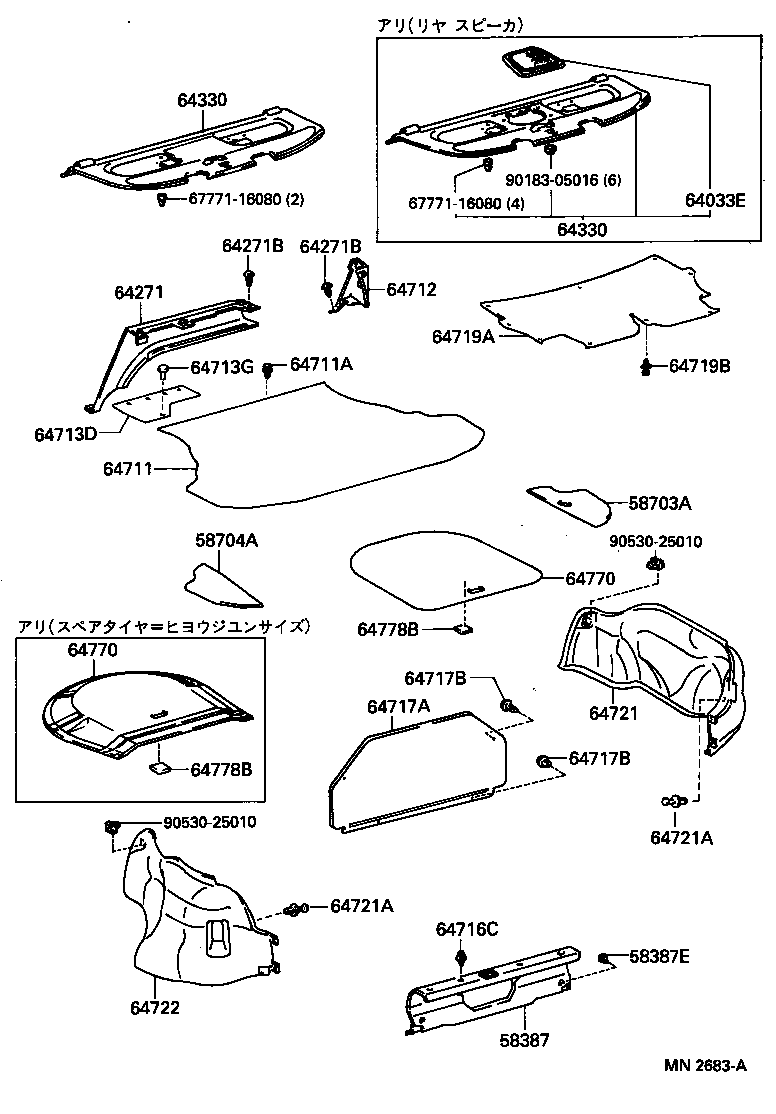

Click highlighted areas on diagram

diagram 58387 58387E 58703A 58704A 64033E 64271 64271B 64271B 64330 64330 64711 64711A 64712 64713D 64713G 64716C 64717A 64717B 64717B 64719A 64719B 64721 64721A 64721A 64722 64770 64770 64778B 64778B 6777116080 6777116080 9018305016 9053025010 9053025010
Part # Description Qty Price
58387 - PLATE, REAR FLOOR FINISH
58387-32050C0

CV4#,SV4#..SED..(ALPX,TOU)

BLACK,TRIM1#

 1
58387E - CLIP(FOR REAR FLOOR FINISH PLATE)
90467-05077C0

CV4#,SV4#..ALPX,TOU

BLACK,TRIM1#

 2
58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58703-32050

CV4#,SV4#

 1
58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
58774-32070

CV4#,SV4#

 1
64033E - GRILLE SUB-ASSY, REAR SPEAKER
64033-30030B0

CV4#,SV40,43..ZX;SV41,42..SED..(ALPX,TOU,ZX)

SHADOW GRAY,TRIM1#

 1
64271 - BOARD, ROOM PARTITION, NO.1
64271-32040C0

CV4#,SV4#..ALPX,TOU

BLACK,TRIM1#

 1
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-07090C4

CV4#,SV4#..ALPX,TOU

BLACK,TRIM1#

 6
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-07090C4

CV4#,SV4#..ALPX,TOU

BLACK,TRIM1#

 6
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-32540B0

CV4#,SV40,43..ZX;SV41,42..ALPX,ZX

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ- & ﾘﾔ ﾜｲﾊﾟ & ﾘﾔ ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1#

 1
64330-32560B0

CV4#,SV40,43..ZX;SV41,42..ALPX,ZX

ｱﾘ(ﾘﾔ ﾜｲﾊﾟ & ﾘﾔ ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1#

 1
64330-32520B0

CV4#,SV4#..ALPX,LUM,XJ,ZX

ｱﾘ(ﾘﾔ ﾜｲﾊﾟ),SHADOW GRAY,TRIM1#

 1
64330-32550B0

CV4#,SV40,43..ZX;SV41,42..ALPX,ZX

ｱﾘ(ﾘﾔ ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1#

 1
64330-32510B0

CV4#,SV4#..ALPX,LUM,XJ,ZX

SHADOW GRAY,TRIM1#

 1
64330-32500B0

CV4#,SV4#..ALPX,ZX

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ- & ﾘﾔ ﾜｲﾊﾟ),SHADOW GRAY,TRIM1#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-32540B0

CV4#,SV40,43..ZX;SV41,42..ALPX,ZX

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ- & ﾘﾔ ﾜｲﾊﾟ & ﾘﾔ ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1#

 1
64330-32560B0

CV4#,SV40,43..ZX;SV41,42..ALPX,ZX

ｱﾘ(ﾘﾔ ﾜｲﾊﾟ & ﾘﾔ ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1#

 1
64330-32520B0

CV4#,SV4#..ALPX,LUM,XJ,ZX

ｱﾘ(ﾘﾔ ﾜｲﾊﾟ),SHADOW GRAY,TRIM1#

 1
64330-32550B0

CV4#,SV40,43..ZX;SV41,42..ALPX,ZX

ｱﾘ(ﾘﾔ ｽﾋﾟ-ｶ),SHADOW GRAY,TRIM1#

 1
64330-32510B0

CV4#,SV4#..ALPX,LUM,XJ,ZX

SHADOW GRAY,TRIM1#

 1
64330-32500B0

CV4#,SV4#..ALPX,ZX

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ- & ﾘﾔ ﾜｲﾊﾟ),SHADOW GRAY,TRIM1#

 1
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-32210C1

CV4#,SV4#..ALPX,TOU

BLACK,TRIM1#

 1
64711A - CLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT)
90467-06150C0

CV4#,SV4#..ALPX,TOU

BLACK,TRIM1#

 4
64712 - COVER, LUGGAGE COMPARTMENT TRIM, RH
64712-32020C0

CV4#,SV4#..ALPX,TOU

BLACK,TRIM1#

 1
64713D - COVER, LUGGAGE COMPARTMENT TRIM, FRONT LH
64713-32020C0

CV4#,SV4#..ALPX,TOU

BLACK,TRIM1#

 1
64713G - CLIP(FOR DECK SIDE TRIM COVER)
90467-0906622

CV4#,SV4#..ALPX,TOU

BLACK,TRIM1#

 1
64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-06150C0

CV4#,SV4#..SED..(ALPX,TOU)

BLACK,TRIM1#

 4
64719A - COVER, LUGGAGE COMPARTMENT DOOR
64719-32010C1

CV4#,SV4#..SED..(ALPX,TOU)

ｶﾝﾚｲﾁ ｼﾖｳ,BLACK,TRIM1#

 1
64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR)
90467-06150C0

CV4#,SV4#..SED..(ALPX,TOU)

ｶﾝﾚｲﾁ ｼﾖｳ,BLACK,TRIM1#

 14
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-32180C1

CV4#,SV4#..SED..(ALPX,TOU)

BLACK,TRIM1#

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-06150C0

CV4#,SV4#..SED..(ALPX,TOU)

BLACK,TRIM1#

 10
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-06150C0

CV4#,SV4#..SED..(ALPX,TOU)

BLACK,TRIM1#

 10
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-32180C1

CV4#,SV4#..SED..(ALPX,TOU)

BLACK,TRIM1#

 1
64770 - COVER ASSY, SPARE WHEEL
64770-32080

CV4#,SV4#

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ = ﾋﾖｳｼﾞﾕﾝｻｲｽﾞ)

 1
64770-32090

CV4#,SV4#

 1
64770 - COVER ASSY, SPARE WHEEL
64770-32080

CV4#,SV4#

ｱﾘ(ｽﾍﾟｱ ﾀｲﾔ = ﾋﾖｳｼﾞﾕﾝｻｲｽﾞ)

 1
64770-32090

CV4#,SV4#

 1
64778B - PROTECTOR, SPARE WHEEL
64778-32020

CV4#,SV4#

 3
64778B - PROTECTOR, SPARE WHEEL
64778-32020

CV4#,SV4#

 3
Common parts
67771-16080
90183-05016
90530-25010
