SV41-AEPMK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )

Click highlighted areas on diagram

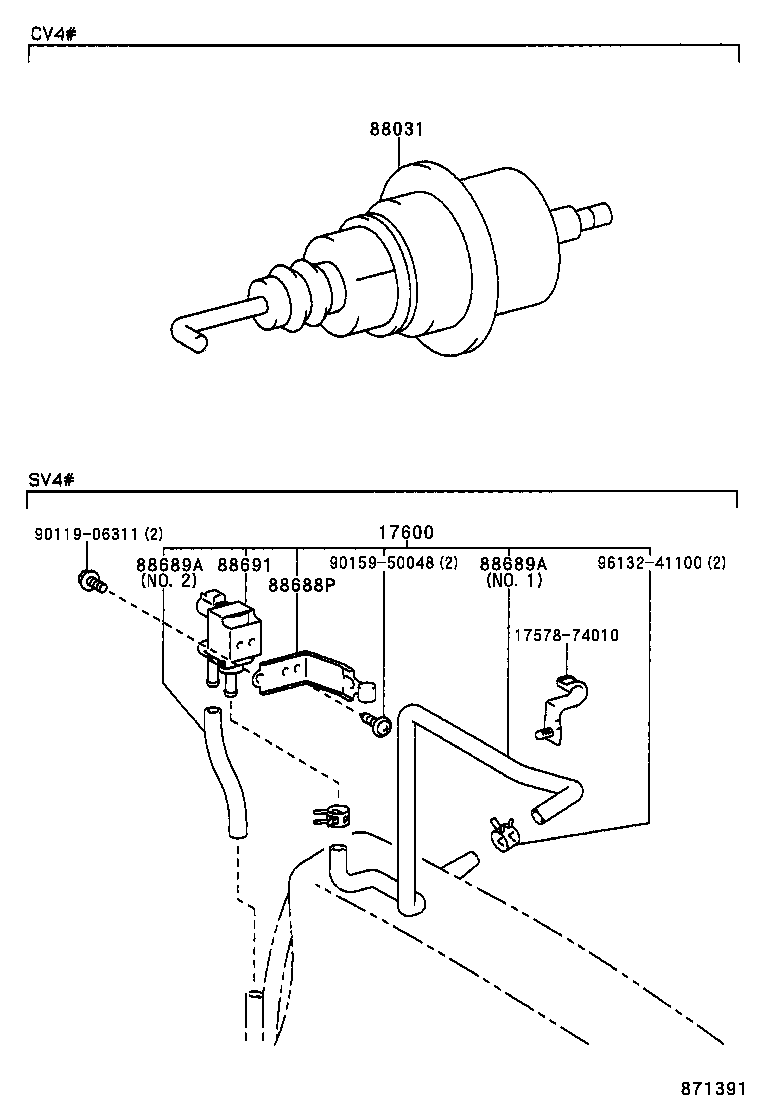

diagram 1757874010 17600 88031 88688P 88689A 88689A 88691 9011906311 9015950048 9613241100
Part # Description Qty Price
17600 - VALVE ASSY, AIR BY-PASS W/HOSE
17600-74220

3SFE,4SFE..SV4#

 1
88688P - BRACKET (FOR MAGNET VALVE)
88688-2D580

SV4#

 1
88689A - HOSE, COOLER VACUUM NO.1
88689-20390

SV4#

長さ=100,NO.2

 1
17347-74060

SV4#

NO.1

 1
88689A - HOSE, COOLER VACUUM NO.1
88689-20390

SV4#

長さ=100,NO.2

 1
17347-74060

SV4#

NO.1

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
90910-13004

SV4#

 1
Common parts
17578-74010
90119-06311
90159-50048
96132-41100
