SV41-AEPMK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )

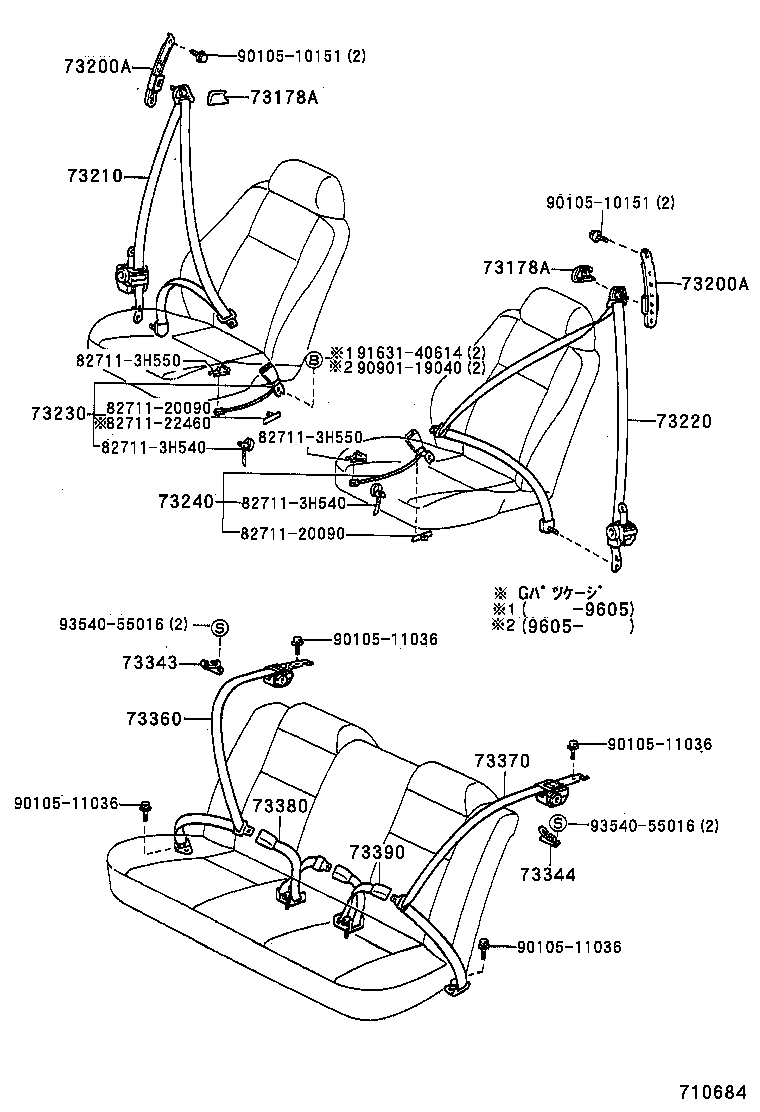

Click highlighted areas on diagram

diagram 73178A 73178A 73200A 73200A 73210 73220 73230 73240 73343 73344 73360 73370 73380 73390 8271120090 8271120090 8271122460 827113H540 827113H540 827113H550 827113H550 9010510151 9010510151 9010511036 9010511036 9010511036 9010511036 9090119040 9163140614 9354055016 9354055016
Part # Description Qty Price
73178A - CAP, SEAT BELT ANCHOR COVER
73178-34010B1

CV4#,SV4#

MD.GRAY,TRIM1#

 2
73178-34010E0

CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX

MD.OAK,TRIM4#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-34010B1

CV4#,SV4#

MD.GRAY,TRIM1#

 2
73178-34010E0

CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX

MD.OAK,TRIM4#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-22070B0

CV4#,SV4#

MD.GRAY,TRIM1#

 2
73200-22070E0

CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX

MD.OAK,TRIM4#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-22070B0

CV4#,SV4#

MD.GRAY,TRIM1#

 2
73200-22070E0

CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX

MD.OAK,TRIM4#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-32340E0

CV4#,SV40,41,43..ETO,LUM,VJ,XJ

OAK,TRIM4#

 1
73210-32340B0

CV4#,SV4#..ALPX,ETO,LUM,TOU,VJ,XJ

SHADOW GRAY,TRIM1#

 1
73210-32341E0

CV4#,SV40,41,43..ETO,LUM,VJ,XJ

OAK,TRIM4#

 1
73210-32360B0

CV4#,SV4#..ALPX,ETO,LUM,TOU,VJ,XJ

SHADOW GRAY,TRIM1#

 1
73210-32360E0

CV4#,SV40,41,43..ETO,LUM,VJ,XJ

OAK,TRIM4#

 1
73210-32341B0

CV4#,SV4#..ALPX,ETO,LUM,TOU,VJ,XJ

SHADOW GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-32340E0

CV4#,SV40,41,43..ETO,LUM,VJ,XJ

OAK,TRIM4#

 1
73220-32340B0

CV4#,SV4#..ALPX,ETO,LUM,TOU,VJ,XJ

SHADOW GRAY,TRIM1#

 1
73220-32360E0

CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX

OAK,TRIM4#

 1
73220-32360B0

CV4#,SV4#

SHADOW GRAY,TRIM1#

 1
73220-32341B0

CV4#,SV4#..ALPX,ETO,LUM,TOU,VJ,XJ

SHADOW GRAY,TRIM1#

 1
73220-32341E0

CV4#,SV40,41,43..ETO,LUM,VJ,XJ

OAK,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-32220E0

CV4#,SV40,41,43..ETO,LUM,VJ,XJ

OAK,TRIM4#

 1
73230-32220B0

CV4#,SV4#..ALPX,ETO,LUM,TOU,VJ,XJ

SHADOW GRAY,TRIM1#

 1
73230-32260E0

CV4#,SV40,41,43..ETO,LUM,VJ,XJ

OAK,TRIM4#

 1
73230-32260B0

CV4#,SV4#..ALPX,ETO,LUM,TOU,VJ,XJ

SHADOW GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-32160E0

CV4#,SV40,41,43..ETO,LUM,VJ,XJ

OAK,TRIM4#

 1
73230-32160B1

CV4#,SV4#..ALPX,ETO,LUM,TOU,VJ,XJ

SHADOW GRAY,TRIM1#

 1
73230-32280B0

CV4#,SV4#

SHADOW GRAY,TRIM1#

 1
73230-32280E0

CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX

OAK,TRIM4#

 1
73343 - GUIDE, REAR SEAT SHOULDER BELT, RH
73343-20020E2

CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX

OAK,TRIM4#

 1
73343-20020B1

CV4#,SV4#

SHADOW GRAY,TRIM1#

 1
73344 - GUIDE, REAR SEAT SHOULDER BELT, LH
73344-20020E2

CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX

OAK,TRIM4#

 1
73344-20020B1

CV4#,SV4#

SHADOW GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-32390E0

CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX

OAK,TRIM4#

 1
73360-32380B0

CV4#,SV4#

SHADOW GRAY,TRIM1#

 1
73360-32390B0

CV4#,SV4#

SHADOW GRAY,TRIM1#

 1
73360-32380E0

CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX

OAK,TRIM4#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-32380B0

CV4#,SV4#

SHADOW GRAY,TRIM1#

 1
73360-32390E0

CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX

OAK,TRIM4#

 1
73360-32380E0

CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX

OAK,TRIM4#

 1
73360-32390B0

CV4#,SV4#

SHADOW GRAY,TRIM1#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73470-32050B0

CV4#,SV4#..SED

SHADOW GRAY,TRIM1#

 1
73470-32070B0

CV4#,SV4#..SED

SHADOW GRAY,TRIM1#

 1
73470-32050E0

CV4#,SV4#..LUM,XJ,ZX

OAK,TRIM4#

 1
73470-32070E0

CV4#,SV4#..LUM,XJ,ZX

OAK,TRIM4#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73480-32050E0

CV4#,SV4#..LUM,XJ,ZX

OAK,TRIM4#

 1
73480-32070B0

CV4#,SV4#..SED

SHADOW GRAY,TRIM1#

 1
73480-32070E0

CV4#,SV4#..LUM,XJ,ZX

OAK,TRIM4#

 1
73480-32050B0

CV4#,SV4#..SED

SHADOW GRAY,TRIM1#

 1
Common parts
82711-20090
82711-22460
82711-3H540
82711-3H550
90105-10151
90105-11036
90901-19040
91631-40614
93540-55016
