SV41-AEPMK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )SED

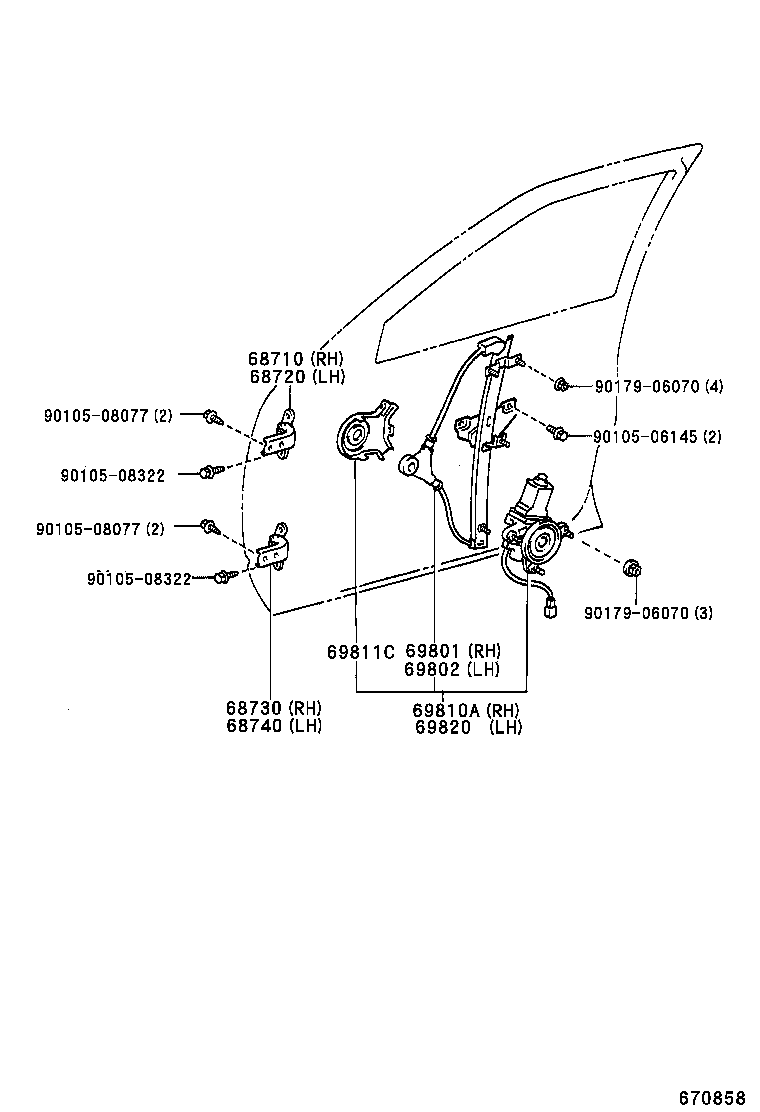

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69801 69802 69810A 69811C 69820 9010506145 9010508077 9010508077 9010508322 9010508322 9017906070 9017906070
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-32060

CV4#,SV4#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-32060

CV4#,SV4#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68720-32060

CV4#,SV4#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-32060

CV4#,SV4#

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-32080

CV4#,SV4#..SED

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-32080

CV4#,SV4#..SED

 1
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-32130

CV4#,SV4#..SED

 1
69810-32160

CV4#,SV4#..SED

 1
69811C - PLATE, FRONT DOOR POWER WINDOW REGULATOR BASE
69811-22120

CV4#,SV4#..SED

右側

 1
69812-22030

CV4#,SV4#..SED

左側

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-32130

CV4#,SV4#..SED

 1
Common parts
90105-06145
90105-08077
90105-08322
90179-06070
