SV41-AEPMK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )

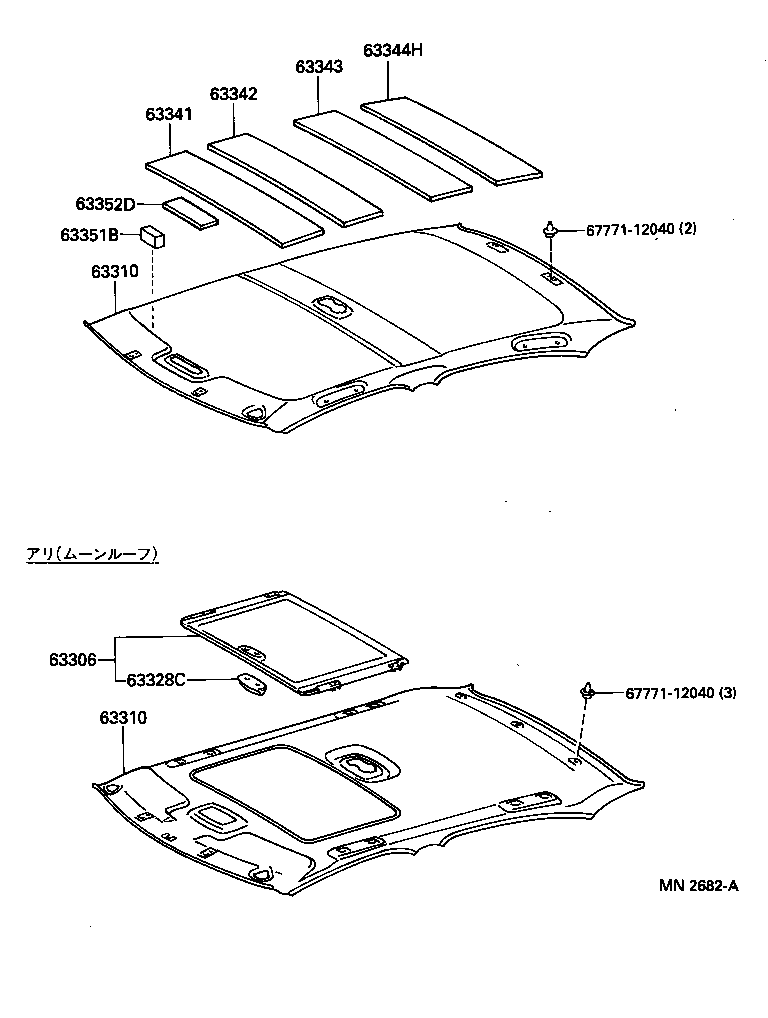

Click highlighted areas on diagram

diagram 63306 63310 63310 63328C 63341 63342 63343 63344H 63351B 63352D 6777112040 6777112040
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-32460B0

CV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)

LIGHT GRAY,TRIM1#

 1
63310-32460E0

CV4#,SV4#..LUM,ZX

MEDIUM OAK,TRIM4#

 1
63310 - HEADLINING ASSY, ROOF
63310-32460B0

CV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)

LIGHT GRAY,TRIM1#

 1
63310-32460E0

CV4#,SV4#..LUM,ZX

MEDIUM OAK,TRIM4#

 1
63341 - PAD, ROOF SILENCER, NO.1
63343-32070

CV4#,SV4#

 1
63342 - PAD, ROOF SILENCER, NO.2
63343-32070

CV4#,SV4#

 1
63343 - PAD, ROOF SILENCER, NO.3
63343-32070

CV4#,SV4#

 1
63344H - PAD, ROOF SILENCER, NO.4
63343-32070

CV4#,SV4#

 1
63351B - PAD, ROOF HEADLINING
63351-20040

CV4#,SV4#

 1
Common parts
67771-12040
