SV41-AEPMK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )SED

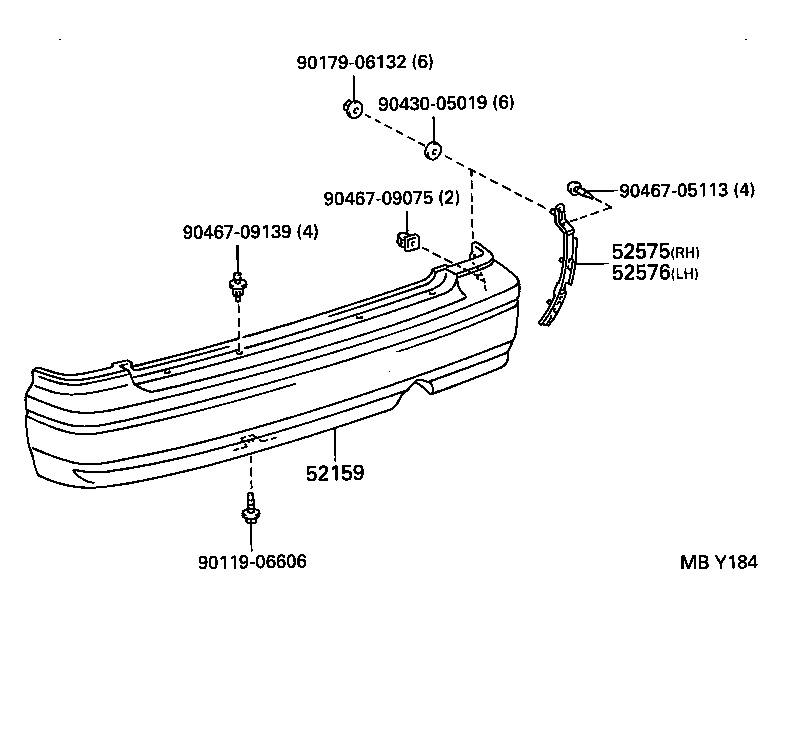

Click highlighted areas on diagram

diagram 52159 52575 52576 9011906606 9017906132 9043005019 9046705113 9046709075 9046709139
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-32340B0

CV4#,SV4#..SED

LT.GRAIGE ME.,1A2

 1
52159-32340J0

CV4#,SV4#..SED

DK.BLUE MM,8G5

 1
52159-32340A0

CV4#,SV4#..SED

SUPER WHITE 2,040

 1
52159-32340G0

CV4#,SV4#..SED

DK GREEN MICA,6M1

 1
52159-32340J1

CV4#,SV4#..SED

DK.BLUE MC.GR.,8L8

 1
52159-32340B2

CV4#,SV4#..SED

SILVER ME,199

 1
52159-32350B1

CV4#,SV4#..SED

DK BLUISH GRAY MICA,29Y

 1
52159-32340E0

CV4#,SV4#..SED

FLAXEN MM,4M7

 1
52159-32350A1

CV4#,SV4#..SED

WARM GRAY PM,22Y

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-32080

CV4#,SV4#..SED

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-32090

CV4#,SV4#..SED

 1
Common parts
90119-06606
90179-06132
90430-05019
90467-05113
90467-09075
90467-09139
