SV41-AEPMK (1994)
Toyota Camry/Vista
Production
Jun 1994
-
Jun 1998
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9406- )3SFE,4SFE..ATM

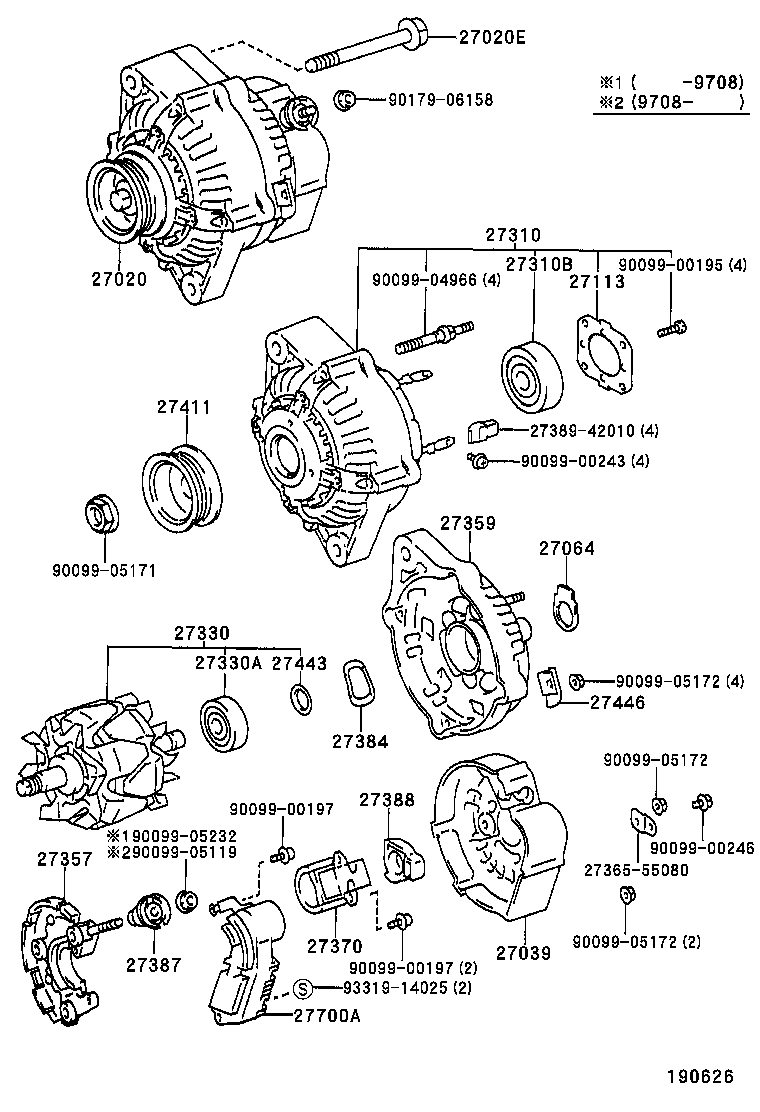

Click highlighted areas on diagram
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-74410 |
3SFE,4SFE..SV4#..ATM 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10249 |
3SFE,4SFE..SV4# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-55080 |
3SFE,4SFE..SV4#..ATM |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
3CT,3SFE,4SFE..CV43,SV4#..ATM |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-42010 |
3CT,3SFE,4SFE..CV43,SV4#..ATM |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-74120 |
3SFE,4SFE..SV4#..ATM |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
3CT,3SFE,4SFE..CV43,SV4#..ATM |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-76030 |
3CT,3SFE,4SFE..CV43,SV4#..ATM |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
3CT,3SFE,4SFE..CV4#,SV4# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-55080 |
3CT,3SFE,4SFE..CV43,SV4#..ATM |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-74330 |
3SFE,4SFE..SV4#..ATM |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
3CT,3SFE,4SFE..CV43,SV4#..ATM |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
3CT,3SFE,4SFE..CV43,SV4#..ATM |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
3CT,3SFE,4SFE..CV43,SV4#..ATM |
1 | ||
| 27387-42020 |
3CT,3SFE,4SFE..CV43,SV4#..ATM |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
3CT,3SFE,4SFE..CV43,SV4#..ATM |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-42030 |
3SFE,4SFE..SV4#..ATM |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
3CT,3SFE,4SFE..CV4#,SV4# |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-74250 |
3SFE,4SFE..SV4# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-74040 |
3SFE,4SFE..SV4# |
1 | ||
| Common parts | ||||
| 27365-55080 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
