SV41-AEPMK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

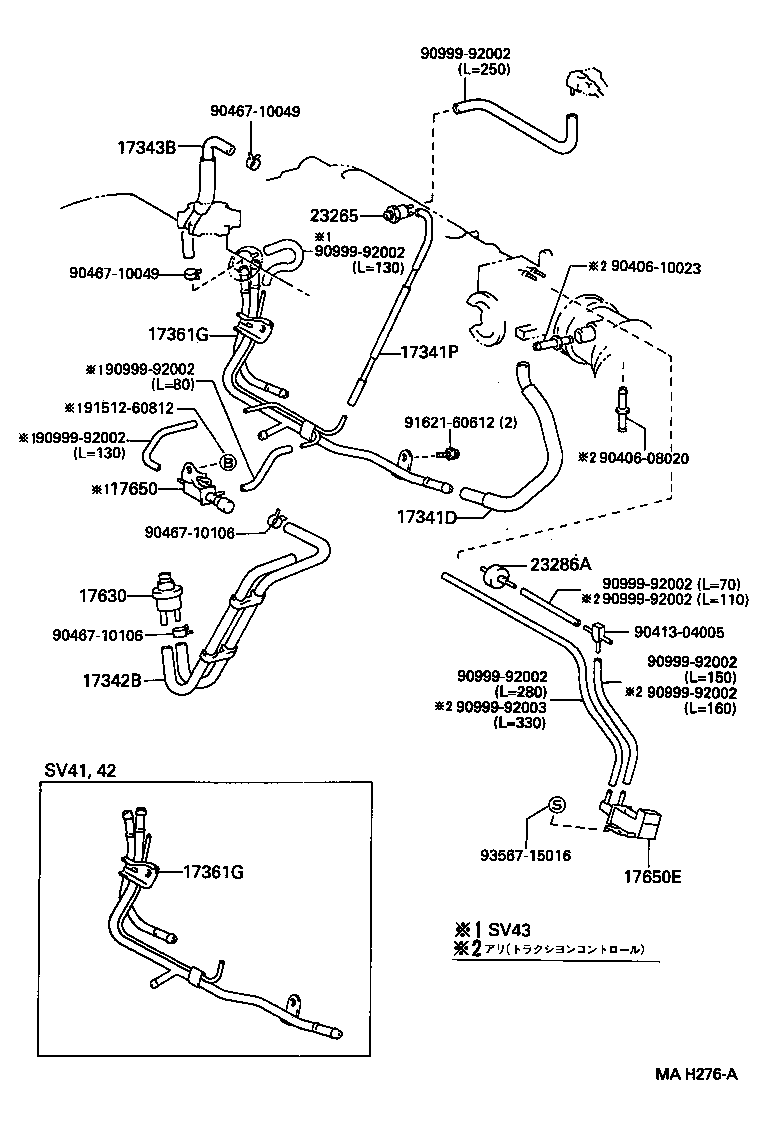

(9406-9605)3SFE

Click highlighted areas on diagram

diagram 17341D 17341P 17342B 17343B 17361G 17361G 17630 17650 17650E 23265 23286A 9040608020 9040610023 9041304005 9046710049 9046710049 9046710106 9046710106 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9151260812 9162160612 9356715016
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74340

3SFE,4SFE..SV4#

 1
17341P - HOSE, AIR
17341-74430

3SFE,4SFE..SV4#

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17343-74100

3SFE,4SFE..SV4#

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-74160

3SFE,4SFE..SV4#

 1
17343-74141

3SFE,4SFE..SV4#

 1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74150

3SFE,4SFE..SV40,41,42

 1
17361-74180

3SFE,4SFE..SV4#

 1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74150

3SFE,4SFE..SV40,41,42

 1
17361-74180

3SFE,4SFE..SV4#

 1
17630 - VALVE ASSY, AIR CONTROL
17630-70020

3SFE,4SFE..SV4#

 1
17650E - VALVE, VACUUM SWITCHING
90910-12120

3SFE,4SFE..SV4#

 1
23265 - FILTER, GAS, NO.1
90917-11037

3SFE,4SFE..SV4#

 1
90917-11022

3SFE,4SFE..SV4#

 1
90917-11023

3SFE,4SFE..SV4#

 1
23286A - VALVE, CHECK, NO.2
90917-10080

3SFE,4SFE..SV4#

 1
Common parts
90406-08020
90406-10023
90413-04005
90467-10049
90467-10106
90999-92002
90999-92003
91512-60812
91621-60612
93567-15016

(9605- )3SFE,4SFE

Click highlighted areas on diagram

diagram 17341D 17342B 17343B 17361G 17630 17650G 23265 25860 9046710049 9046710049 9046710106 9046710106 9099992002 9099992002 9099992002 9162160612
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74340

3SFE,4SFE..SV4#

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17343-74100

3SFE,4SFE..SV4#

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-74160

3SFE,4SFE..SV4#

 1
17343-74141

3SFE,4SFE..SV4#

 1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74150

3SFE,4SFE..SV40,41,42

 1
17361-74180

3SFE,4SFE..SV4#

 1
17630 - VALVE ASSY, AIR CONTROL
17630-70020

3SFE,4SFE..SV4#

 1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12170

3SFE,4SFE..SV4#

 1
23265 - FILTER, GAS, NO.1
90917-11037

3SFE,4SFE..SV4#

 1
90917-11022

3SFE,4SFE..SV4#

 1
90917-11023

3SFE,4SFE..SV4#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-16200

3SFE,4SFE..SV4#

 1
Common parts
90467-10049
90467-10106
90999-92002
91621-60612
