SV41-AEPMK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )3SFE..SV41,42

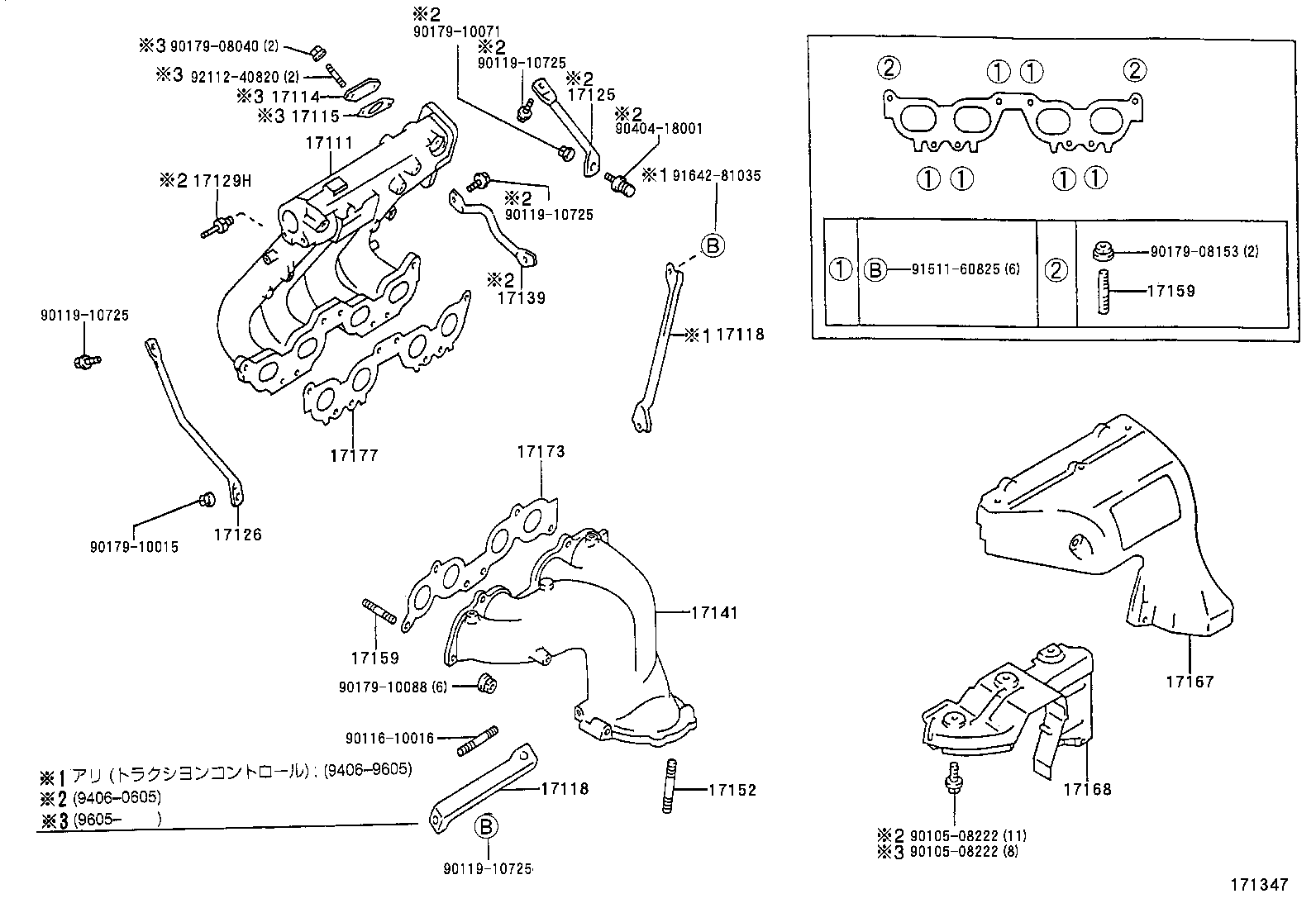

Click highlighted areas on diagram

diagram 17111 17114 17115 17118 17118 17125 17126 17129H 17139 17141 17152 17159 17159 17167 17168 17173 17177 9010508222 9010508222 9011610016 9011910725 9011910725 9011910725 9011910725 9017908040 9017908153 9017910015 9017910071 9017910088 9040418001 9151160825 9164281035 9211240820
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-74240

3SFE,4SFE..SV4#

 1
17101-74310

3SFE,4SFE..SV4#

 1
17114 - PLATE, INTAKE MANIFOLD HOLE COVER
25617-74020

3SFE,4SFE..SV4#

 1
17115 - GASKET, INTAKE MANIFOLD HOLE COVER
25627-74011

3SFE,4SFE..SV4#

 1
17118 - STAY, MANIFOLD
17118-74040

3SFE..SV41,42

 1
17118 - STAY, MANIFOLD
17118-74040

3SFE..SV41,42

 1
17125 - STAY, SURGE TANK, NO.1
17125-74100

3SFE,4SFE..SV4#

 1
17126 - STAY, SURGE TANK, NO.2
17126-74030

3SFE..SV41,42

 1
17129H - UNION, NO.4
90404-51026

3SFE,4SFE..SV4#

 1
17139 - STAY, MANIFOLD, NO.2
17139-74151

3SFE,4SFE..SV4#

 1
17141 - MANIFOLD, EXHAUST
17141-74120

3SFE..SV41,42

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

3SFE,4SFE..SV4#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063

3SFE,4SFE..SV4#

EXHAUST SIDE

 6
92122-60822

3SFE,4SFE..SV4#

INTAKE SIDE

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063

3SFE,4SFE..SV4#

EXHAUST SIDE

 6
92122-60822

3SFE,4SFE..SV4#

INTAKE SIDE

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-74171

3SFE..SV41,42

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-74060

3SFE..SV41,42

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-74040

3SFE,4SFE..SV4#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-74070

3SFE,4SFE..SV4#

 1
Common parts
90105-08222
90116-10016
90119-10725
90179-08040
90179-08153
90179-10015
90179-10071
90179-10088
90404-18001
91511-60825
91642-81035
92112-40820
