SV40-BTPMK (1994)
Toyota Camry/Vista

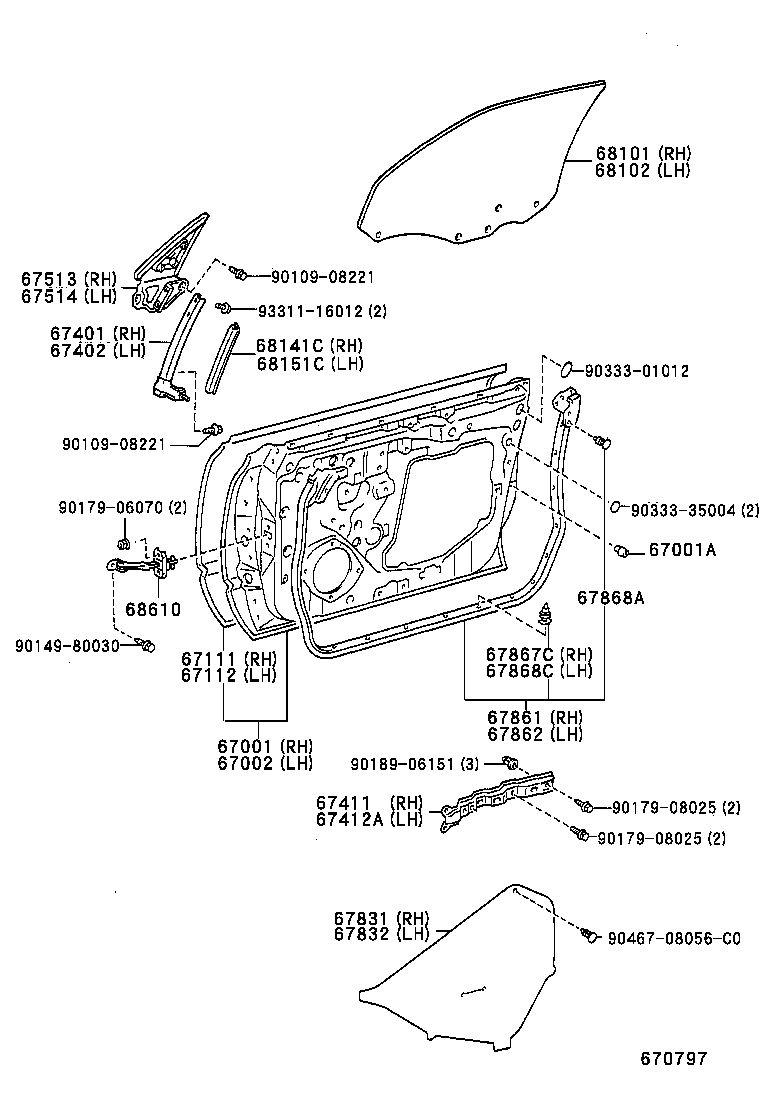

ILLUST NO. 2 OF 2(9406- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-32350 |
CV4#,SV4#..HT |
1 | ||
| 67001-32351 |
CV4#,SV4#..HT |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09091 |
CV4#,SV4#..HT |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-32300 |
CV4#,SV4#..HT |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-32120 |
CV4#,SV4#..HT |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-32120 |
CV4#,SV4#..HT |
1 | ||
| 67401 - BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH | ||||
| 67401-32140 |
CV4#,SV4#..HT |
1 | ||
| 67402 - BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH | ||||
| 67402-32140 |
CV4#,SV4#..HT |
1 | ||
| 67411 - FRAME, FRONT DOOR WINDOW, FRONT UPPER RH | ||||
| 67411-32070 |
CV4#,SV4#..HT |
1 | ||
| 67412A - FRAME, FRONT DOOR WINDOW, FRONT UPPER LH | ||||
| 67412-32070 |
CV4#,SV4#..HT |
1 | ||
| 67513 - BRACKET, FRONT DOOR MIRROR, RH | ||||
| 67513-32041 |
CV4#,SV4#..HT |
1 | ||
| 67513-32040 |
CV4#,SV4#..HT |
1 | ||
| 67514 - BRACKET, FRONT DOOR MIRROR, LH | ||||
| 67514-32040 |
CV4#,SV4#..HT |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-32150 |
CV4#,SV4#..HT |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-32130 |
CV4#,SV4#..HT |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-32160 |
CV4#,SV4#..HT |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-32160 |
CV4#,SV4#..HT |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
CV4#,SV4#..HT |
18 | ||
| 67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67869-30020 |
CV4#,SV4#..HT |
10 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
CV4#,SV4#..HT |
18 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-32210 |
CV4#,SV4#..HT *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-32160 |
CV4#,SV4#..HT *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-32170 |
CV4#,SV4#..HT *TT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-32170 |
CV4#,SV4#..HT *TT,厚さ=5.0,ﾌﾞﾙｰ |
1 | ||
| 68102-32210 |
CV4#,SV4#..HT *UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-32160 |
CV4#,SV4#..HT *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-32120 |
CV4#,SV4#..HT |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68141-32120 |
CV4#,SV4#..HT |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68620-32021 |
CV4#,SV4# 左側 |
1 | ||
| 68620-32020 |
CV40,SV4# 左側 |
1 | ||
| 68610-32090 |
CV40,SV4# 右側 |
1 | ||
| 68610-32091 |
CV4#,SV4# 右側 |
1 | ||
| Common parts | ||||
| 90109-08221 | ||||
| 90149-80030 | ||||
| 90179-06070 | ||||
| 90179-08025 | ||||
| 90189-06151 | ||||
| 90333-01012 | ||||
| 90333-35004 | ||||
| 90467-08056C0 | ||||
| 93311-16012 | ||||

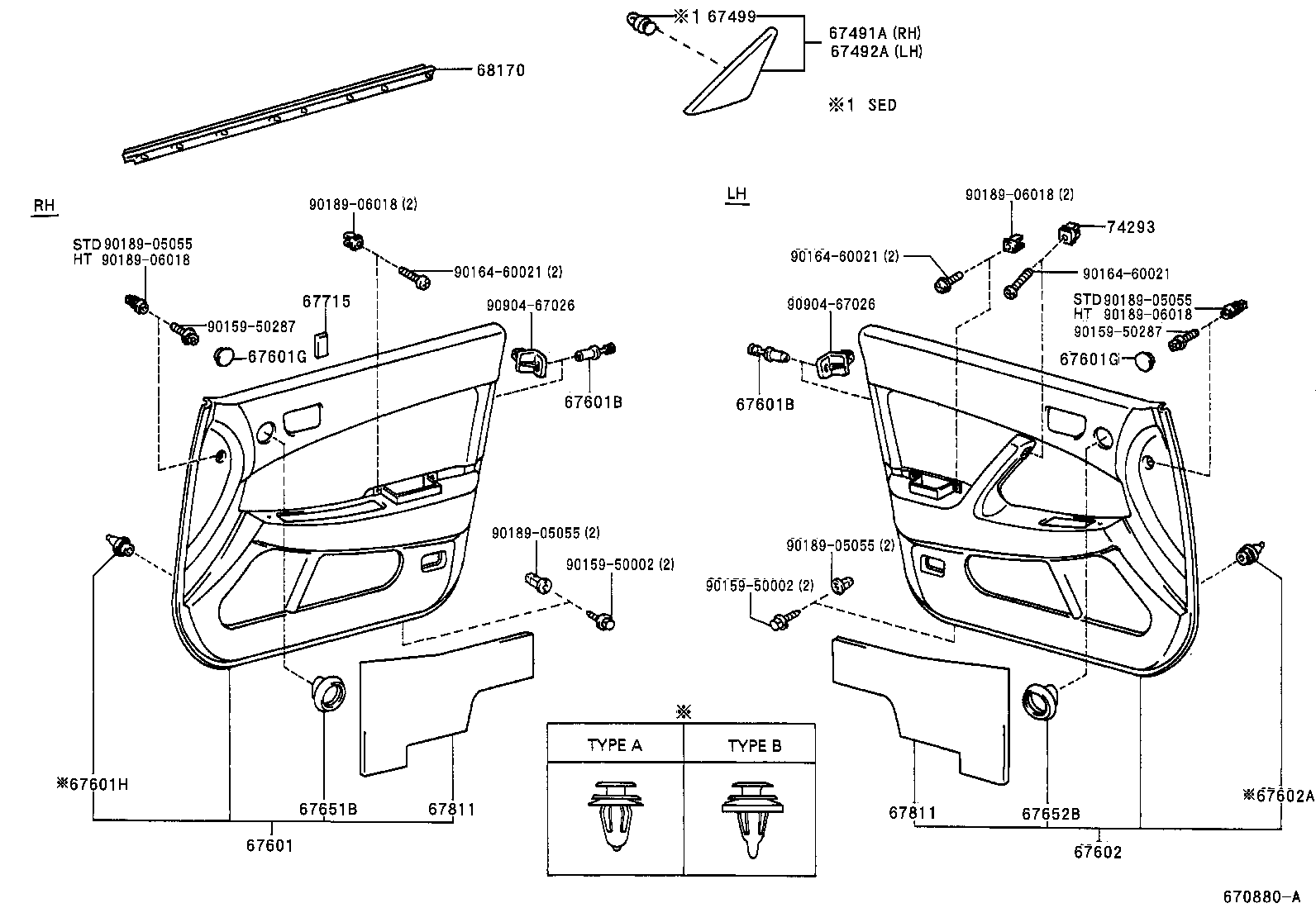

ILLUST NO. 1 OF 2(9406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-32140 |
CV4#,SV4#..HT |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-32140 |
CV4#,SV4#..HT |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-3H120E0 |
CV4#,SV40,41,43..ETO,VJ OAK,TRIM4# |
1 | ||
| 67610-3H120B0 |
CV4#,SV40,41,43..ETO,VJ SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3H270E0 |
SV40,43..ETO ｴﾄﾜ-ﾙV *(A),OAK,TRIM4# |
1 | ||
| 67610-3H180E0 |
SV40,43..ETO ｴﾄﾜ-ﾙV,OAK,TRIM4# |
1 | ||
| 67610-3H270B0 |
SV40,43..ETO ｴﾄﾜ-ﾙV *(A),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3H240E0 |
CV4#,SV40,41,43..ETO,VJ OAK,TRIM4# |
1 | ||
| 67610-3H240B0 |
CV4#,SV40,41,43..ETO,VJ SHADOW GRAY,TRIM1# |
1 | ||
| 67610-3H150B0 |
SV40,43..ETO ｴﾄﾜ-ﾙV,SHADOW GRAY,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07066E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
2 | ||
| 90467-07066P0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
2 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07066E0 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
2 | ||
| 90467-07066P0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
2 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01800E1 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
2 | ||
| 90950-01800B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
2 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01800E1 |
CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX OAK,TRIM4# |
2 | ||
| 90950-01800B0 |
CV4#,SV4# SHADOW GRAY,TRIM1# |
2 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-32140 |
CV4#,SV4#..HT |
3 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3H780E0 |
CV4#,SV40,41,43..ETO,VJ OAK,TRIM4# |
1 | ||
| 67620-3H840E0 |
SV40,43..ETO ｴﾄﾜ-ﾙV,OAK,TRIM4# |
1 | ||
| 67050-32090E0 |
SV40,43..ETO ｴﾄﾜ-ﾙV *(A),OAK,TRIM4# |
1 | ||
| 67050-32090B0 |
SV40,43..ETO ｴﾄﾜ-ﾙV *(A),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3H810B0 |
SV40,43..ETO ｴﾄﾜ-ﾙV,SHADOW GRAY,TRIM1# |
1 | ||
| 67620-3H780B0 |
CV4#,SV40,41,43..ETO,VJ SHADOW GRAY,TRIM1# |
1 | ||
| 67050-32060B0 |
CV4#,SV40,41,43..ETO,VJ SHADOW GRAY,TRIM1# |
1 | ||
| 67050-32060E0 |
CV4#,SV40,41,43..ETO,VJ OAK,TRIM4# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-32140 |
CV4#,SV4#..HT |
3 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-32040 |
CV4#,SV4# |
2 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67811-32040 |
CV4#,SV4# |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-32100 |
CV4#,SV4#..HT 右側 |
1 | ||
| 68220-32110 |
CV4#,SV4#..HT 左側 |
1 | ||
| 74293 - PLATE, FRONT DOOR ARMREST, NO.1 | ||||
| 74294-32010 |
CV4#,SV4# |
1 | ||
| Common parts | ||||
| 90159-50002 | ||||
| 90159-50287 | ||||
| 90164-60021 | ||||
| 90189-05055 | ||||
| 90189-06018 | ||||
| 90904-67026 | ||||
