SV40-BTPMK (1994)
Toyota Camry/Vista
Production
Jun 1994
-
Jun 1998
Engine
4SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9406- )4SFE

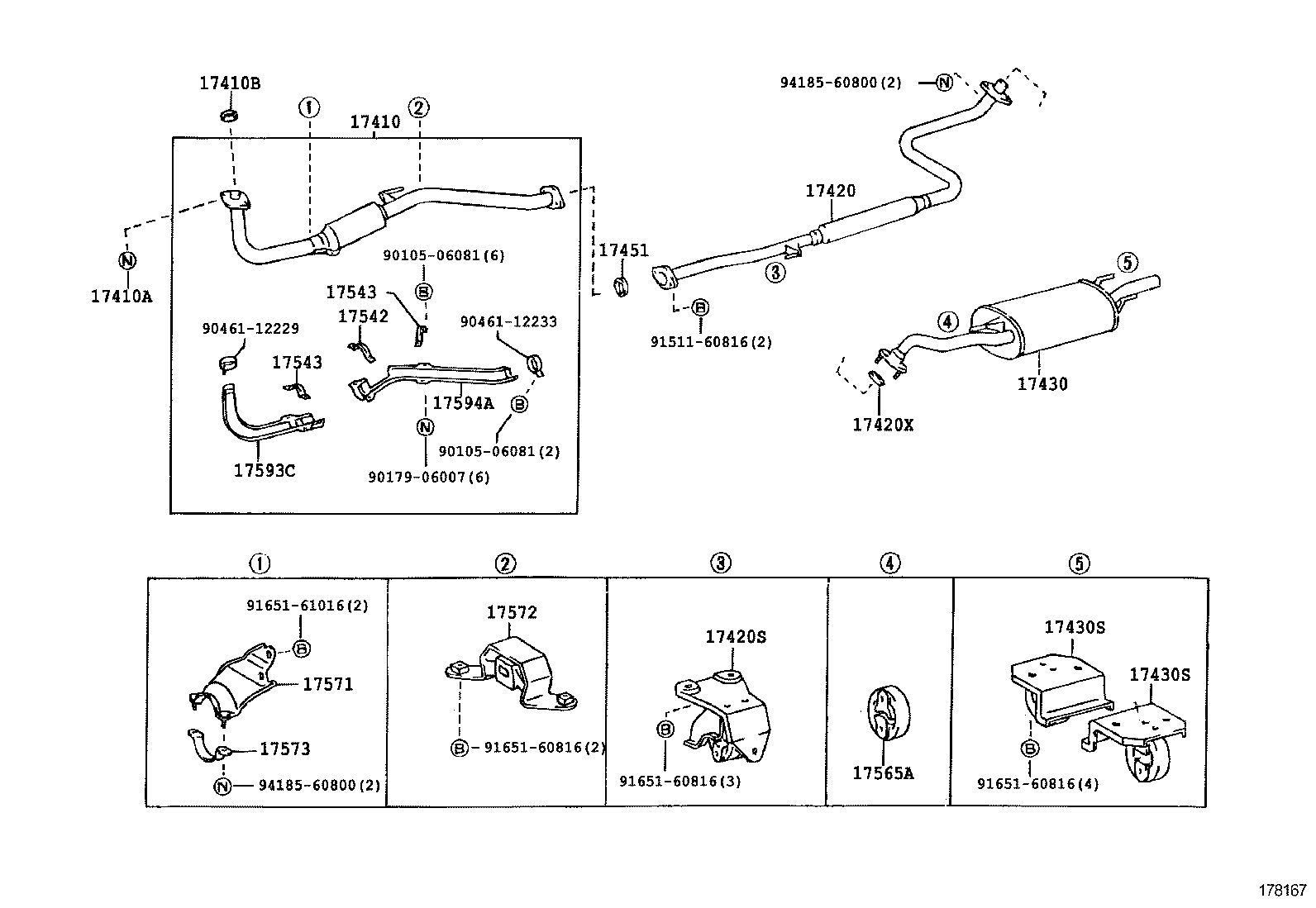

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-7A390 |
4SFE..SV40 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
3CT,3SFE,4SFE..CV4#,SV4# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06045 |
4SFE..SV40 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-74840 |
4SFE..SV40 |
1 | ||
| 17420S - BRACKET, EXHAUST PIPE CENTER, REAR | ||||
| 17507-74050 |
3CT,4SFE..CV40,SV40 |
1 | ||
| 17507-74050 |
3CT,3SFE,4SFE..CV40,SV40,41,42 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06039 |
4SFE..SV40 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-7A540 |
4SFE..SV40 |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17509-74100 |
3CT,3SFE,4SFE..CV4#,SV4# |
2 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17509-74100 |
3CT,3SFE,4SFE..CV4#,SV4# |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06039 |
3CT,4SFE..CV43,SV40 |
1 | ||
| 17542 - STAY, EXHAUST PIPE PROTECTOR, NO.2 | ||||
| 17542-74030 |
4SFE..SV40 W/BOLT |
1 | ||
| 17542-11020 |
4SFE..SV40 |
1 | ||
| 17543 - STAY, EXHAUST PIPE PROTECTOR, NO.3 | ||||
| 17544-14010 |
4SFE..SV40 W/BOLT |
2 | ||
| 17543-63010 |
4SFE..SV40 |
2 | ||
| 17543 - STAY, EXHAUST PIPE PROTECTOR, NO.3 | ||||
| 17544-14010 |
4SFE..SV40 W/BOLT |
2 | ||
| 17543-63010 |
4SFE..SV40 |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-46010 |
3CT,3SFE,4SFE..CV4#,SV4# |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-74420 |
4SFE..SV40 |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-74080 |
3SFE,4SFE..SV4# |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-74180 |
4SFE..SV40 |
1 | ||
| 17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1 | ||||
| 17593-74660 |
4SFE..SV40 |
1 | ||
| 17594A - PROTECTOR, EXHAUST PIPE, LOWER NO.2 | ||||
| 17594-74380 |
4SFE..SV40 |
1 | ||
| Common parts | ||||
| 90105-06081 | ||||
| 90179-06007 | ||||
| 90461-12229 | ||||
| 90461-12233 | ||||
| 91511-60816 | ||||
| 91651-60816 | ||||
| 91651-61016 | ||||
| 94185-60800 | ||||
