SV40-BTPDK (1994)
Toyota Camry/Vista
Production
Jun 1994
-
Jun 1998
Engine
4SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9406- )3SFE,4SFE..SV40,41,42

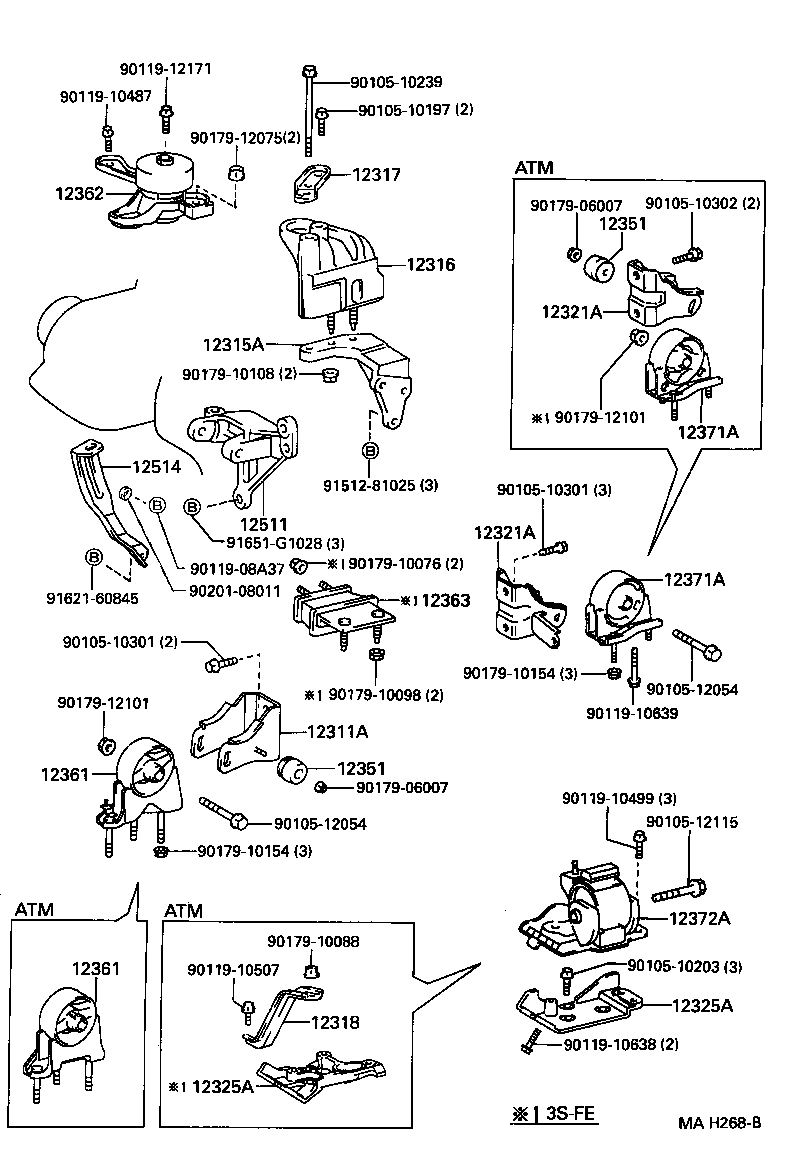

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-74030 |
3SFE,4SFE..SV40,41,42 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-74061 |
3SFE,4SFE..SV40,41,42 |
1 | ||
| 12315-74060 |
3SFE,4SFE..SV40,41,42 |
1 | ||
| 12316 - BRACKET, ENGINE MOUNTING, NO.2 RH | ||||
| 12316-74020 |
3SFE,4SFE..SV4# |
1 | ||
| 12317 - STAY, ENGINE MOUNTING, RH | ||||
| 12317-74060 |
3SFE,4SFE..SV40,41,42 |
1 | ||
| 12318 - STAY, ENGINE MOUNTING, LH | ||||
| 12318-64090 |
3SFE,4SFE..SV40,41,42..ATM |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-74360 |
4SFE..SV40..ATM |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-74360 |
4SFE..SV40..ATM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-74220 |
4SFE..SV40..ATM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-74220 |
4SFE..SV40..ATM |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-64020 |
3SFE,4SFE..SV40,41,42..ATM ﾌﾛﾝﾄ |
1 | ||
| 12351-63010 |
3SFE,4SFE..SV40,41,42..ATM ﾘﾔ |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-64020 |
3SFE,4SFE..SV40,41,42..ATM ﾌﾛﾝﾄ |
1 | ||
| 12351-63010 |
3SFE,4SFE..SV40,41,42..ATM ﾘﾔ |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-62060 |
3SFE,4SFE..SV4#..ATM |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-62060 |
3SFE,4SFE..SV4#..ATM |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-74261 |
3SFE,4SFE..SV40,41,42 |
1 | ||
| 12362-74260 |
3SFE,4SFE..SV40,41,42 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-74480 |
4SFE..SV40..ATM |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-74480 |
4SFE..SV40..ATM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-74420 |
4SFE..SV40..ATM |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-74051 |
3SFE,4SFE..SV4# |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 12514-74011 |
3SFE,4SFE..SV4# |
1 | ||
| 12514-74051 |
3SFE,4SFE..SV4# |
1 | ||
| 12514-74050 |
3SFE,4SFE..SV4# |
1 | ||
| Common parts | ||||
| 90105-10197 | ||||
| 90105-10203 | ||||
| 90105-10239 | ||||
| 90105-10301 | ||||
| 90105-10302 | ||||
| 90105-12054 | ||||
| 90105-12115 | ||||
| 90119-08A37 | ||||
| 90119-10487 | ||||
| 90119-10499 | ||||
| 90119-10507 | ||||
| 90119-10638 | ||||
| 90119-10639 | ||||
| 90119-12171 | ||||
| 90179-06007 | ||||
| 90179-10076 | ||||
| 90179-10088 | ||||
| 90179-10098 | ||||
| 90179-10108 | ||||
| 90179-10154 | ||||
| 90179-12075 | ||||
| 90179-12101 | ||||
| 90201-08011 | ||||
| 91512-81025 | ||||
| 91621-60845 | ||||
| 91651-G1028 | ||||
