SV40-BTMMK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )SV4#

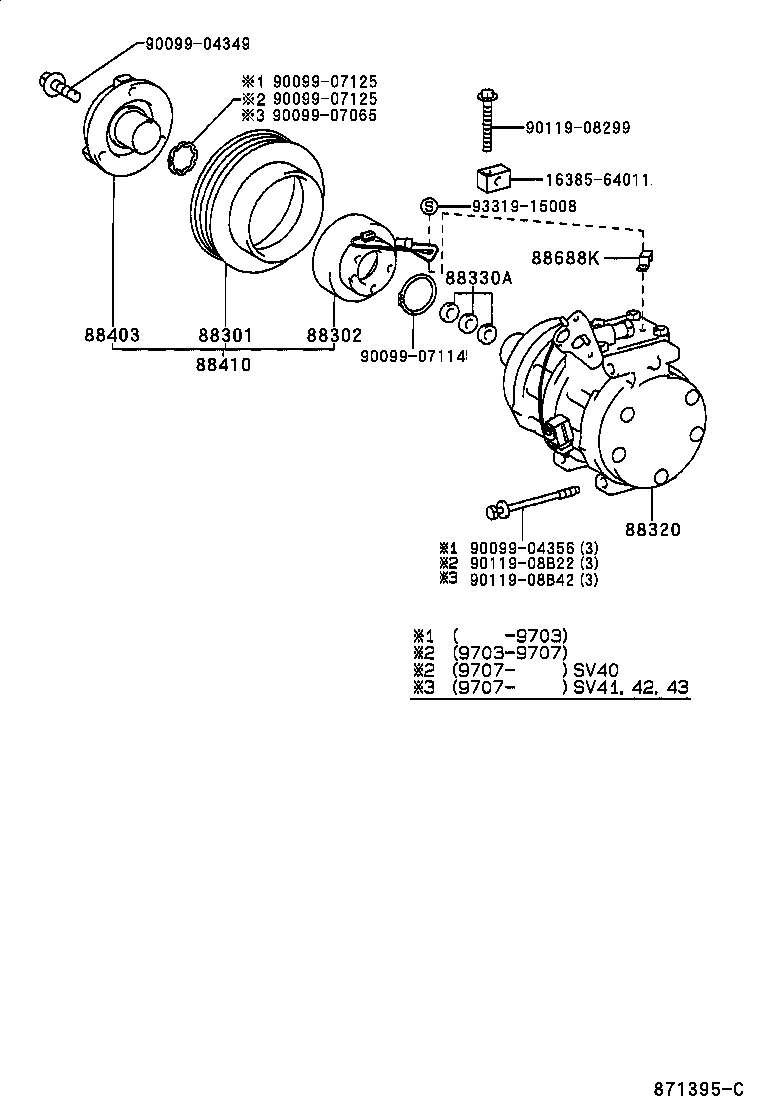

Click highlighted areas on diagram

diagram 1638564011 88301 88302 88320 88330A 88403 88410 88688K 9009904349 9009904356 9009907065 9009907114 9009907125 9009907125 9011908299 9011908B22 9011908B42 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-32060

SV40

 1
88412-32060

SV4#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-2B020

SV4#

 1
88411-2B020

SV40

 1
88320 - COMPRESSOR ASSY, COOLER
88320-32190

SV40

 1
88320-32190

SV4#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

CV4#,SV4#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-30290

CV4#,SV40

 1
88403-30290

CV4#,SV4#

 1
88410 - CLUTCH ASSY, MAGNET
88410-32130

SV40

 1
88410-32130

SV4#

 1
88688K - BRACKET, COOLER COMPRESSOR
88569-32090

SV4#

 1
88569-32090

SV40

 1
Common parts
16385-64011
90099-04349
90099-04356
90099-07065
90099-07114
90099-07125
90119-08299
90119-08B22
90119-08B42
93319-15008
