SV40-BTMMK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )

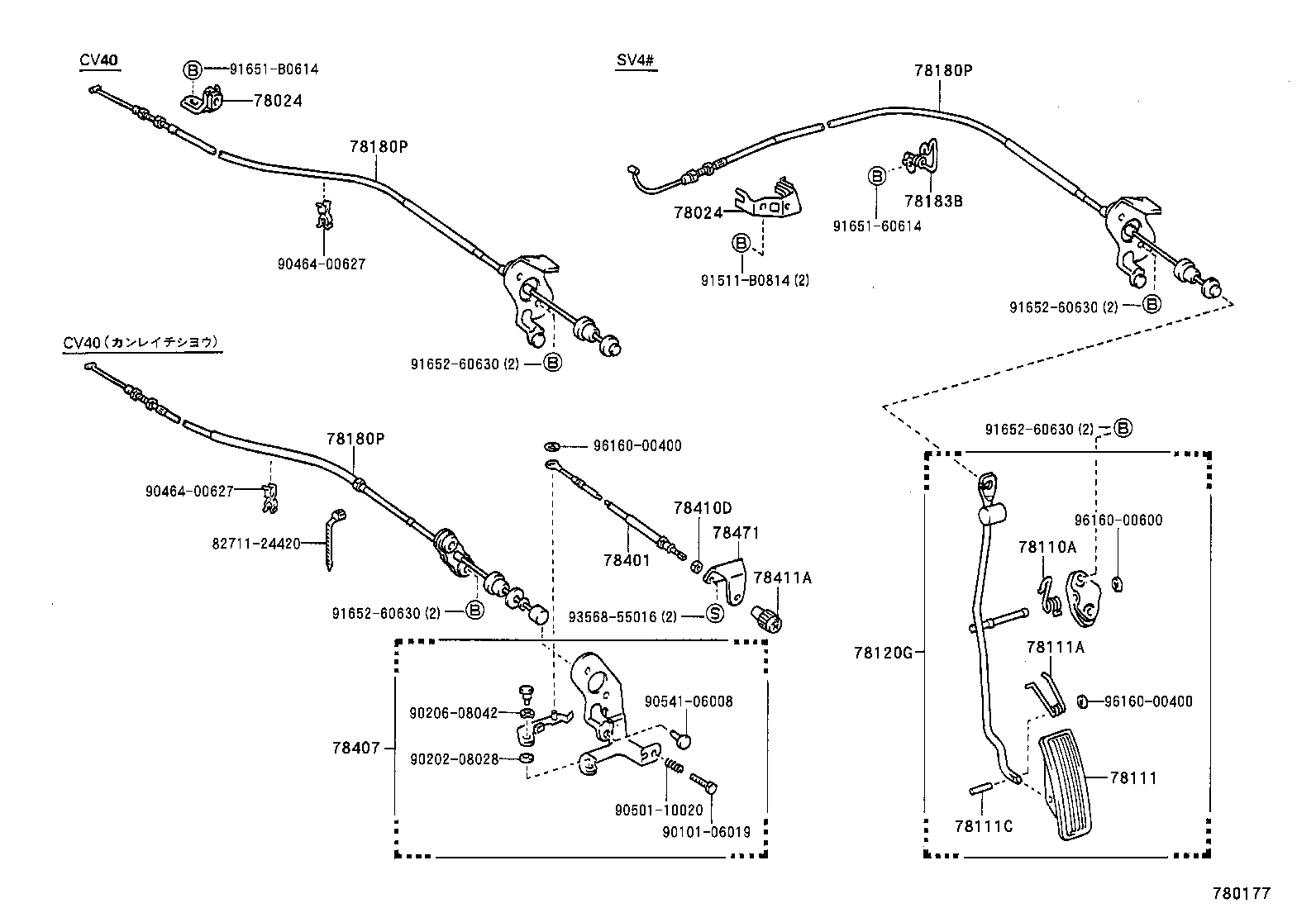

Click highlighted areas on diagram

diagram 78024 78024 78110A 78111 78111A 78111C 78120G 78180P 78180P 78180P 78183B 78401 78407 78410D 78411A 78471 8271124420 9010106019 9020208028 9020608042 9046400627 9046400627 9050110020 9054106008 91511B0814 9165160614 91651B0614 9165260630 9165260630 9165260630 9165260630 9356855016 9616000400 9616000400 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-20140

SV4#

 1
78024-44020

SV4#

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-20140

SV4#

 1
78024-44020

SV4#

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-28004

CV40,SV40,43..MTM

 1
78111 - PEDAL, ACCELERATOR
78111-12100

CV4#,SV4#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23119

CV4#,SV4#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

CV4#,SV4#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-32120

SV40,43..MTM

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-32460

SV4#

 1
78180-32450

SV4#

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-32460

SV4#

 1
78180-32450

SV4#

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-32460

SV4#

 1
78180-32450

SV4#

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-32030

SV4#

 1
Common parts
82711-24420
90101-06019
90202-08028
90206-08042
90464-00627
90501-10020
90541-06008
91511-B0814
91651-60614
91651-B0614
91652-60630
93568-55016
96160-00400
96160-00600
