SV40-BTMGK (1994)
Toyota Camry/Vista
Production
Jun 1994
-
Jun 1998
Engine
4SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9406- )

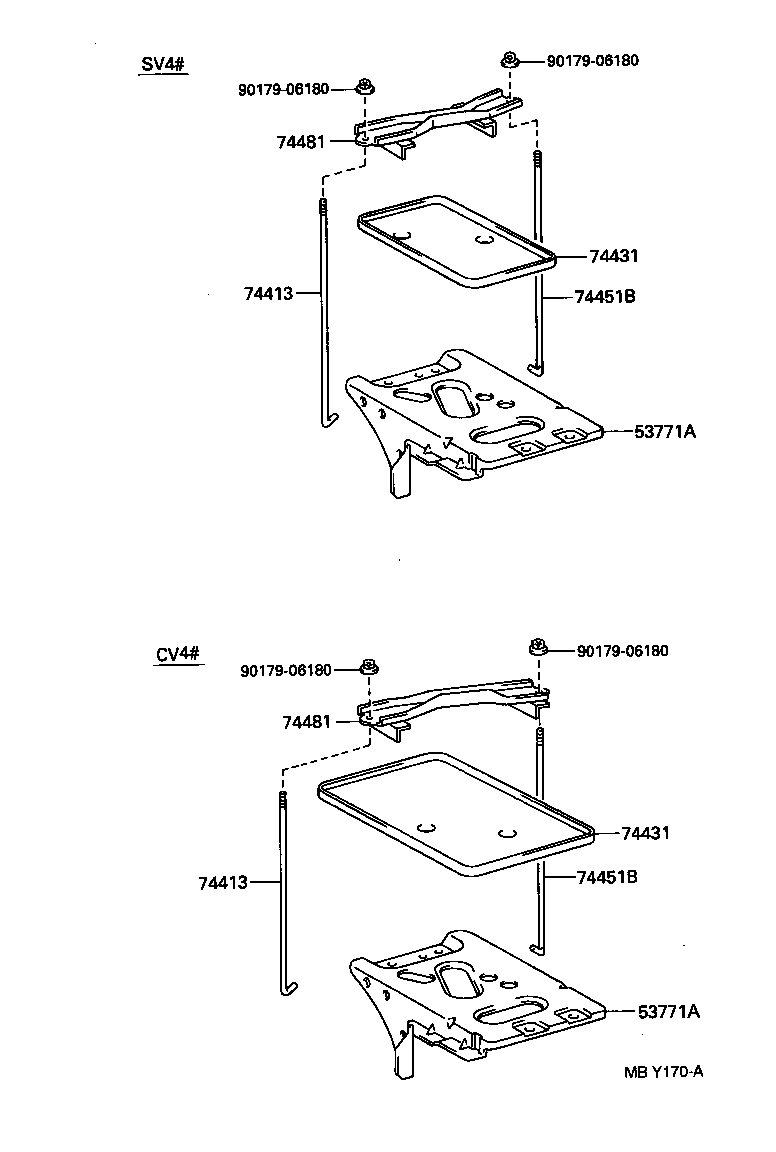

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53771A - SUPPORT, BATTERY CARRIER | ||||
| 53771-32040 |
CV4#,SV4# |
1 | ||
| 53771A - SUPPORT, BATTERY CARRIER | ||||
| 53771-32040 |
CV4#,SV4# |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-32070 |
SV4# |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-32070 |
SV4# |
1 | ||
| 74431 - TRAY, BATTERY | ||||
| 74431-14050 |
SV40,43..MTM |
1 | ||
| 74431-14020 |
SV40,43..MTM ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 74431 - TRAY, BATTERY | ||||
| 74431-14050 |
SV40,43..MTM |
1 | ||
| 74431-14020 |
SV40,43..MTM ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 74451B - BOLT, BATTERY CLAMP | ||||
| 74451-32070 |
CV4#,SV4# |
1 | ||
| 74451B - BOLT, BATTERY CLAMP | ||||
| 74451-32070 |
CV4#,SV4# |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-32120 |
SV4# |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-32120 |
SV4# |
1 | ||
| Common parts | ||||
| 90179-06180 | ||||
