SV40-BTMGK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

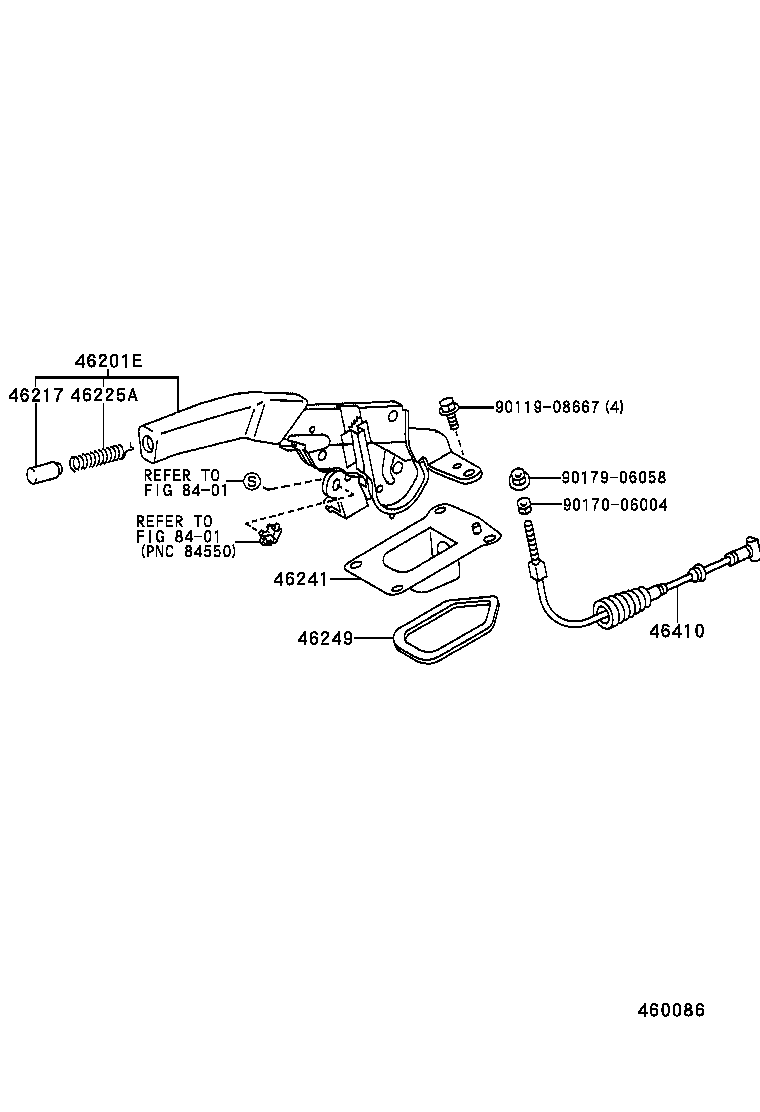

ILLUST NO. 1 OF 3(9406- )MTM

Click highlighted areas on diagram

diagram 46201E 46217 46225A 46241 46249 46410 8401 8401 9011908667 9017006004 9017906058
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-32170B1

CV40,SV40,43..MTM

SHADOW GRAY,TRIM1#

 1
46201-32170E0

CV40,SV40,43..MTM..(ETO,LUM,VJ,VX,XJ,ZX)

OAK,TRIM4#

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-17010B1

CV40,SV40,43..MTM

SHADOW GRAY,TRIM1#

 1
46217-17010E0

CV40,SV40,43..MTM..(ETO,LUM,VJ,VX,XJ,ZX)

OAK,TRIM4#

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90504-12005

CV40,SV40,43..MTM

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-33010

CV40,SV40,43..MTM

 1
46249 - SHIELD, PARKING BRAKE HOLE
46249-32030

CV40,SV40,43..MTM

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-32140

CV40,SV40,43..MTM

 1
Common parts
90119-08667
90170-06004
90179-06058
Linked diagrams
8401

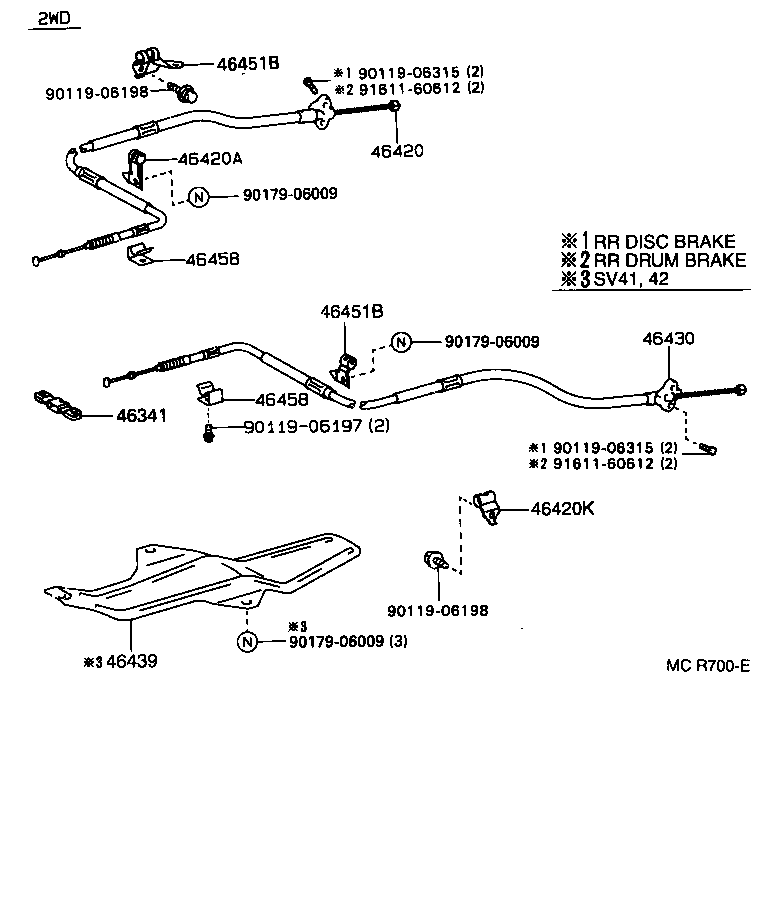

ILLUST NO. 2 OF 3(9406- )CV40,SV40,41,42

Click highlighted areas on diagram

diagram 46341 46420 46420A 46420K 46430 46439 46451B 46451B 46458 46458 9011906197 9011906198 9011906198 9011906315 9011906315 9017906009 9017906009 9017906009 9161160612 9161160612
Part # Description Qty Price
46341 - EQUALIZER, PARKING BRAKE
46341-32030

CV4#,SV4#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-32210

CV40,SV40

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90949-01667

CV40,SV40,41,42

 1
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
90949-01669

CV40,SV40,41,42

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-32210

CV40,SV40

 1
46451B - BRACKET, PARKING BRAKE CABLE SUPPORT
46451-32080

CV40,SV40,41,42

右側

 1
46451-32100

CV4#,SV4#

左側

 1
46451B - BRACKET, PARKING BRAKE CABLE SUPPORT
46451-32080

CV40,SV40,41,42

右側

 1
46451-32100

CV4#,SV4#

左側

 1
46458 - RETAINER, CABLE
46458-28010

CV4#,SV4#

 2
46458 - RETAINER, CABLE
46458-28010

CV4#,SV4#

 2
Common parts
90119-06197
90119-06198
90119-06315
90179-06009
91611-60612

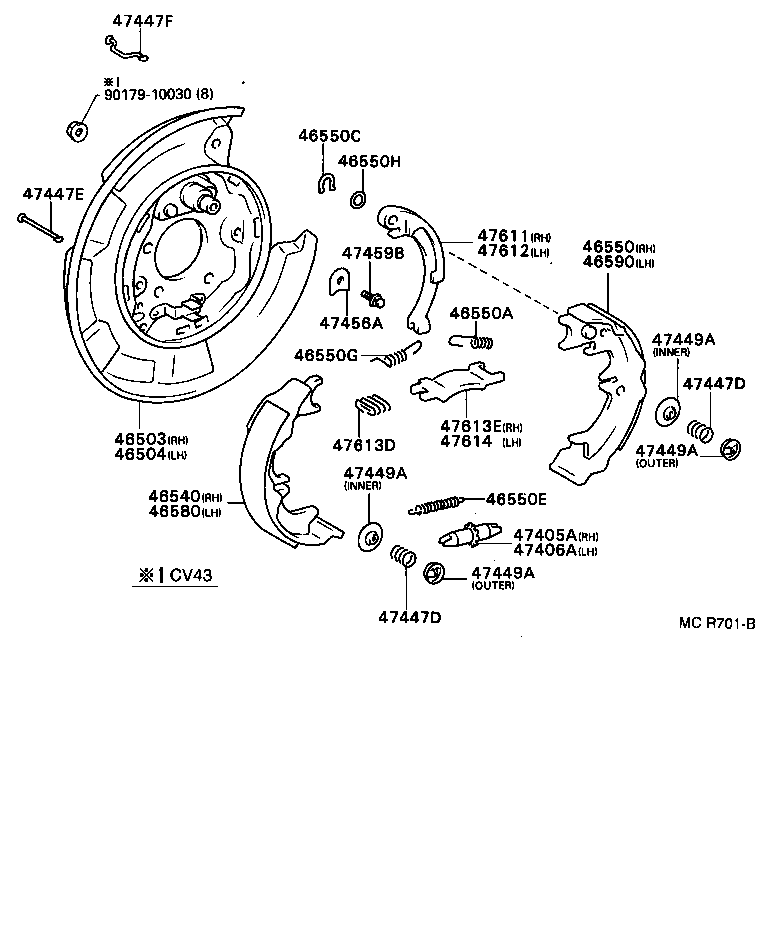

ILLUST NO. 3 OF 3(9406- )

Click highlighted areas on diagram

diagram 46503 46504 46540 46550 46550A 46550C 46550E 46550G 46550H 46580 46590 47405A 47406A 47447D 47447D 47447E 47447F 47449A 47449A 47449A 47449A 47456A 47459B 47611 47612 47613D 47613E 47614 9017910030
Part # Description Qty Price
Common parts
90179-10030
