SV40-BTMDK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

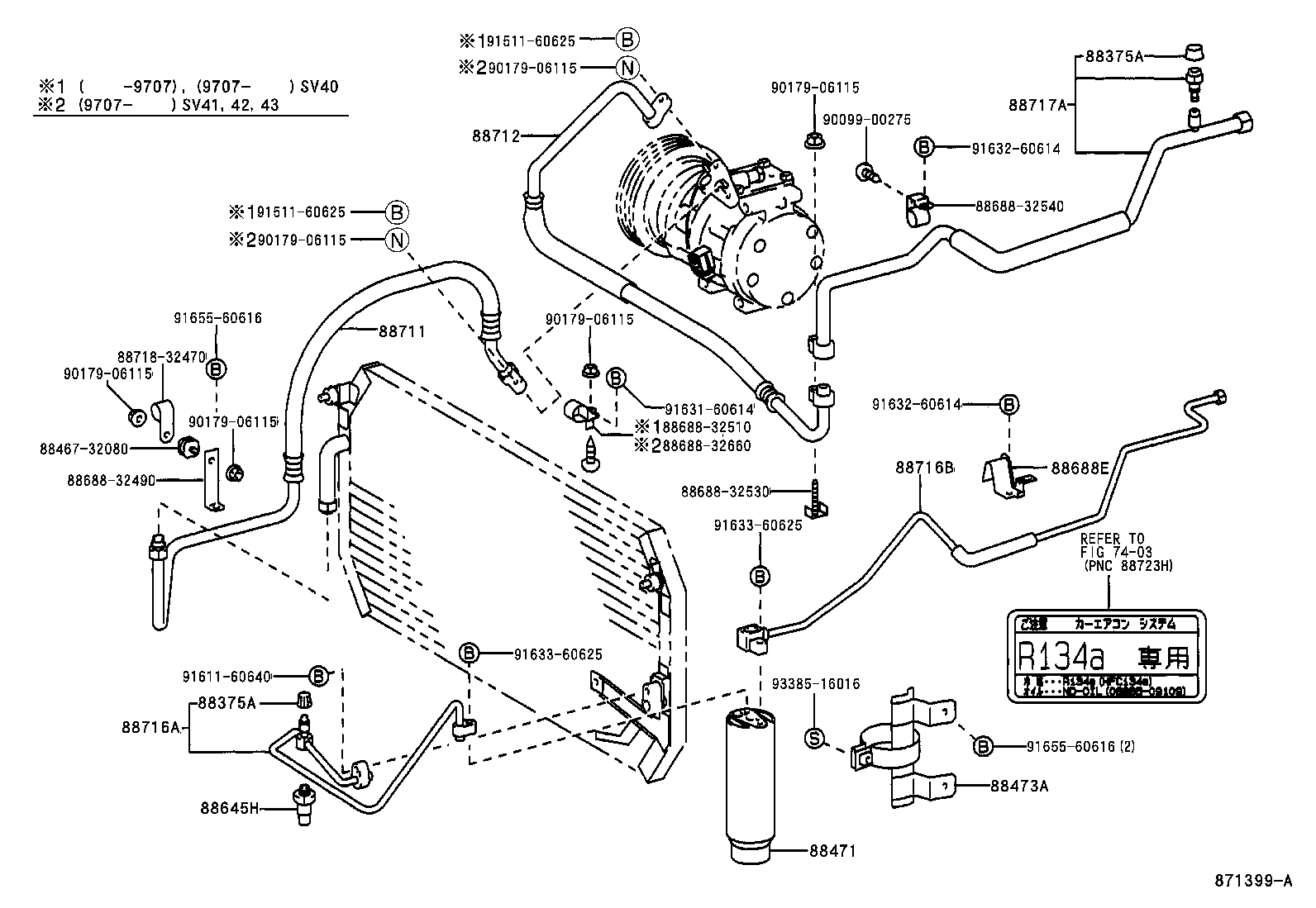

ILLUST NO. 2 OF 3(9605- )SV4#

Click highlighted areas on diagram

ﾁﾕ-ﾌﾞ & ﾎ-ｽ

diagram 7403 88375A 88375A 8846732080 88471 88473A 88645H 8868832490 8868832510 8868832530 8868832540 8868832660 88688E 88711 88712 88716A 88716B 88717A 8871832470 9009900275 9017906115 9017906115 9017906115 9017906115 9017906115 9017906115 9151160625 9151160625 9161160640 9163160614 9163260614 9163260614 9163360625 9163360625 9165560616 9165560616 9338516016
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

CV4#,SV4#

 1
88375-30290

CV4#,SV4#

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

CV4#,SV4#

 1
88375-30290

CV4#,SV4#

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050

CV4#,SV4#

 1
88473A - HOLDER, RECEIVER
88473-32070

CV4#,SV4#

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

CV4#,SV4#

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-32550

CV4#,SV4#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-32170

SV4#

 1
88711-32170

SV40

 1
88703-32010

SV4#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-32360

SV40,43

 1
88712-32360

SV40

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-32490

CV4#,SV4#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-32500

CV4#,SV4#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-32390

CV4#,SV4#

 1
Common parts
88467-32080
88688-32490
88688-32510
88688-32530
88688-32540
88688-32660
88718-32470
90099-00275
90179-06115
91511-60625
91611-60640
91631-60614
91632-60614
91633-60625
91655-60616
93385-16016
Linked diagrams
7403

ILLUST NO. 3 OF 3(9406- )

Click highlighted areas on diagram

diagram 9009914119 9009914120 9009914121 9009914122 9009914125
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122
90099-14125

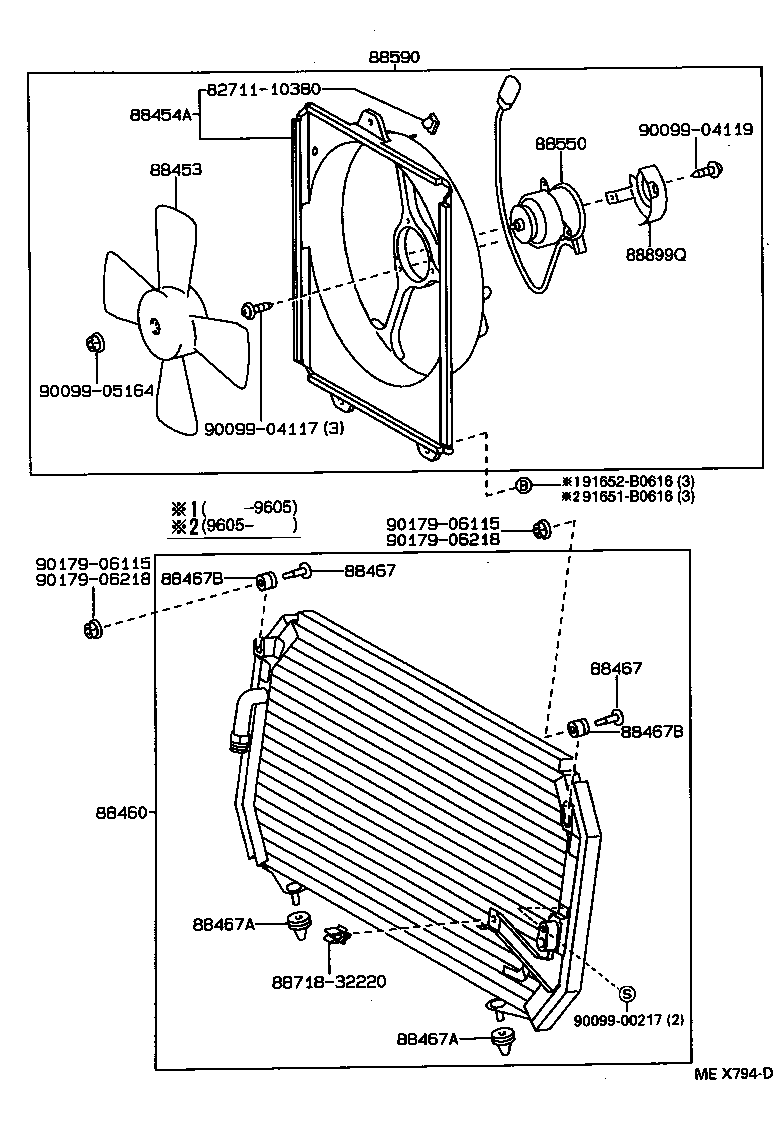

ILLUST NO. 1 OF 3(9406- )

Click highlighted areas on diagram

ﾌﾞﾛﾜ & ｸ-ﾗ ｺﾝﾃﾞﾝｻ

diagram 8271110380 88453 88454A 88460 88467 88467 88467A 88467A 88467B 88467B 88550 88590 8871832220 88899Q 9009900217 9009904117 9009904119 9009905164 9017906115 9017906115 9017906218 9017906218 91651B0616 91652B0616
Part # Description Qty Price
88453 - FAN, COOLING (FOR CONDENSER)
88453-33010

SV4#

 1
88454A - SHROUD, FAN
88454-32080

SV4#

 1
88460 - CONDENSER ASSY, COOLER
88460-32220

CV40,SV4#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-20140

CV4#,SV4#

 2
88467-20140

CV40,SV4#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-20140

CV4#,SV4#

 2
88467-20140

CV40,SV4#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-32060

CV40,SV4#

 2
88467-32060

CV4#,SV4#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-32060

CV40,SV4#

 2
88467-32060

CV4#,SV4#

 2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-20040

CV40,SV4#

 2
88467-20040

CV4#,SV4#

 2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-20040

CV40,SV4#

 2
88467-20040

CV4#,SV4#

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-74210

SV4#

 1
88590 - BLOWER ASSY, W/SHROUD
88590-32170

SV4#

 1
88899Q - PLATE, COVER
88899-20290

SV4#

 1
Common parts
82711-10380
88718-32220
90099-00217
90099-04117
90099-04119
90099-05164
90179-06115
90179-06218
91651-B0616
91652-B0616

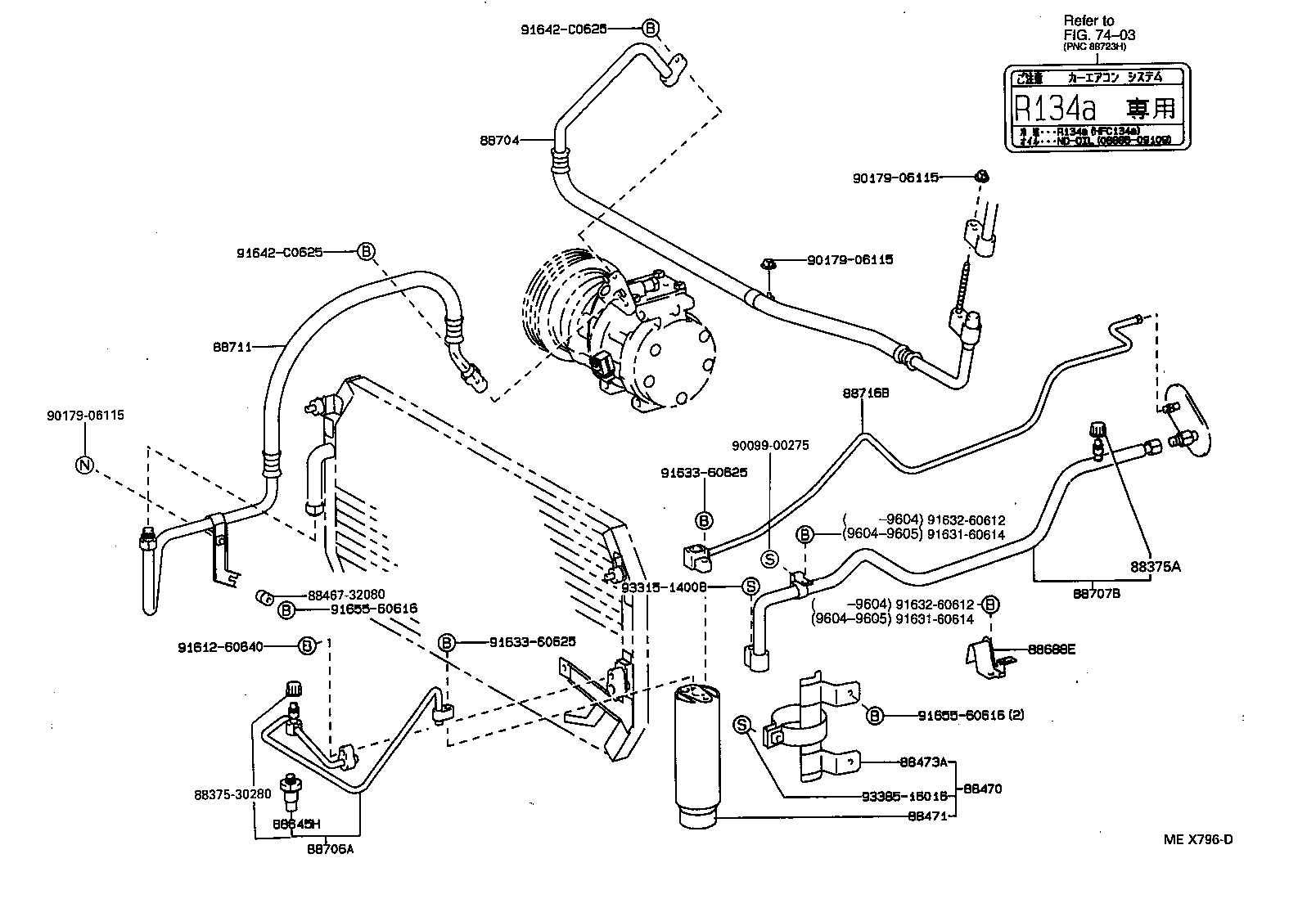

ILLUST NO. 2 OF 3(9406-9605)SV4#

Click highlighted areas on diagram

ﾁﾕ-ﾌﾞ & ﾎ-ｽ

diagram 7403 8837530280 88375A 8846732080 88470 88471 88473A 88645H 88688E 88704 88706A 88707B 88711 88716B 9009900275 9017906115 9017906115 9017906115 9161260640 9163160614 9163160614 9163260612 9163260612 9163360625 9163360625 91642C0625 91642C0625 9165560616 9165560616 9331514008 9338516016
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

CV4#,SV4#

 1
88375-30290

CV4#,SV4#

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-32040

CV4#,SV4#

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050

CV4#,SV4#

 1
88473A - HOLDER, RECEIVER
88473-32070

CV4#,SV4#

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

CV4#,SV4#

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-32550

CV4#,SV4#

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-32100

SV40,43

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-32020

CV4#,SV4#

 1
88707B - TUBE SUB-ASSY, SUCTION, B
88707-32020

CV4#,SV4#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-32170

SV4#

 1
88711-32170

SV40

 1
88703-32010

SV4#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-32500

CV4#,SV4#

 1
Common parts
88375-30280
88467-32080
90099-00275
90179-06115
91612-60640
91631-60614
91632-60612
91633-60625
91642-C0625
91655-60616
93315-14008
93385-16016
Linked diagrams
7403
