SV40-BTMDK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )

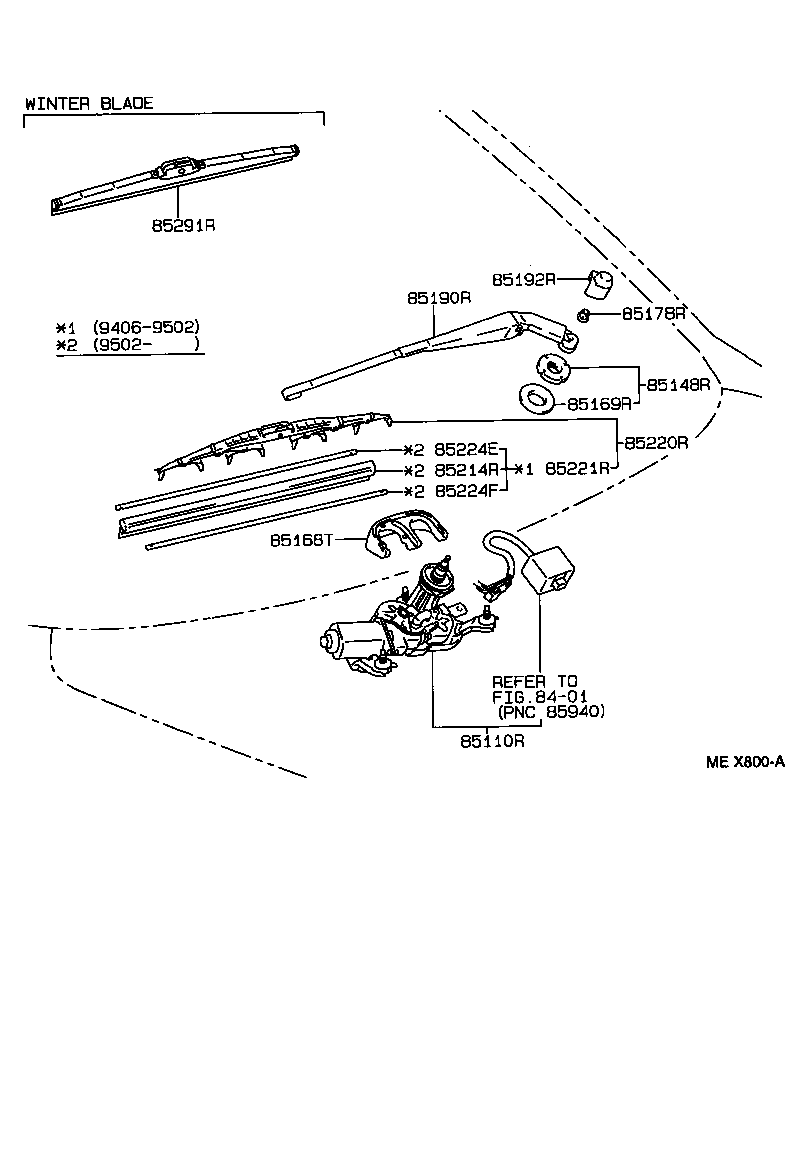

Click highlighted areas on diagram

diagram 8401 85110R 85148R 85168T 85169R 85178R 85190R 85192R 85214R 85220R 85221R 85224E 85224F 85291R
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-32310

CV4#,SV4#..HT

 1
85148R - NUT, W/WASHER PACKING, REAR WIPER LINK PIVOT
85133-12770

CV4#,SV4#

 1
85168T - COVER, WIPER LINK
85168-20690P0

CV4#,SV4#

SHADOW GRAY,TRIM1#

 1
85168-20690E1

CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX

OAK,TRIM4#

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
90210-28002

CV4#,SV4#

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

CV4#,SV4#

 1
85190R - ARM ASSY, REAR WIPER
85241-32030

CV4#,SV4#..HT

 1
85192R - COVER, REAR WIPER ARM
85244-12010

CV4#,SV4#

 1
85214R - RUBBER, REAR WIPER
85214-22360

CV4#,SV4#..HT

 1
85214-20420

CV4#,SV4#..HT

 1
85220R - BLADE ASSY, REAR WIPER
85242-20090

CV4#,SV4#..HT

 1
85242-32020

CV4#,SV4#..HT

 1
85221R - BLADE, REAR WIPER
85243-22030

CV4#,SV4#..HT

 1
85224E - PLATE, REAR WIPER RUBBER BACKING, NO.1
85224-60050

CV4#,SV4#..HT

 1
85224-1G010

CV4#,SV4#..HT

 1
85224F - PLATE, REAR WIPER RUBBER BACKING, NO.2
85224-1G010

CV4#,SV4#..HT

 1
85224-60050

CV4#,SV4#..HT

 1
85291R - BLADE,REAR WIPER, WINTER
85291-60020

CV4#,SV4#

 1
Linked diagrams
8401
