SV40-BTMDK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )

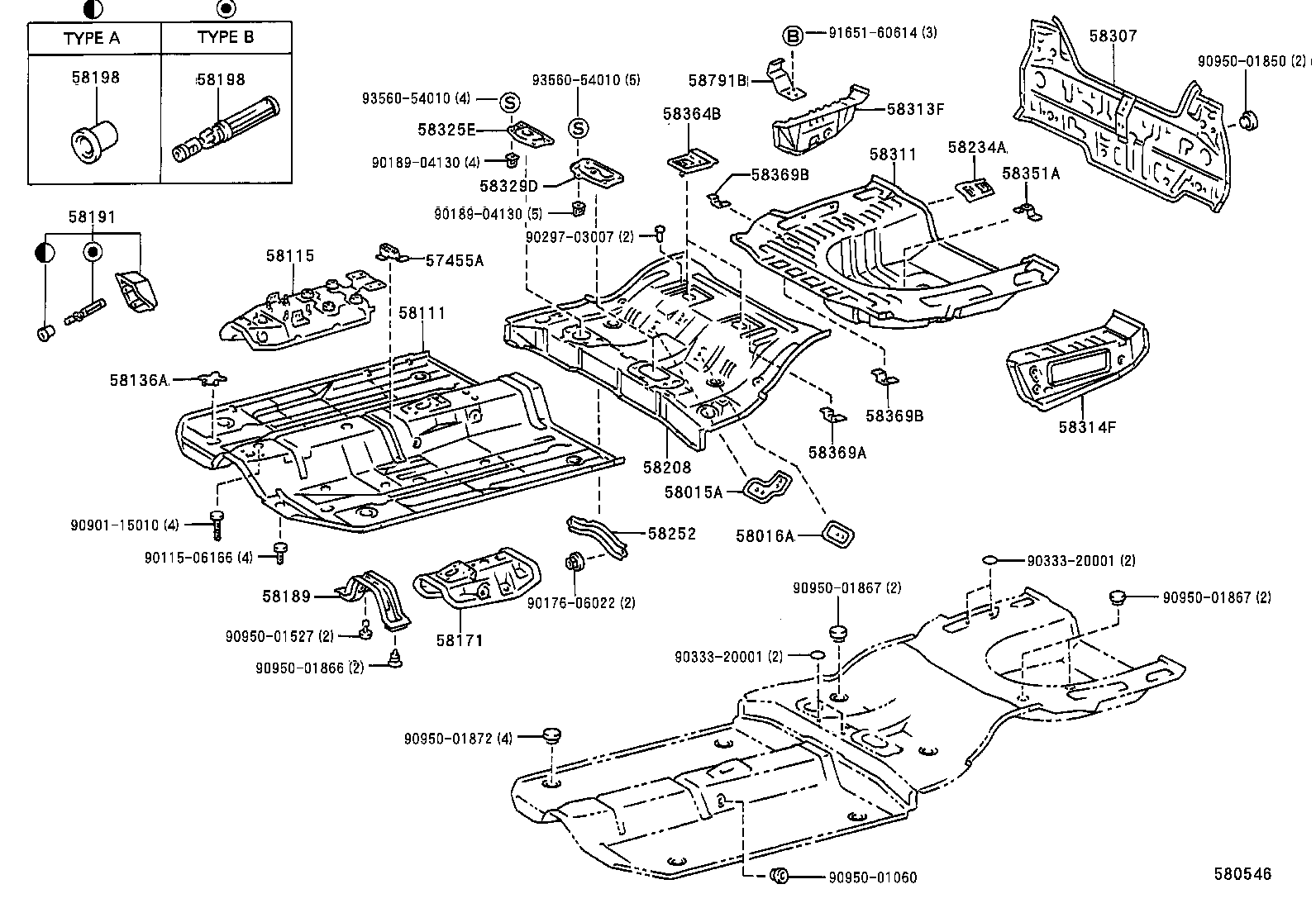

Click highlighted areas on diagram

diagram 57455A 58015A 58016A 58111 58115 58136A 58171 58189 58191 58198 58198 58208 58234A 58252 58307 58311 58313F 58314F 58325E 58329D 58351A 58364B 58369A 58369B 58369B 58791B 9011506166 9017606022 9018904130 9018904130 9029703007 9033320001 9033320001 9090115010 9095001060 9095001527 9095001850 9095001866 9095001867 9095001867 9095001872 9165160614 9356054010 9356054010
Part # Description Qty Price
57455A - BRACKET, FRONT FLOOR CROSSMEMBER
57455-32010

CV4#,SV4#

 1
58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58015-32060

CV4#,SV40,41,43..ETO,LUM,VJ,XJ

 1
58015-32050

CV4#,SV4#

 1
58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58016-20071

CV4#,SV4#

 1
58016-20070

CV40,SV4#

 1
58111 - PAN, FRONT FLOOR
58111-32070

CV40,SV40,43..MTM

 1
58111-32110

CV40,SV40,43..MTM

 1
58115 - REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58103-32060

CV4#,SV4#

 1
58136A - COVER, FRONT FLOOR SERVICE HOLE
58136-12020

CV4#,SV4#

 2
58171 - REINFORCEMENT, PARKING BRAKE BASE
58107-32040

CV40,SV40,41,42

 1
58107-32060

CV40,SV40,41,42

 1
58189 - REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET
58189-32010

CV40,SV40,41,42

 1
58191 - FOOTREST, FRONT FLOOR
58191-32040

CV4#,SV4#

 1
58198 - CLIP, FOOTREST
58198-32020

CV4#,SV4#

ﾀｲﾌﾟ A

 1
58198-32010

CV4#,SV4#

ﾀｲﾌﾟ B

 2
58198 - CLIP, FOOTREST
58198-32020

CV4#,SV4#

ﾀｲﾌﾟ A

 1
58198-32010

CV4#,SV4#

ﾀｲﾌﾟ B

 2
58208 - PAN, CENTER FLOOR
58211-32150

CV40,SV40,41,42

 1
58234A - BRACKET, EXHAUST PIPE MOUNTING, INNER
58234-32040

CV4#,SV4#

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-32340

CV4#,SV4#..HT

 1
58311 - PAN, REAR FLOOR
58311-32140

CV4#,SV4#

 1
58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58305-32020

CV4#,SV4#

 1
58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58314-32100

CV4#,SV40,41,43

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-32030

CV4#,SV4#

 1
58351A - BRACKET, SPARE WHEEL CARRIER
58351-32010

CV4#,SV4#

 1
58369A - BRACKET, FUEL TUBE, NO.3
58369-20010

CV4#,SV4#

 2
58369B - BRACKET, FUEL TUBE, NO.3
58369-20020

CV4#,SV4#

 2
58369B - BRACKET, FUEL TUBE, NO.3
58369-20020

CV4#,SV4#

 2
58791B - CARRIER, JACK
58791-32070

CV40,SV4#

 1
58791-20090

CV4#,SV4#

 1
Common parts
90115-06166
90176-06022
90189-04130
90297-03007
90333-20001
90901-15010
90950-01060
90950-01527
90950-01850
90950-01866
90950-01867
90950-01872
91651-60614
93560-54010
