SV40-BTMDK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )

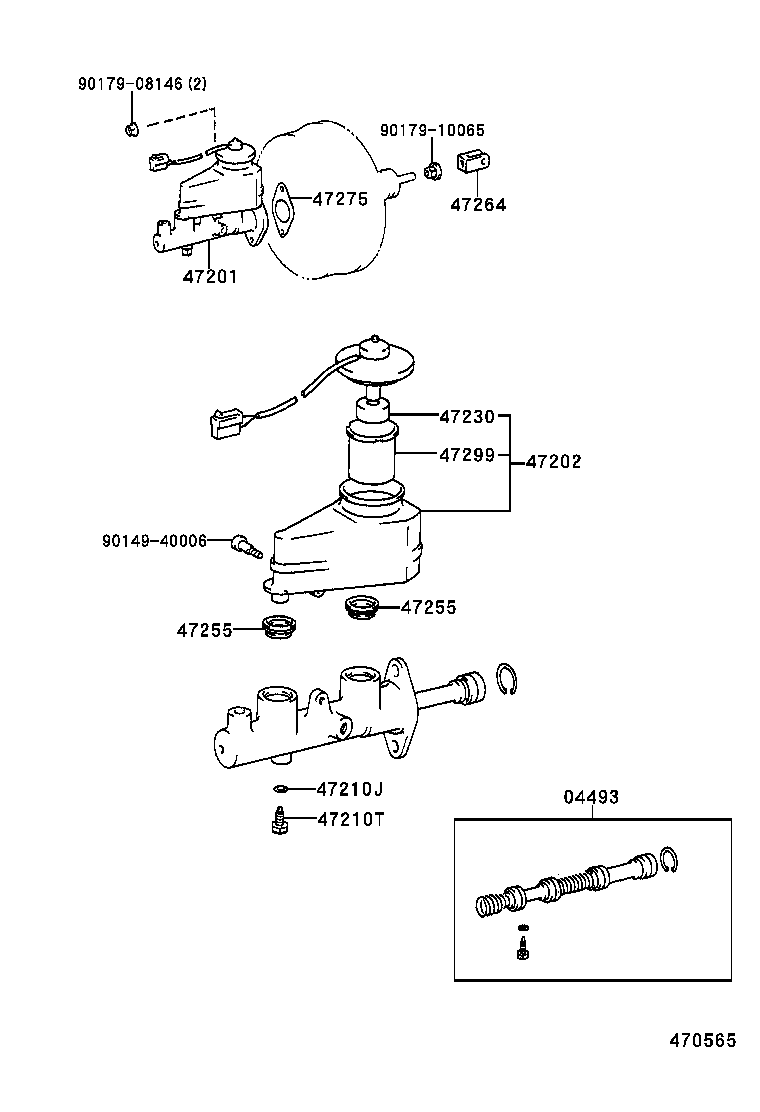

Click highlighted areas on diagram

diagram 04493 47201 47202 47210J 47210T 47230 47255 47255 47264 47275 47299 9014940006 9017908146 9017910065
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-32080

CV40,SV40

 1
04493-2B010

CV40,SV40

 1
04493-32100

CV40,SV40

ｱﾘ(ABS)

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-32300

CV40,SV40

 1
47201-32280

SV40

ｱﾘ(ABS)

 1
47201-32260

CV40,SV40

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-32050

CV40,SV40

 1
47220-32050

CV4#,SV40

 1
47220-32060

CV43,SV40

ｱﾘ(ABS)

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

CV4#,SV4#

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

CV4#,SV4#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-12040

CV4#,SV4#

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

CV4#,SV4#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

CV4#,SV4#

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-16020

CV4#,SV4#

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-12020

CV4#,SV4#

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-24010

CV4#,SV4#

 1
Common parts
90149-40006
90179-08146
90179-10065
