SV40-BTMDK (1994)
Toyota Camry/Vista
Production
Jun 1994
-
Jun 1998
Engine
4SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9406- )

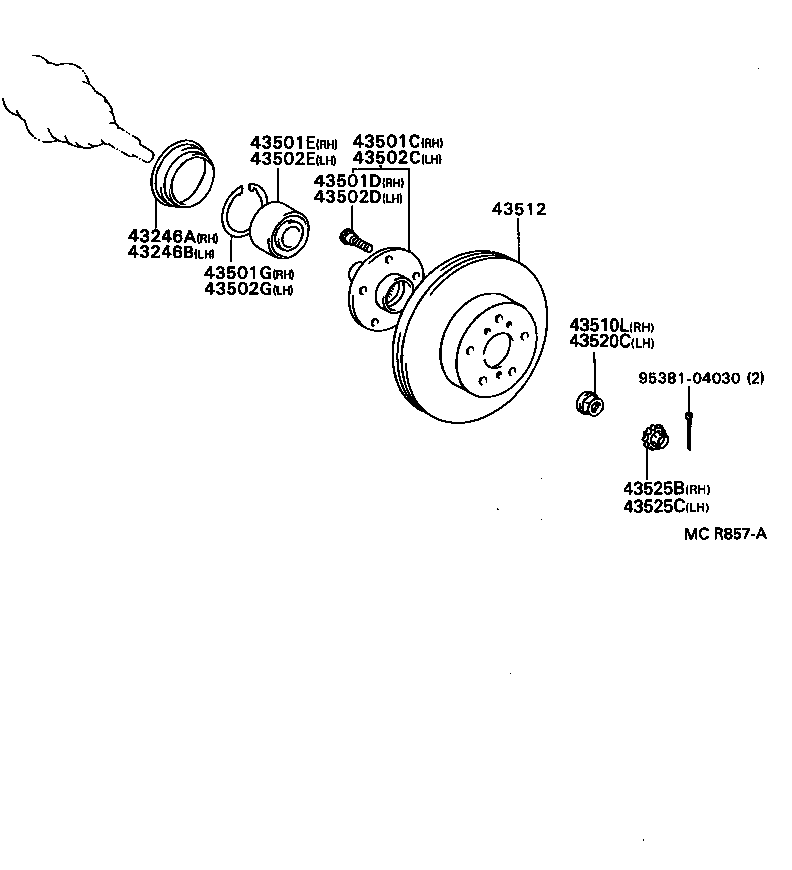

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43246A - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH | ||||
| 43246-32020 |
CV4#,SV4# ｱﾘ(ABS) |
1 | ||
| 43246-17020 |
CV4#,SV4# |
1 | ||
| 43246-32020 |
CV4#,SV4# |
1 | ||
| 43246B - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH | ||||
| 43246-32020 |
CV4#,SV40,41,43 ｱﾘ(ABS) |
1 | ||
| 43246-32020 |
CV4#,SV4# |
1 | ||
| 43246-17020 |
CV4#,SV40,41,43 |
1 | ||
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-32070 |
CV4#,SV4# |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02049 |
CV4#,SV4# |
5 | ||
| 43501E - BEARING (FOR FRONT AXLE HUB RH) | ||||
| 90369-43008 |
CV4#,SV4# |
1 | ||
| 43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH) | ||||
| 90521-88001 |
CV4#,SV4# |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-32070 |
CV4#,SV4# |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02049 |
CV4#,SV4# |
5 | ||
| 43502E - BEARING (FOR FRONT AXLE HUB LH) | ||||
| 90369-43008 |
CV4#,SV4# |
1 | ||
| 43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH) | ||||
| 90521-88001 |
CV4#,SV4# |
1 | ||
| 43510L - NUT (FOR STEERING KNUCKLE RH) | ||||
| 90179-22020 |
CV4#,SV4# |
1 | ||
| 90178-22001 |
CV43,SV4# |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-32270 |
CV40,SV40 |
2 | ||
| 43520C - NUT (FOR STEERING KNUCKLE LH) | ||||
| 90178-22001 |
CV43,SV4# |
1 | ||
| 90179-22020 |
CV4#,SV4# |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-20030 |
CV4#,SV4# |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-20030 |
CV4#,SV4# |
1 | ||
| Common parts | ||||
| 95381-04030 | ||||
