SV40-BEMMK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )SED

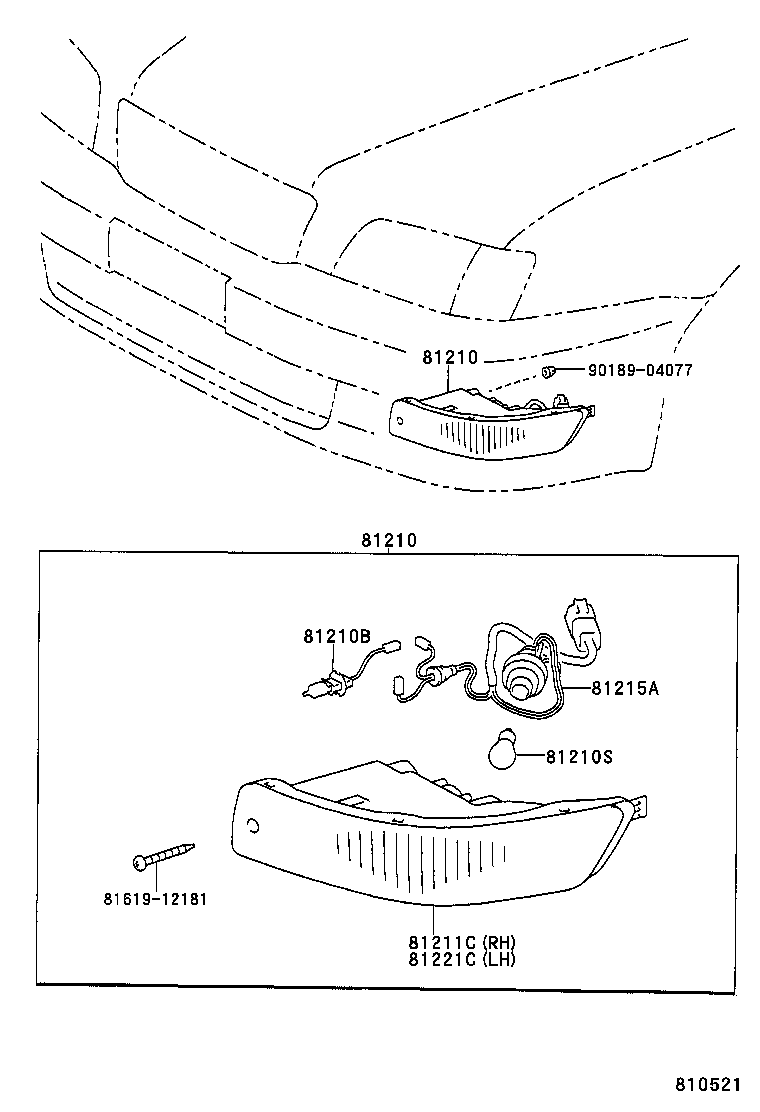

Click highlighted areas on diagram

diagram 81210 81210 81210B 81210S 81211C 81215A 81221C 8161912181 9018904077
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-32060

CV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)

右側

 1
81220-32060

CV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)

左側

 1
81210 - LAMP ASSY, FOG
81210-32060

CV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)

右側

 1
81220-32060

CV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)

左側

 1
81210B - BULB, FOG LAMP
90981-13048

CV4#,SV4#..SED

12V 55W,ﾊﾛｹﾞﾝ

 2
81210S - BULB, CORNERING LAMP
99132-21210

CV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-32060

CV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)

 1
81215A - SOCKET & WIRE, FOG LAMP
81215-32060

CV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)

 2
81221C - LAMP UNIT, FOG LAMP, LH
81221-32060

CV4#,SV4#..SED..(ALPX,LUM,TOU,ZX)

 1
Common parts
81619-12181
90189-04077
