SV40-BEMMK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )SV4#

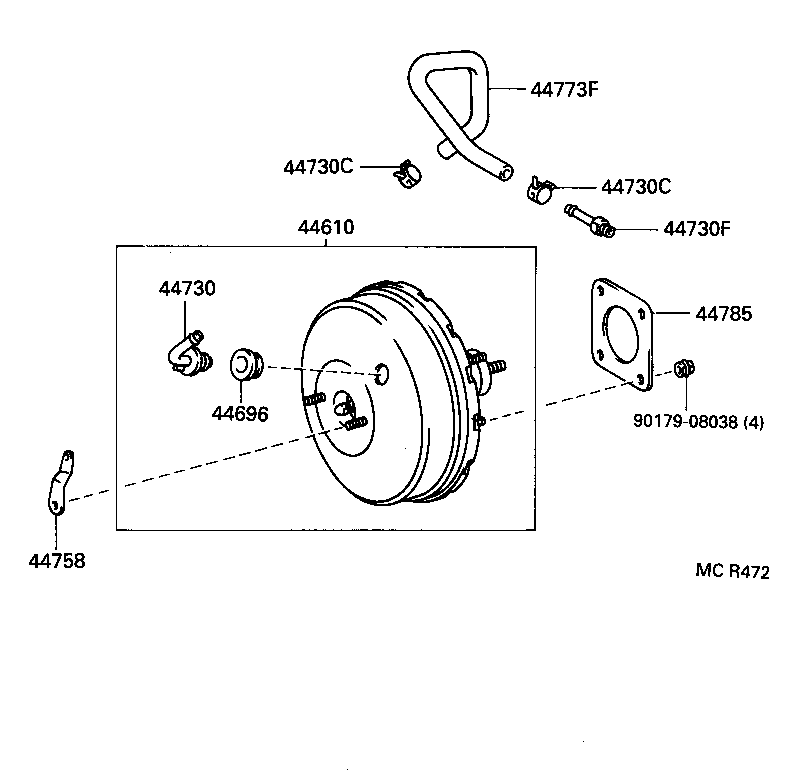

Click highlighted areas on diagram

diagram 44610 44696 44730 44730C 44730C 44730F 44758 44773F 44785 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-32590

SV40

ｱﾘ(ABS)

 1
44610-32560

SV40

 1
44610-32580

SV40

 1
44696 - GROMMET, CHECK VALVE
90480-24015

SV4#

 1
90480-24015

SV40

 1
90480-24439

SV40

 1
90480-24439

SV4#

ｱﾘ(ABS)

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-14050

SV40

 1
44730-28010

SV4#

 1
44730-28010

SV40

 1
44730-14050

SV4#

ｱﾘ(ABS)

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

CV4#,SV4#

 2
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

CV4#,SV4#

 2
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

SV4#

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-32080

SV40

 1
44758-32070

SV40

ｱﾘ(ABS)

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-32200

SV4#

 1
44773-32190

SV4#

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

CV4#,SV4#

 1
Common parts
90179-08038
