SV40-AEPMK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 4SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

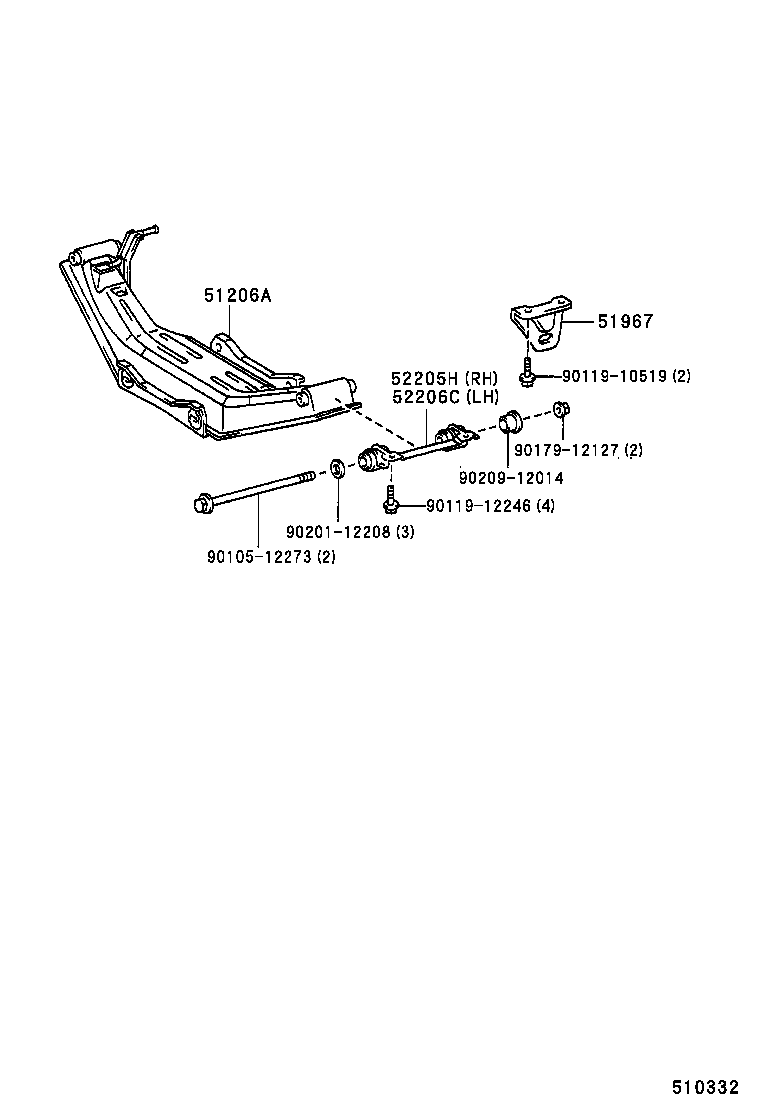

ILLUST NO. 2 OF 2(9406- )CV40,SV40,41

Click highlighted areas on diagram

diagram 51206A 51967 52205H 52206C 9010512273 9011910519 9011912246 9017912127 9020112208 9020912014
Part # Description Qty Price
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-32050

CV40,SV40,41

 1
51967 - HOOK, TRANSPORT, REAR
51967-32060

CV4#,SV4#

 1
52205H - CUSHION SUB-ASSY, BODY MOUNTING, REAR RH
52205-32010

CV40,SV40,41

 1
52206C - CUSHION SUB-ASSY, BODY MOUNTING, REAR LH
52206-32010

CV40,SV40,41

 1
Common parts
90105-12273
90119-10519
90119-12246
90179-12127
90201-12208
90209-12014

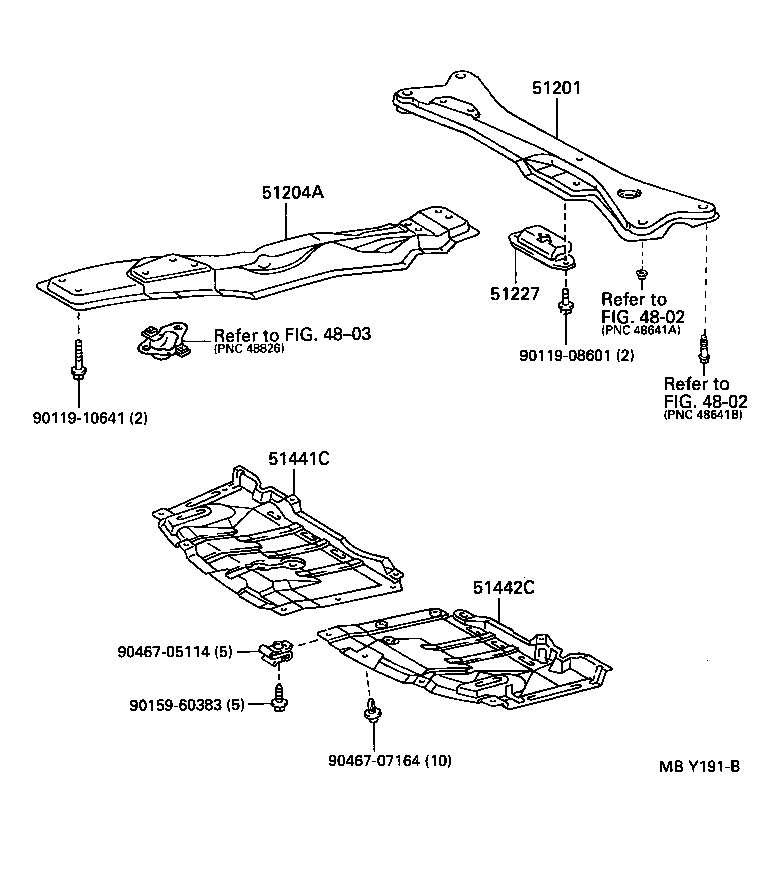

ILLUST NO. 1 OF 2(9406- )

Click highlighted areas on diagram

diagram 4802 4802 4803 51201 51204A 51227 51441C 51442C 9011908601 9011910641 9015960383 9046705114 9046707164
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-32040

CV4#,SV4#

 1
51201-32041

CV4#,SV4#

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-32030

CV4#,SV4#

 1
51227 - WEIGHT, FRONT SUSPENSION MEMBER DAMPER
51227-32040

SV40;CV40..SED

 1
51227-32020

CV4#,SV4#

 1
51441C - COVER, ENGINE UNDER, RH
51441-32060

CV4#,SV4#

 1
51442C - COVER, ENGINE UNDER, LH
51442-32090

CV4#,SV4#..ATM

 1
Common parts
90119-08601
90119-10641
90159-60383
90467-05114
90467-07164
Linked diagrams
4802
4803
