SV40-AEPDK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 4SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )SV4#

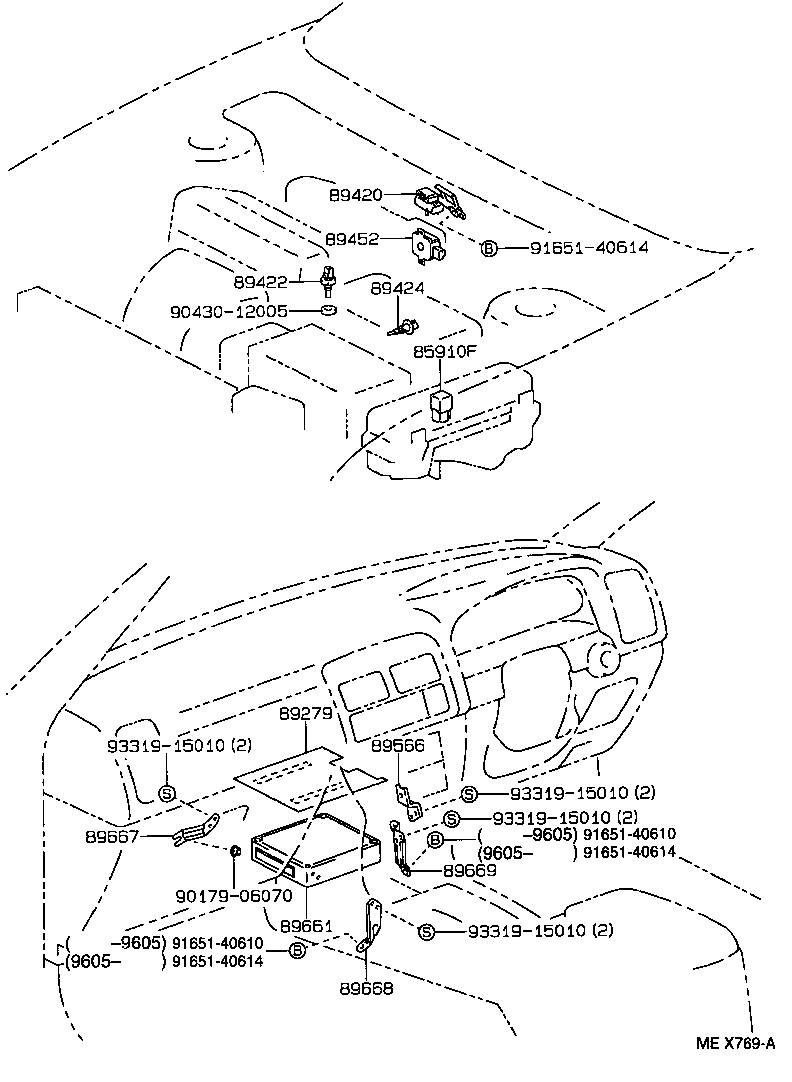

Click highlighted areas on diagram

diagram 85910F 89279 89420 89422 89424 89452 89566 89661 89667 89668 89669 9017906070 9043012005 9165140610 9165140610 9165140614 9165140614 9165140614 9331915010 9331915010 9331915010 9331915010
Part # Description Qty Price
85910F - RELAY, COMPUTER (FOR EFI)
90987-02009

SV4#

 1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-32170

SV4#

 1
89420 - SENSOR ASSY, VACUUM
89420-32070

SV4#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

SV4#

 1
89422-20010

SV4#

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

SV4#

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-10010

SV40

 1
89452-33030

SV4#

 1
89452-20130

SV4#

 1
89661 - COMPUTER, ENGINE CONTROL
89661-32820

SV40..ATM

 1
89661-32880

SV40

 1
89661-3H030

SV40..ATM

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-32050

SV4#

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-32040

SV4#

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-32050

SV4#

 1
Common parts
90179-06070
90430-12005
91651-40610
91651-40614
93319-15010
