SV40-AEPDK (1994)
Toyota Camry/Vista
Production
Jun 1994
-
Jun 1998
Engine
4SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9406- )CV40,SV40,41

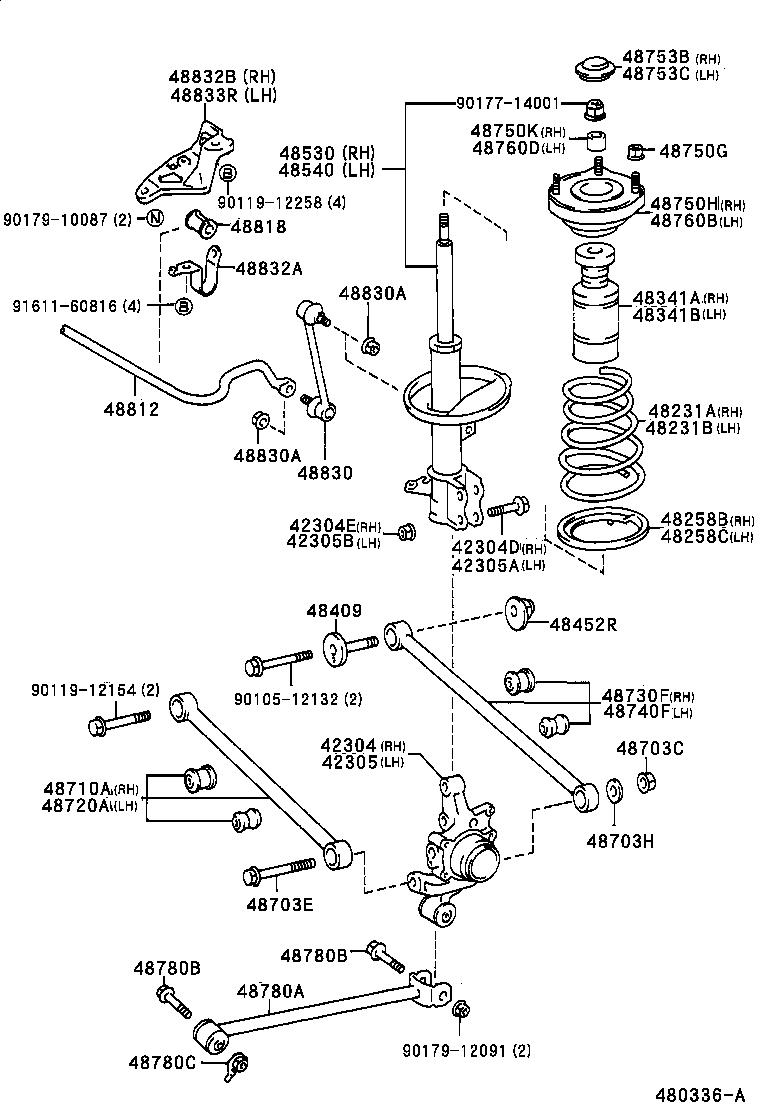

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-20060 |
CV40,SV40 |
1 | ||
| 42304-32060 |
SV40 ｱﾘ(ABS) |
1 | ||
| 42304-32060 |
CV40,SV40 |
1 | ||
| 42304D - BOLT (FOR REAR AXLE CARRIER RH) | ||||
| 90105-15001 |
CV4#,SV4# |
2 | ||
| 42304E - NUT (FOR REAR AXLE CARRIER RH) | ||||
| 90179-15001 |
CV4#,SV4# |
2 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-32060 |
CV40,SV40 |
1 | ||
| 42305-32060 |
SV40 ｱﾘ(ABS) |
1 | ||
| 42305-20060 |
CV40,SV40 |
1 | ||
| 42305A - BOLT (FOR REAR AXLE CARRIER LH) | ||||
| 90105-15001 |
CV4#,SV4# |
2 | ||
| 42305B - NUT (FOR REAR AXLE CARRIER LH) | ||||
| 90179-15001 |
CV4#,SV4# |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-3H081 |
SV40 |
1 | ||
| 48231-3H081 |
SV40 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-3H081 |
SV40 |
1 | ||
| 48231-3H081 |
SV40 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-32020 |
CV4#,SV4# |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-32020 |
CV4#,SV4# |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-32090 |
CV4#,SV4# |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-32090 |
CV4#,SV4# |
1 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-32020 |
CV40,SV40,41 |
2 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-32020 |
CV40,SV40,41 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-39165 |
SV40 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-39115 |
SV40 |
1 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-14019 |
CV40,SV40,41 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90901-19001 |
CV40,SV40,41 *14−1.50PX260−26 |
2 | ||
| 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) | ||||
| 90201-14017 |
CV40,SV40,41 |
2 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-32070 |
CV40,SV40,41 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-32070 |
CV40,SV40,41 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-32080 |
CV40,SV40,41 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-32080 |
CV40,SV40,41 |
1 | ||
| 48750G - NUT(FOR REAR SUSPENSION SUPPORT) | ||||
| 90179-08122 |
CV4#,SV4# |
6 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-32150 |
CV4#,SV4# |
1 | ||
| 48750K - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90387-15027 |
CV4#,SV4# |
1 | ||
| 48753B - COVER, REAR SUSPENSION SUPOPORT, NO.1 RH | ||||
| 48753-20040 |
CV4#,SV4# |
1 | ||
| 48753C - COVER, REAR SUSPENSION SUPOPORT, NO.1 LH | ||||
| 48753-20040 |
CV4#,SV4# |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48760-32150 |
CV4#,SV4# |
1 | ||
| 48760D - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90387-15027 |
CV4#,SV4# |
1 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-32060 |
CV4#,SV40,41,43 |
2 | ||
| 48780-12010 |
CV4#,SV40,41,43 |
2 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12131 |
CV4#,SV40,41,43 |
4 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12131 |
CV4#,SV40,41,43 |
4 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12063 |
CV4#,SV4# NO.1 |
2 | ||
| 90179-12091 |
CV4#,SV40,41,43 NO.2 |
2 | ||
| 90179-12063 |
CV40..ATM..XJ;CV43,SV40,41,43;CV40..ALPX,VJ,VX,ZX |
2 | ||
| Common parts | ||||
| 90105-12132 | ||||
| 90119-12154 | ||||
| 90119-12258 | ||||
| 90177-14001 | ||||
| 90179-10087 | ||||
| 90179-12091 | ||||
| 91611-60816 | ||||
