SV40-AEPDK (1994)
Toyota Camry/Vista

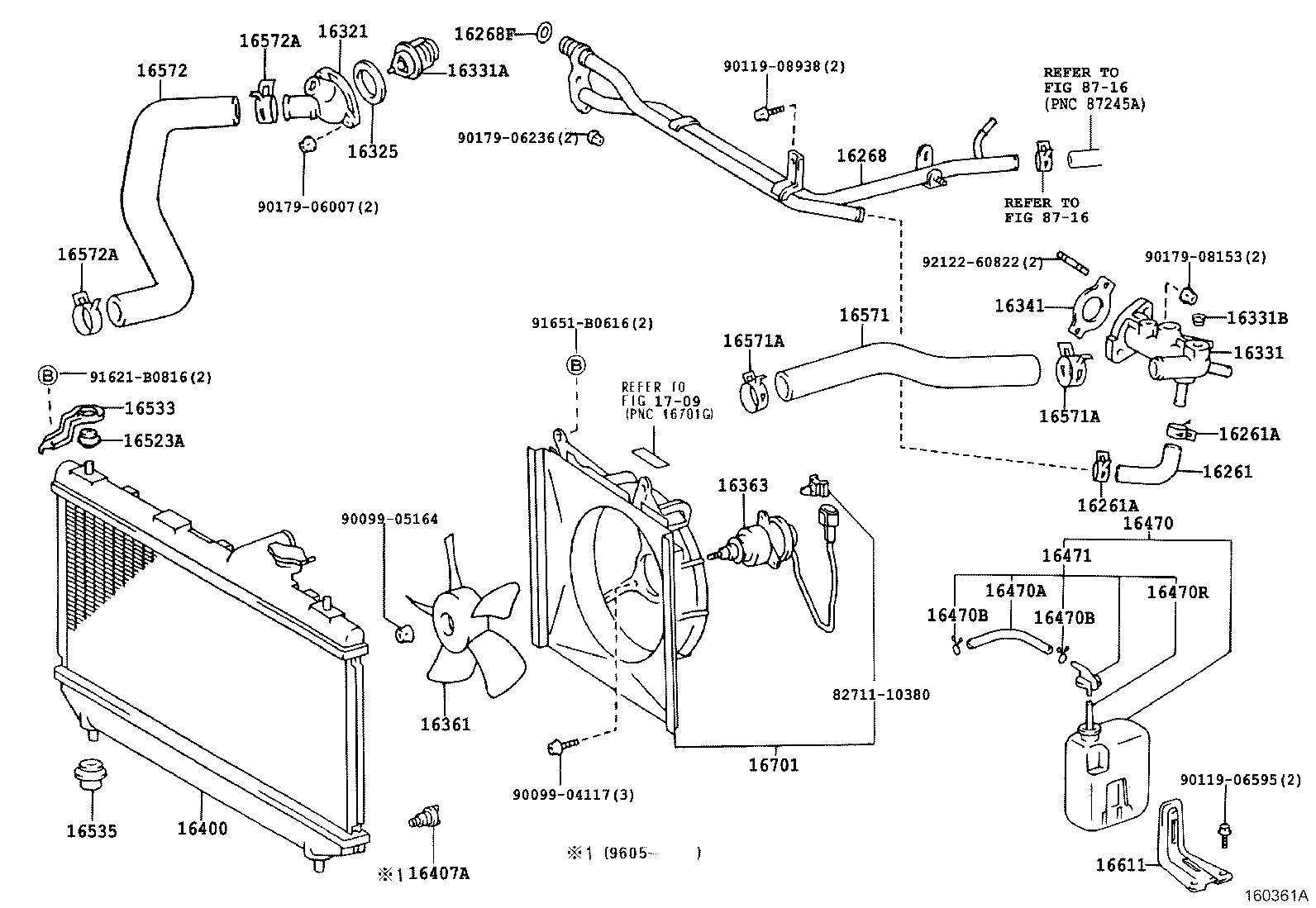

ILLUST NO. 1 OF 2(9406- )3SFE,4SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-74010 |
3SFE,4SFE..SV4# |
1 | ||
| 16261-74100 |
3SFE,4SFE..SV4# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-22003 |
3SFE,4SFE..SV4# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-22003 |
3SFE,4SFE..SV4# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-74190 |
3SFE,4SFE..SV4# |
1 | ||
| 16268-74153 |
3SFE,4SFE..SV4# |
1 | ||
| 16268-74152 |
3SFE,4SFE..SV4# |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24017 |
3SFE,4SFE..SV4# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-74030 |
3SFE,4SFE..SV4# |
1 | ||
| 16321-74050 |
3SFE,4SFE..SV4# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63011 |
3SFE,4SFE..SV4# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-74170 |
3SFE,4SFE..SV4# |
1 | ||
| 16331-74210 |
3SFE,4SFE..SV4# |
1 | ||
| 16331-74210 |
3SFE,4SFE..SV4# 有り(PNC 16331B) |
1 | ||
| 16331-74260 |
3SFE,4SFE..SV4# 有り(PNC 16331B) |
1 | ||
| 16331-74220 |
3SFE,4SFE..SV4# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03090 |
3SFE,4SFE..SV4# *WAX 82−95 |
1 | ||
| 90916-03046 |
3SFE,4SFE..SV4# *WAX 82−95 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90345-53009 |
3SFE,4SFE..SV4# |
1 | ||
| 90345-53007 |
3SFE,4SFE..SV4# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-74020 |
3SFE,4SFE..SV4# |
1 | ||
| 16361 - FAN | ||||
| 16361-74060 |
3SFE..SV43..HT..MTM;3SFE..SV43..SED..ATM;3SFE,4SFE..SV40,41,42..ATM |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-11020 |
3SFE..SV43..HT..MTM;3SFE..SV43..SED..ATM;3SFE,4SFE..SV40,41,42..ATM |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-7A140 |
4SFE..SV40..ATM |
1 | ||
| 16407A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16407-7A130 |
3SFE,4SFE..SV4# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-74290 |
3SFE,4SFE..SV4# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3SFE,4SFE..SV4# *H,L=180 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3SFE,4SFE..SV4# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3SFE,4SFE..SV4# |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3SFE,4SFE..SV4# *H,L=180 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-74280 |
3SFE,4SFE..SV4# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-74010 |
3SFE,4SFE..SV4# |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-74280 |
3SFE,4SFE..SV4# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74200 |
3SFE,4SFE..SV4# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-74380 |
3SFE,4SFE..SV4# |
1 | ||
| 16571-74320 |
3SFE,4SFE..SV4# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
3SFE,4SFE..SV4# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
3SFE,4SFE..SV4# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-74260 |
3SFE,4SFE..SV4# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
3SFE,4SFE..SV4# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
3SFE,4SFE..SV4# |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-74150 |
3SFE,4SFE..SV4# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-74560 |
3SFE..SV43..HT..MTM;3SFE..SV43..SED..ATM;3SFE,4SFE..SV40,41,42..ATM |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90119-06595 | ||||
| 90119-08938 | ||||
| 90179-06007 | ||||
| 90179-06236 | ||||
| 90179-08153 | ||||
| 91621-B0816 | ||||
| 91651-B0616 | ||||
| 92122-60822 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8716 | ||||

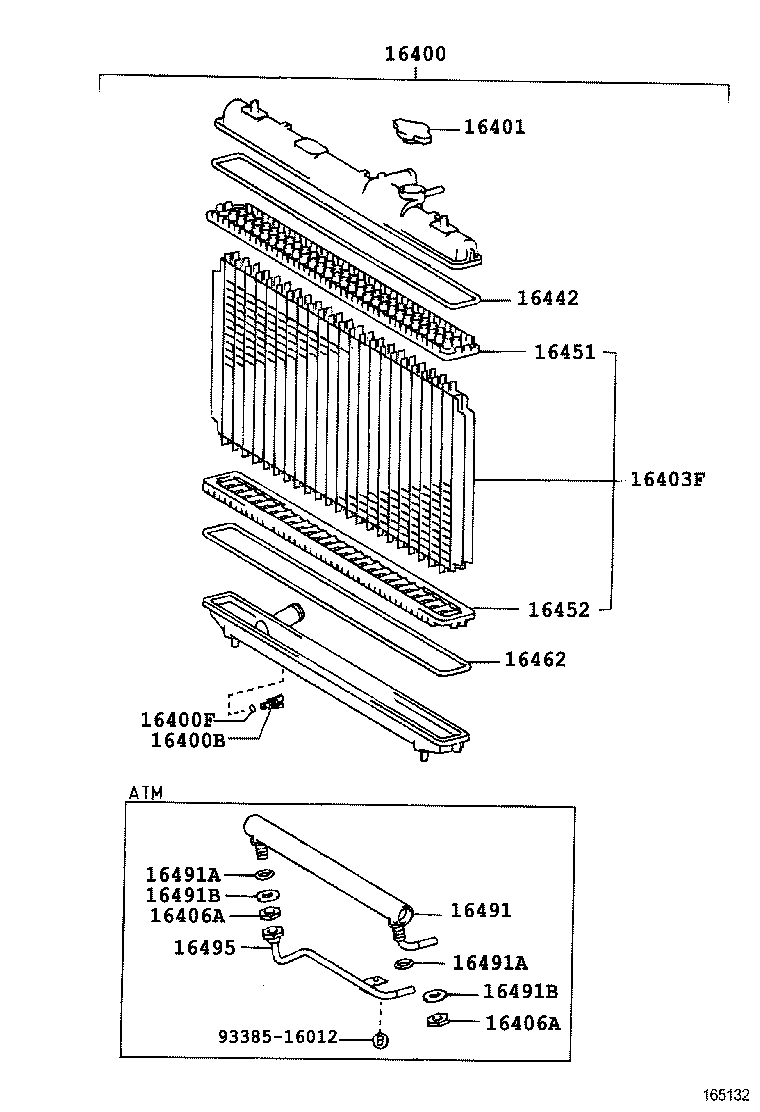

ILLUST NO. 2 OF 2(9406- )3SFE,4SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-7A140 |
4SFE..SV40..ATM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
3SFE,4SFE..SV4# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
3SFE,4SFE..SV4# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
3SFE,4SFE..SV4# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-74670 |
4SFE..SV40..ATM;3SFE..SV43..MTM |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-74520 |
3SFE,4SFE..SV40,41,42..ATM |
2 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-74520 |
3SFE,4SFE..SV40,41,42..ATM |
2 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-74670 |
4SFE..SV40;3SFE..SV43..MTM |
1 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-74670 |
4SFE..SV40;3SFE..SV43..MTM |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-74670 |
4SFE..SV40;3SFE..SV43..MTM |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-74670 |
3SFE,4SFE..SV4# |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-74680 |
3SFE,4SFE..SV40,41,42..ATM |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-62060 |
3SFE,4SFE..SV4#..ATM |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-62060 |
3SFE,4SFE..SV4#..ATM |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-74520 |
3SFE,4SFE..SV40,41,42..ATM |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-74520 |
3SFE,4SFE..SV40,41,42..ATM |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-7A150 |
3SFE,4SFE..SV40,41,42..ATM |
1 | ||
| Common parts | ||||
| 93385-16012 | ||||
