SV40-AEMMK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9406- )

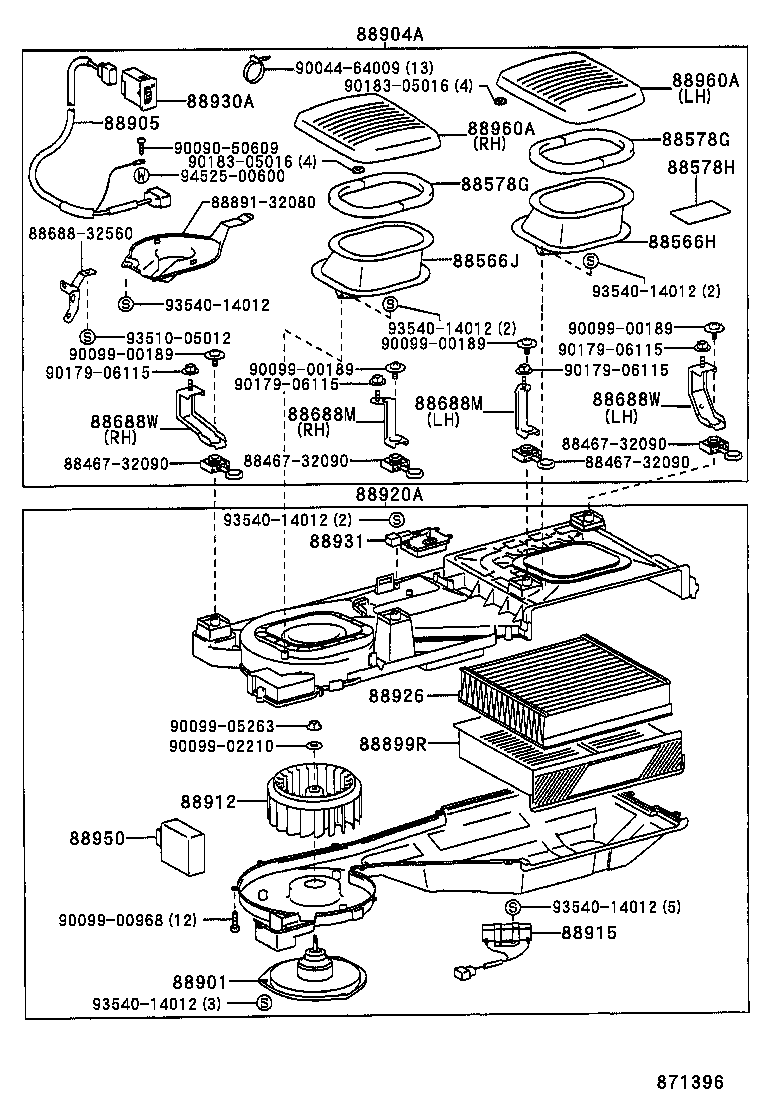

Click highlighted areas on diagram

diagram 8846732090 8846732090 8846732090 8846732090 88566H 88566J 88578G 88578G 88578H 8868832560 88688M 88688M 88688W 88688W 8889132080 88899R 88901 88904A 88905 88912 88915 88920A 88926 88930A 88931 88950 88960A 88960A 9004464009 9009050609 9009900189 9009900189 9009900189 9009900189 9009900968 9009902210 9009905263 9017906115 9017906115 9017906115 9017906115 9018305016 9018305016 9351005012 9354014012 9354014012 9354014012 9354014012 9354014012 9354014012 9452500600
Part # Description Qty Price
88566H - DUCT, AIR, NO.1
88566-32110

CV4#,SV4#..SED

 1
88566J - DUCT, AIR, NO.2
88566-32110

CV4#,SV4#..SED

 1
88578G - PACKING, AIR PURIFIER, NO.1
88578-32080

CV4#,SV4#..SED

 2
88578G - PACKING, AIR PURIFIER, NO.1
88578-32080

CV4#,SV4#..SED

 2
88578H - PACKING, AIR PURIFIER, NO.2
88578-30370

CV4#,SV4#..SED

 6
88688M - BRACKET, AIR PURIFIER, NO.2
88688-32590

CV4#,SV4#..SED

右側

 1
88688-32580

CV4#,SV4#..SED

左側

 1
88688M - BRACKET, AIR PURIFIER, NO.2
88688-32590

CV4#,SV4#..SED

右側

 1
88688-32580

CV4#,SV4#..SED

左側

 1
88688W - BRACKET, AIR PURIFIER, NO.1
88688-32570

CV4#,SV4#..SED

 2
88688W - BRACKET, AIR PURIFIER, NO.1
88688-32570

CV4#,SV4#..SED

 2
88899R - FRAME, AIR PURIFIER
88899-50011

CV4#,SV4#

 1
88901 - MOTOR SUB-ASSY, AIR PURIFIER
88901-22310

CV4#,SV4#

 1
88904A - ACCESSORY SUB-ASSY, AIR PURIFIRE
88904-32230B0

CV4#,SV4#..SED

SHADOW GRAY,TRIM1#

 1
88904-32230E0

CV4#,SV4#..LUM,XJ,ZX

OAK,TRIM4#

 1
88905 - WIRE SUB-ASSY, AIR PURIFIER, NO.1
88905-32220

CV4#,SV4#

 1
88912 - FAN, AIR PURIFIER
88912-22310

CV4#,SV4#

 1
88915 - RESISTOR, AIR PURIFIER
88915-22310

CV4#,SV4#

 1
88920A - PURIFIER ASSY, AIR
88920-32230

CV4#,SV4#

 1
88926 - FILTER, AIR PURIFIER
88926-50011

CV4#,SV4#

 1
88930A - SWITCH ASSY, AIR PURIFIER
88930-32030

CV4#,SV4#

 1
88931 - SENSOR, SMOKE
88931-33010

CV4#,SV4#

 1
88950 - AMPLIFIER ASSY, AIR PURIFIER
88950-22310

CV4#,SV4#

 1
88960A - GRILLE ASSY, AIR PURIFIER
88960-32230B0

CV4#,SV4#

SHADOW GRAY,TRIM1#,左側

 1
88960-32240B0

CV4#,SV4#

SHADOW GRAY,TRIM1#,右側

 1
88960-32230E0

CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX

OAK,TRIM4#,左側

 1
88960-32240E0

CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX

OAK,TRIM4#,右側

 1
88960A - GRILLE ASSY, AIR PURIFIER
88960-32230B0

CV4#,SV4#

SHADOW GRAY,TRIM1#,左側

 1
88960-32240B0

CV4#,SV4#

SHADOW GRAY,TRIM1#,右側

 1
88960-32230E0

CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX

OAK,TRIM4#,左側

 1
88960-32240E0

CV4#,SV4#..ETO,LUM,VJ,VX,XJ,ZX

OAK,TRIM4#,右側

 1
Common parts
88467-32090
88688-32560
88891-32080
90044-64009
90090-50609
90099-00189
90099-00968
90099-02210
90099-05263
90179-06115
90183-05016
93510-05012
93540-14012
94525-00600
