SV40-AEMMK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9406- )SV4#

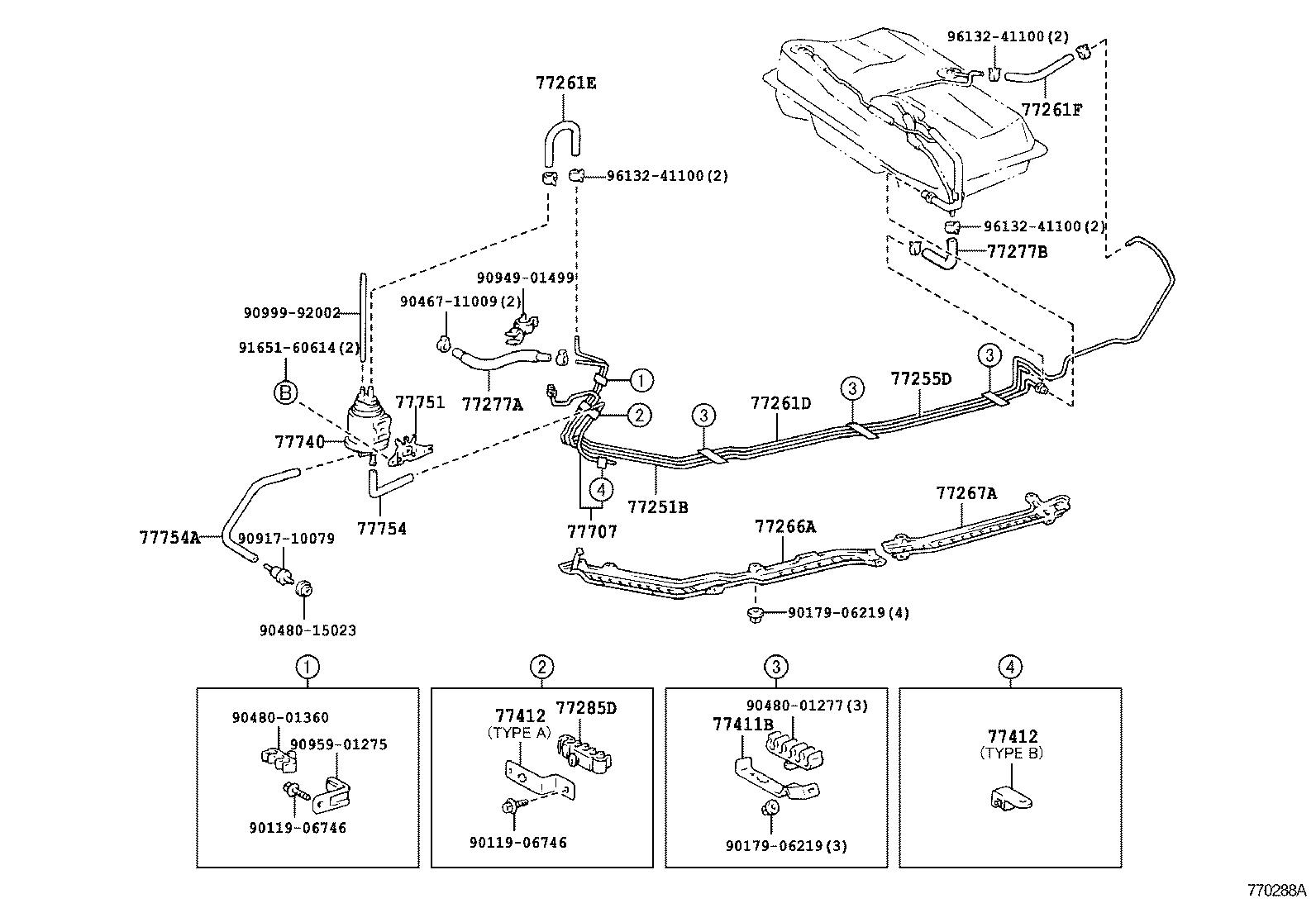

Click highlighted areas on diagram

diagram 77251B 77255D 77261D 77261E 77261F 77266A 77267A 77277A 77277B 77285D 77411B 77412 77412 77707 77740 77751 77754 77754A 9011906746 9011906746 9017906219 9017906219 9046711009 9048001277 9048001360 9048015023 9091710079 9094901499 9095901275 9099992002 9165160614 9613241100 9613241100 9613241100
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-32180

SV40,41,42

 1
77255D - TUBE, FUEL RETURN
77255-32120

CV4#,SV4#

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-32110

SV4#

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020

SV4#

*H,L=200

 1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020

SV4#

*H,L=170

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-32030

CV4#,SV4#

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-32040

CV4#,SV4#

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12085

SV4#

長さ=320

 1
90447-12141

SV4#

長さ=320

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95334-06014

SV40,41,42

*H,L=140

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-32030

CV4#,SV4#

 1
77411B - SUPPORT, FUEL TUBE GROMMET, NO.1
77411-32010

CV4#,SV4#

 3
77412 - SUPPORT, FUEL TUBE GROMMET, NO.2
77412-32010

CV40,SV4#

ﾀｲﾌﾟ A

 1
77412-32020

SV4#

ﾀｲﾌﾟ B

 1
77412-32020

SV4#

TYPE B

 1
77412-32010

CV4#,SV4#

 1
77412 - SUPPORT, FUEL TUBE GROMMET, NO.2
77412-32010

CV40,SV4#

ﾀｲﾌﾟ A

 1
77412-32020

SV4#

ﾀｲﾌﾟ B

 1
77412-32020

SV4#

TYPE B

 1
77412-32010

CV4#,SV4#

 1
77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET
77707-32010

SV4#

 1
77740 - CANISTER ASSY, CHARCOAL
77704-32070

SV4#

 1
77704-32071

SV4#

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-32081

SV4#

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-32110

SV4#

 1
77754A - HOSE, CHARCOAL CANISTER OUTLET, NO.2
77754-32100

SV4#

 1
Common parts
90119-06746
90179-06219
90467-11009
90480-01277
90480-01360
90480-15023
90917-10079
90949-01499
90959-01275
90999-92002
91651-60614
96132-41100

ILLUST NO. 1 OF 2(9406- )CV40,SV40,41,42

Click highlighted areas on diagram

diagram 2211 2211 77011 77012A 77013 77014A 77014B 77014B 77017B 77023 77035 77037 77100 77169B 77178 77179A 77179A 77179A 77201 77201A 77204A 77213B 77216A 77217A 77219 77219 77251D 77255F 77277R 77290 77293A 77310A 77316 77350 77366 77380 77391 77420 77601B 77602B 77611A 77651A 77651A 77651A 77651A 77651A 77651A 77651A 77651A 77681 77682 9011906351 9011906351 9011906398 9011908511 9011910477 9011910477 9015940155 9015940155 9015940155 9015950217 9015950219 9015950219 9017910112 9026905034 9033907016 9046022002 9046046003 9046707164 9046712039 9046712039 9046712056 9046713061
Part # Description Qty Price
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-32040

CV4#,SV4#

 1
77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77012-32070

CV40,SV40,41,42

 1
77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2
77013-32050

CV40,SV40,41,42

 1
77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3
77014-32060

CV40,SV40,41,42

 1
77014B - HOSE, FUEL (FOR FUEL TANK BREATHER TUBE)
95333-06010

CV4#,SV4#

*H,L=80

 2
77014B - HOSE, FUEL (FOR FUEL TANK BREATHER TUBE)
95333-06010

CV4#,SV4#

*H,L=80

 2
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-32170

CV4#,SV4#..SED

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-14020

CV40,SV4#

 1
77037-32030

CV4#,SV4#

 1
77100 - TANK ASSY, FUEL
77001-39306

CV40,SV40,41,42

 1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-20030

CV4#,SV4#

 1
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010

CV4#,SV4#

 3
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010

CV4#,SV4#

 3
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010

CV4#,SV4#

 3
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-32150

CV4#,SV4#

 1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
90445-22024

CV40,SV40,41,42

長さ=220

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-32050

CV40,SV40,41,42

 1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-33010

CV40,SV40,41,42

 1
77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2
77217-33010

CV40,SV40,41,42

 1
77219 - COVER, FUEL TANK FILLER PIPE
77219-32030

CV4#,SV4#

 2
77219 - COVER, FUEL TANK FILLER PIPE
77219-32030

CV4#,SV4#

 2
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-32060

CV4#,SV4#

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77290-32040

CV4#,SV4#..SED

 1
77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3
77293-32030

CV4#,SV4#..SED

 1
77310A - CAP ASSY, FUEL TANK
77310-16011

SV4#

 1
77310-48010

SV4#

 1
77316 - GASKET, FUEL TANK CAP
77316-16010

CV4#,SV4#

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-32090

CV4#,SV4#..SED

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-17010

CV4#,SV4#..SED

 1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010

CV4#,SV4#

 1
77391 - RING, FUEL INLET BOX
77391-16011

CV4#,SV4#

 1
77420 - VALVE ASSY, FUEL CUT OFF, NO.2
77420-26010

CV4#,SV4#

 2
77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH
77601-32090

CV40,SV40,41,42

 1
77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH
77602-32080

CV40,SV40,41,42

 1
77611A - PIN (FOR FUEL TANK BAND)
90250-08019

CV4#,SV4#

 2
77651A - CUSHION, FUEL TANK, NO.1
77651-32050

CV4#,SV4#

 8
77651A - CUSHION, FUEL TANK, NO.1
77651-32050

CV4#,SV4#

 8
77651A - CUSHION, FUEL TANK, NO.1
77651-32050

CV4#,SV4#

 8
77651A - CUSHION, FUEL TANK, NO.1
77651-32050

CV4#,SV4#

 8
77651A - CUSHION, FUEL TANK, NO.1
77651-32050

CV4#,SV4#

 8
77651A - CUSHION, FUEL TANK, NO.1
77651-32050

CV4#,SV4#

 8
77651A - CUSHION, FUEL TANK, NO.1
77651-32050

CV4#,SV4#

 8
77651A - CUSHION, FUEL TANK, NO.1
77651-32050

CV4#,SV4#

 8
77681 - SEAT, FUEL TANK BAND, RH
77681-32060

CV4#,SV4#

 1
77681-32060

CV40,SV40,41,42

 1
77682 - SEAT, FUEL TANK BAND, LH
77681-32060

CV4#,SV4#

 1
Common parts
90119-06351
90119-06398
90119-08511
90119-10477
90159-40155
90159-50217
90159-50219
90179-10112
90269-05034
90339-07016
90460-22002
90460-46003
90467-07164
90467-12039
90467-12056
90467-13061
Linked diagrams
2211
