SV40-AEMDK (1994)

Toyota Camry/Vista

Production Jun 1994 - Jun 1998
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

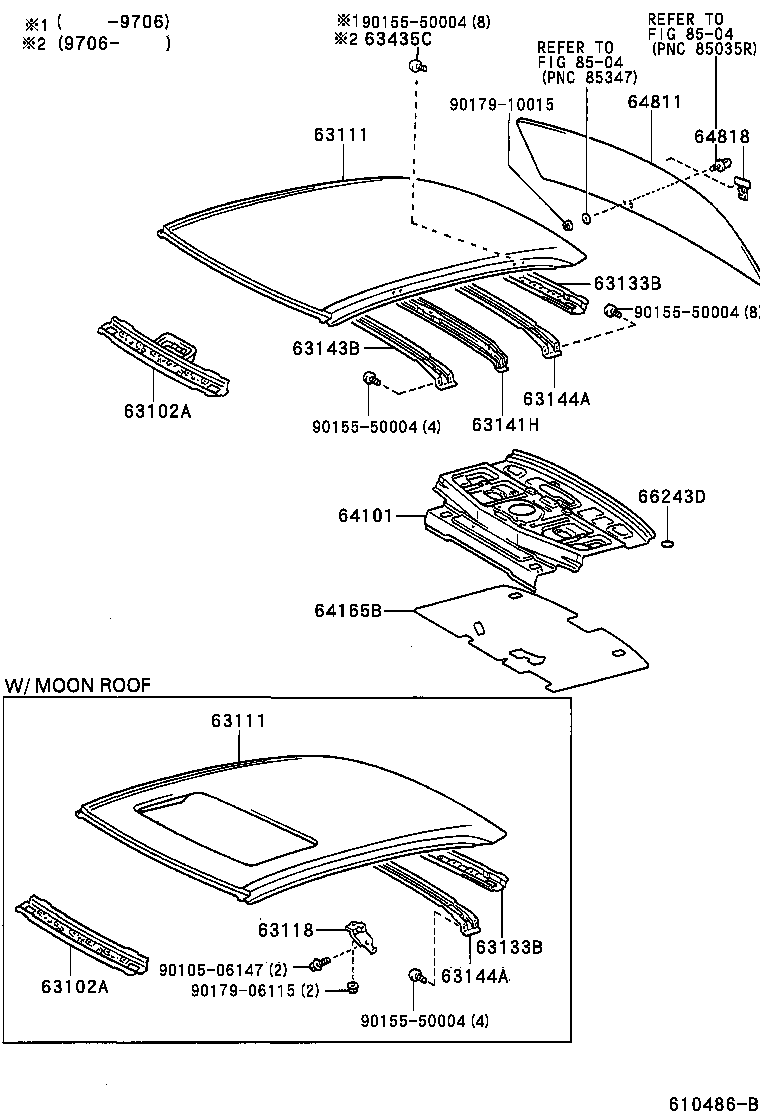

ILLUST NO. 1 OF 2(9406- )SED

Click highlighted areas on diagram

diagram 63102A 63102A 63111 63111 63118 63133B 63133B 63141H 63143B 63144A 63144A 63435C 64101 64165B 64811 64818 66243D 8504 8504 9010506147 9015550004 9015550004 9015550004 9015550004 9017906115 9017910015
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-32140

CV40,SV40..XJ

 1
63102-32150

CV4#,SV4#..SED

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-32140

CV40,SV40..XJ

 1
63102-32150

CV4#,SV4#..SED

 1
63111 - PANEL, ROOF
63111-32160

CV4#,SV4#..SED

 1
63111 - PANEL, ROOF
63111-32160

CV4#,SV4#..SED

 1
63133B - FRAME, BACK WINDOW
63133-32060

CV4#,SV4#..SED

 1
63133B - FRAME, BACK WINDOW
63133-32060

CV4#,SV4#..SED

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-32080

CV4#,SV4#..SED

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-32050

CV4#,SV4#..SED

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-32050

CV4#,SV4#..SED

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-32050

CV4#,SV4#..SED

 1
63435C - SEAL, ROOF CARRIER, NO.1 RH
63435-12030

CV4#,SV4#..SED

 8
64101 - PANEL SUB-ASSY, UPPER BACK
64101-32200

CV4#,SV4#..SED

 1
64165B - COVER, UPPER BACK PANEL HOLE, NO.1
64165-32060

CV4#,SV4#..SED

 1
64165-32030

CV4#,SV4#..SED

 1
64811 - GLASS, BACK WINDOW
64811-32480

CV4#,SV4#..ALPX,LUM,XJ,ZX

*EHTT,厚さ=3.1,ﾌﾞﾙｰ

 1
64811-32460

CV4#,SV4#..ALPX,LUM,XJ,ZX

*EHTT,厚さ=3.1,ﾌﾞﾛﾝｽﾞ,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
64811-32570

CV4#,SV4#..ALPX,LUM,XJ,ZX

*UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
64811-32905

CV4#,SV4#..SED..(LUM,TOU,XJ)

*UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ)

 1
64811-32902

CV4#,SV4#..ALPX,LUM,XJ,ZX

*EHTT,厚さ=3.1,ﾌﾞﾛﾝｽﾞ,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ & ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ )

 1
64818 - SPACER, BACK WINDOW GLASS
56115-32010

CV4#,SV4#..SED

 2
66243D - PROTECTOR, REAR BODY, NO.1
66243-20010

CV4#,SV4#..SED

 2
Common parts
90105-06147
90155-50004
90179-06115
90179-10015
Linked diagrams
8504

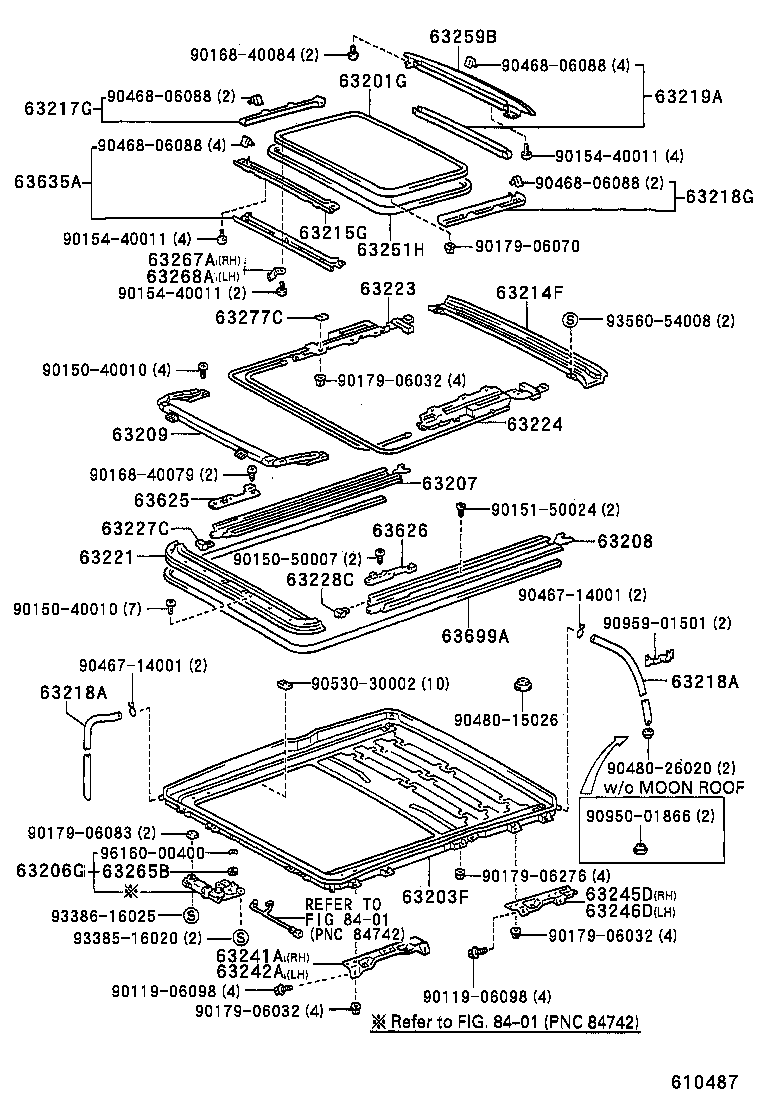

ILLUST NO. 2 OF 2(9406- )

Click highlighted areas on diagram

diagram 63201G 63203F 63206G 63207 63208 63209 63214F 63215G 63217G 63218A 63218A 63218G 63219A 63221 63223 63224 63227C 63228C 63241A 63242A 63245D 63246D 63251H 63259B 63265B 63267A 63268A 63277C 63625 63626 63635A 63699A 8401 9011906098 9011906098 9015040010 9015040010 9015050007 9015150024 9015440011 9015440011 9015440011 9016840079 9016840084 9017906032 9017906032 9017906032 9017906070 9017906083 9017906276 9046714001 9046714001 9046806088 9046806088 9046806088 9046806088 9048015026 9048026020 9053030002 9095001866 9095901501 9338516020 9338616025 9356054008 9616000400
Part # Description Qty Price
Common parts
90119-06098
90150-40010
90150-50007
90151-50024
90154-40011
90168-40079
90168-40084
90179-06032
90179-06070
90179-06083
90179-06276
90467-14001
90468-06088
90480-15026
90480-26020
90530-30002
90950-01866
90959-01501
93385-16020
93386-16025
93560-54008
96160-00400
Linked diagrams
8401
