Toyota Camry/vista SV35 CLUTCH PEDAL & FLEXIBLE HOSE

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-32140	CV30,SV35,VZV30,31..5F WHITE PAINTED	07/1990 - 06/1992	1
31301-32140	CV30,SV35..5F	06/1992 - 06/1994	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-07020	CV30,SV32,33,35,VZV30,31..5F	07/1990 - 06/1994	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	CV30,SV3#,VZV30,31..5F	07/1990 - 06/1994	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	CV30,SV3#,VZV30,31..5F	07/1990 - 06/1994	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369	CV30,SV3#,VZV30,31..5F	07/1990 - 06/1994	1
31301S - CUSHION, NO.2(FOR CLUTCH PEDAL)
90541-06008	CV30,SV3#,VZV30,31..5F	02/1991 - 06/1994	1
90541-06032	CV30,SV3#,VZV3#..5F	07/1990 - 02/1991	1
31321 - PAD, CLUTCH PEDAL
31321-14020	CV30,SV3#,VZV30,31..5F	07/1990 - 06/1994	1
31324 - SHAFT, CLUTCH PEDAL
90101-10273	CV30,SV32,33,35,VZV30,31..5F	07/1990 - 06/1994	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003	CV30,SV3#,VZV30,31..5F	07/1990 - 06/1994	1
31354 - SEAT, CLUTCH PEDAL SPRING, UPPER
31354-20030	CV30,SV32,33,35,VZV30,31..5F	07/1990 - 06/1994	1
31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90386-10019	CV30,SV32,33,35,VZV30,31..5F	07/1990 - 06/1994	1
31354B - PIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90249-10127	CV30,SV32,33,35,VZV30,31..5F	07/1990 - 06/1994	1
31355 - SEAT, CLUTCH PEDAL SPRING, LOWER
31355-20030	CV30,SV32,33,35,VZV30,31..5F	07/1990 - 06/1994	1
31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)
90501-40026	CV30,SV32,33,35,VZV30,31..5F	07/1990 - 06/1994	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08143	CV30,SV3#,VZV30,31..5F 長さ=30	07/1990 - 06/1994	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08036	CV30,SV3#,VZV30,31..5F	07/1990 - 06/1994	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-32110	CV30,SV3#,VZV30,31..5F	07/1990 - 06/1994	1
Common parts
90468-16142
91651-60820
91655-60835
94110-51000
94120-41000
94512-01000
96160-00800

Part #	Description	Period	Qty
31418 - HOSE, CLUTCH
90931-01083	SV3#,VZV30,31..5F	07/1990 - 06/1994	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-32120	CV30,SV3#,VZV30,31..5F	07/1990 - 06/1994	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-32110	SV32,33,35..5F..(ETO,LUM,VE,VX,ZV,ZX)	07/1990 - 06/1994	1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-32080	CV30,SV3#,VZV30,31..5F	07/1990 - 06/1994	1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-20320	SV35,VZV30,31..5F	07/1990 - 06/1994	1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-20320	SV35,VZV30,31..5F	07/1990 - 06/1994	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-32110	SV3#..5F	07/1990 - 06/1994	1
Common parts
90461-06055
91611-40612
91611-60816
96991-10080

SV35-BEMNK (1990)

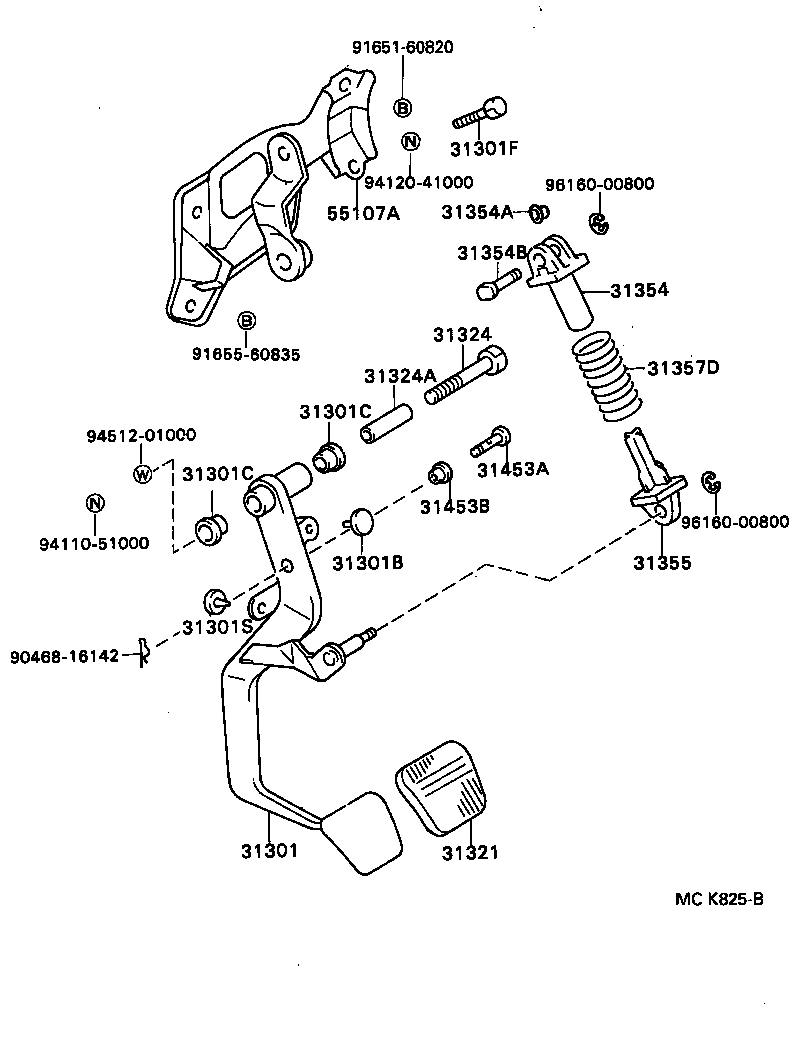

ILLUST NO. 1 OF 2(9007- )CV30,SV32,33,35,VZV3#

ILLUST NO. 2 OF 2(9007- )
