SV35-BEMGK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1994
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007- )SV35

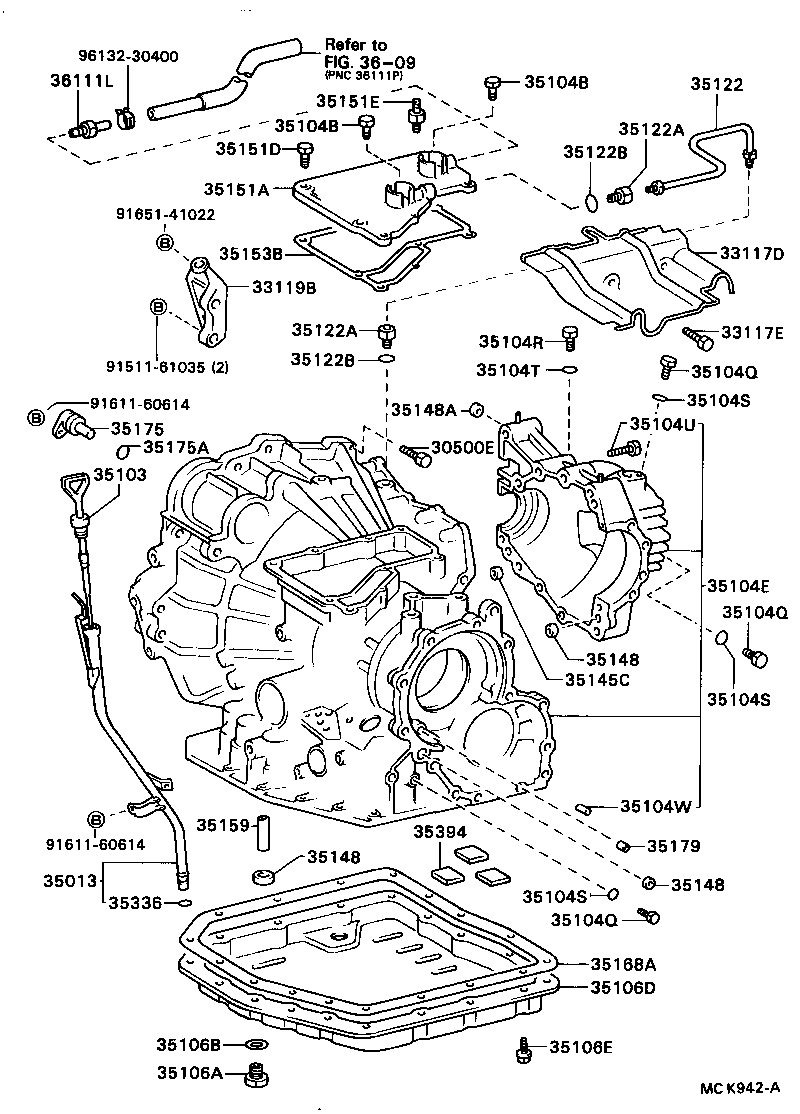

Click highlighted areas on diagram

A540H

diagram 30500E 33117D 33117E 33119B 35013 35103 35104B 35104B 35104E 35104Q 35104Q 35104Q 35104R 35104S 35104S 35104S 35104T 35104U 35104W 35106A 35106B 35106D 35106E 35122 35122A 35122A 35122B 35122B 35145C 35148 35148 35148 35148A 35151A 35151D 35151E 35153B 35159 35168A 35175 35175A 35179 35336 35394 3609 36111L 9151161035 9161160614 9161160614 9165141022 9613230400
Part # Description Qty Price
Common parts
91511-61035
91611-60614
91651-41022
96132-30400
Linked diagrams
3609
