SV33-BTPVF (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 3SGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007- )CV30,SV30,32,33

Click highlighted areas on diagram

A140E,A140L

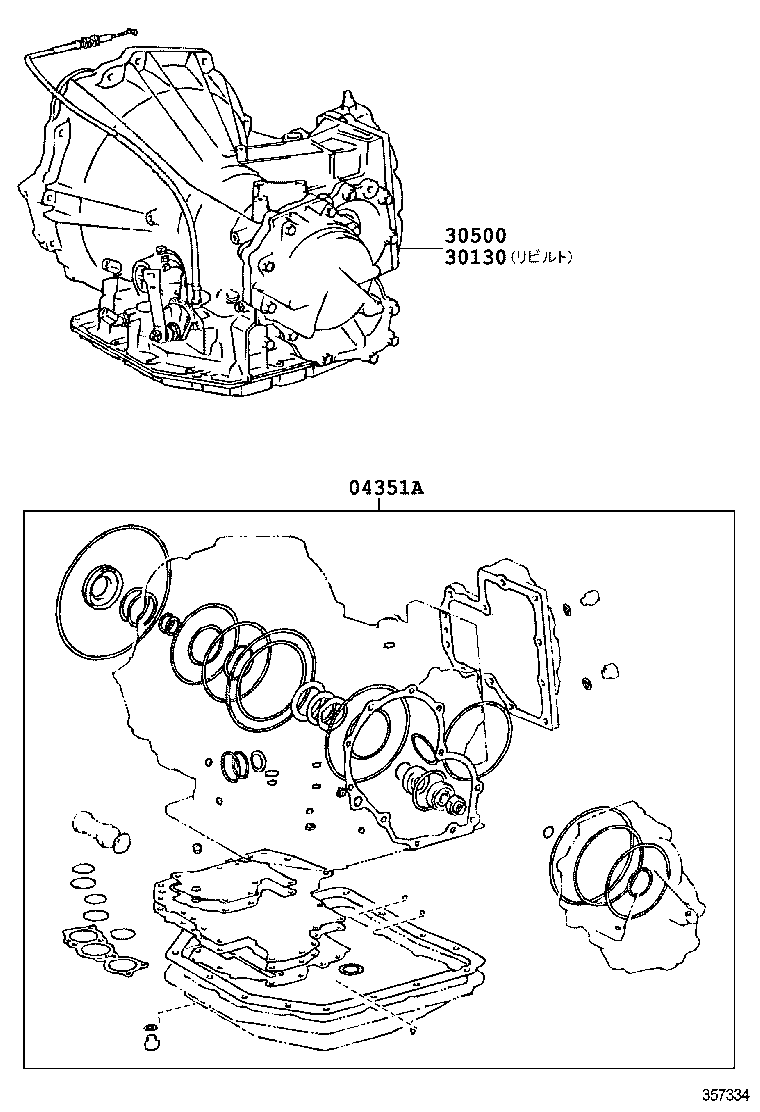

diagram 04351A 30130 30500
Part # Description Qty Price
04351A - GASKET KIT, TRANSAXLE OVERHAUL(ATM)
04351-20090

SV32,33..4FC

 1
04351-32052

VZV32,33

 1
30130 - TRANSAXLE ASSY, REBUILT
30130-32610

VZV32,33

 1
30130-32571

SV32,33..4FC..GT

 1
30130-32571

SV32,33..4FC..GT

 1
30130-32570

SV32,33..4FC..GT

 1
30130-32611

VZV32,33

 1
30500 - TRANSAXLE ASSY, AUTOMATIC
30110-32570

SV32,33..4FC..GT

A140E

 1
30500-32610

VZV32,33

A540E

 1
30110-32571

SV32,33..4FC..GT

A140E

 1
30500-32611

VZV32,33

A540E

 1
30500-32571

SV32,33..4FC..GT

A140E

 1
