SV33-BTPVF (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 3SGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9206)3SGE

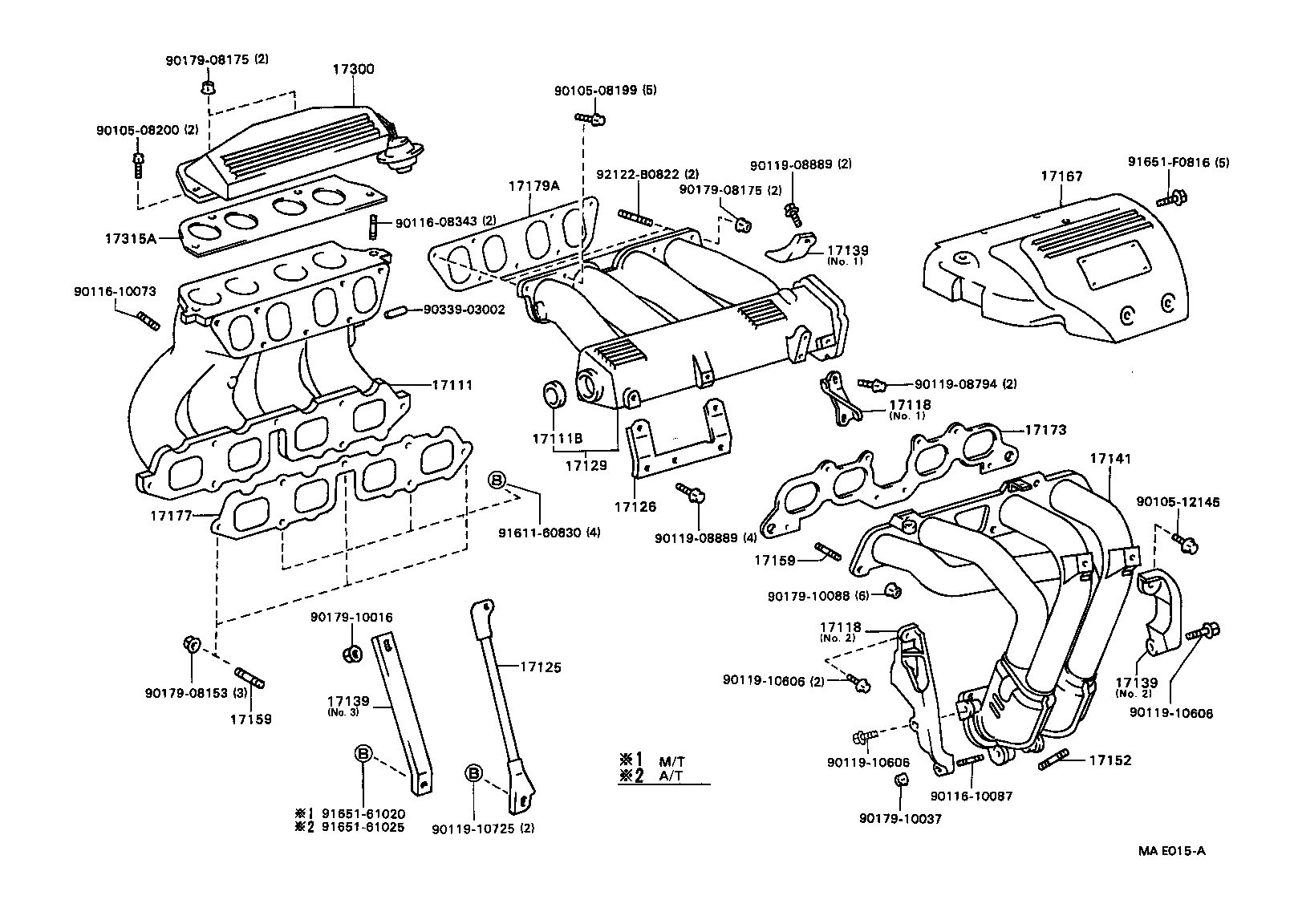

Click highlighted areas on diagram

diagram 17111 17111B 17118 17118 17125 17126 17129 17139 17139 17139 17141 17152 17159 17159 17167 17173 17177 17179A 17300 17315A 9010508199 9010508200 9010512145 9011608343 9011610073 9011610087 9011908794 9011908889 9011908889 9011910606 9011910606 9011910606 9011910725 9017908153 9017908175 9017908175 9017910016 9017910037 9017910088 9033903002 9161160830 9165161020 9165161025 91651F0816 92122B0822
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-74140

3SGE..SV32,33

 1
17111B - PLUG, NO.2
96411-44000

3S#,4SFE..SV3#

 1
17118 - STAY, MANIFOLD
17118-74130

3SGE..SV32,33

NO.1

 1
17118-74140

3SGE..SV32,33

NO.2

 1
17118 - STAY, MANIFOLD
17118-74130

3SGE..SV32,33

NO.1

 1
17118-74140

3SGE..SV32,33

NO.2

 1
17125 - STAY, SURGE TANK, NO.1
17125-74040

3SGE..SV32,33

 1
17126 - STAY, SURGE TANK, NO.2
17126-74010

3SGE..SV32,33

 1
17129 - TANK, INTAKE AIR SURGE
17109-74040

3SGE..SV32,33

 1
17139 - STAY, MANIFOLD, NO.2
17139-74050

3SGE..SV32,33

NO.1

 1
17139-74071

3SGE..SV32,33

NO.2

 1
17139-74090

3SGE..SV32,33..4FC

NO.3

 1
17139 - STAY, MANIFOLD, NO.2
17139-74050

3SGE..SV32,33

NO.1

 1
17139-74071

3SGE..SV32,33

NO.2

 1
17139-74090

3SGE..SV32,33..4FC

NO.3

 1
17139 - STAY, MANIFOLD, NO.2
17139-74050

3SGE..SV32,33

NO.1

 1
17139-74071

3SGE..SV32,33

NO.2

 1
17139-74090

3SGE..SV32,33..4FC

NO.3

 1
17141 - MANIFOLD, EXHAUST
17141-74110

3SGE..SV32,33

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

3S#..SV32,33,35

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063

3S#,4SFE..SV3#

EXHAUST MANIFOLD

 6
90116-08242

3SGE..SV32,33

INTAKE MANIFOLD

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063

3S#,4SFE..SV3#

EXHAUST MANIFOLD

 6
90116-08242

3SGE..SV32,33

INTAKE MANIFOLD

 3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-74150

3SGE..SV32,33

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-74040

3S#,4SFE..SV3#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-74060

3SGE..SV32,33

 1
17179A - GASKET, INTAKE MANIFOLD, NO.2
17171-74020

3SGE..SV32,33

 1
17300 - VALVE ASSY, INTAKE AIR CONTROL
17300-74010

3SGE..SV32,33

 1
17315A - GASKET, INTAKE AIR CONTROL VALVE
17315-74010

3SGE..SV32,33

 1
Common parts
90105-08199
90105-08200
90105-12145
90116-08343
90116-10073
90116-10087
90119-08794
90119-08889
90119-10606
90119-10725
90179-08153
90179-08175
90179-10016
90179-10037
90179-10088
90339-03002
91611-60830
91651-61020
91651-61025
91651-F0816
92122-B0822
