SV33-BTMVF (1990)
Toyota Camry/Vista

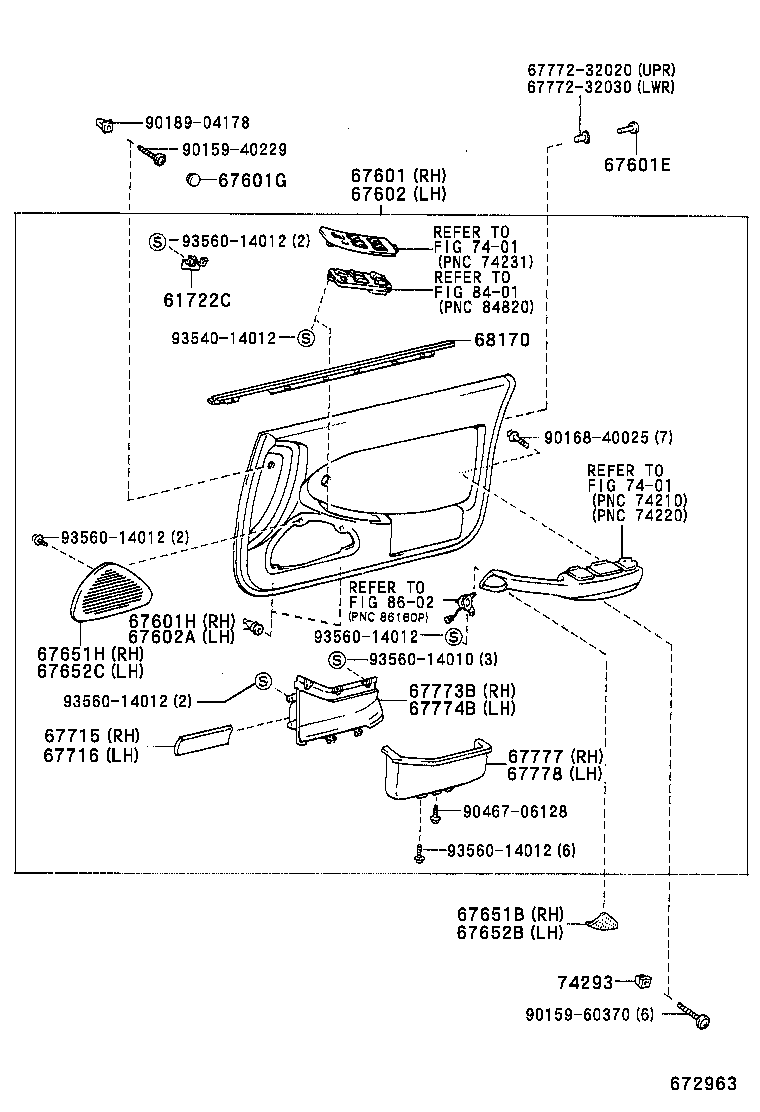

(9007- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61722C - BRACKET, SWITCH PLATE | ||||
| 61722-32010 |
CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-3271003 |
SV32,33..HT..GT MEDIUM GRAY,TRIM1# |
1 | ||
| 67650-3271006 |
SV32,33..HT..GT SABLE,TRIM4# |
1 | ||
| 67650-3271002 |
SV32,33..HT..GT TAUPE,TRIM9# |
1 | ||
| 67650-3281003 |
SV32,33..HT..GT ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),MEDIUM GRAY,TRIM1# |
1 | ||
| 67650-3281006 |
SV32,33..HT..GT ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67650-3281002 |
SV32,33..HT..GT ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),TAUPE,TRIM9# |
1 | ||
| 67650-3284002 |
SV32,33..HT..GT ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),TAUPE,TRIM9# |
1 | ||
| 67650-3284006 |
SV32,33..HT..GT ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67650-3272003 |
VZV32,33 MEDIUM GRAY,TRIM1# |
1 | ||
| 67650-3272006 |
VZV32,33 SABLE,TRIM4# |
1 | ||
| 67650-3284003 |
SV32,33..HT..GT ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),MEDIUM GRAY,TRIM1# |
1 | ||
| 67650-3282002 |
VZV32,33 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),TAUPE,TRIM9# |
1 | ||
| 67650-3272002 |
VZV32,33 TAUPE,TRIM9# |
1 | ||
| 67650-3282003 |
VZV32,33 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),MEDIUM GRAY,TRIM1# |
1 | ||
| 67650-3285002 |
VZV32,33 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),TAUPE,TRIM9# |
1 | ||
| 67650-3285003 |
VZV32,33 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),MEDIUM GRAY,TRIM1# |
1 | ||
| 67650-32870B0 |
VZV32,33 ｱﾘ(ﾚｻﾞ- ｼ-ﾄ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ)-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 67650-3282006 |
VZV32,33 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67650-3285006 |
VZV32,33 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0711302 |
CV30,SV3#,VZV3#..HT TAUPE,TRIM9#,L=21.8 |
2 | ||
| 90467-0711303 |
CV30,SV3#,VZV3#..HT MEDIUM GRAY,TRIM1#,L=21.8 |
2 | ||
| 90467-0711406 |
CV30,SV3#,VZV3#..HT SABLE,TRIM4#,長さ=27.3 |
2 | ||
| 90467-0711402 |
CV30,SV3#,VZV3#..HT TAUPE,TRIM9#,長さ=27.3 |
2 | ||
| 90467-0711403 |
CV30,SV3#,VZV3#..HT MEDIUM GRAY,TRIM1#,長さ=27.3 |
2 | ||
| 90467-0711306 |
CV30,SV3#,VZV3#..HT SABLE,TRIM4#,L=21.8 |
2 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-0174603 |
CV30,SV3#,VZV3#..HT MEDIUM GRAY,TRIM1# |
2 | ||
| 90950-0174602 |
CV30,SV3#,VZV3#..HT TAUPE,TRIM9# |
2 | ||
| 90950-0174606 |
CV30,SV3#,VZV3#..HT SABLE,TRIM4# |
2 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-12050 |
CV30,SV3#,VZV3#..HT ﾚｯﾄﾞ |
3 | ||
| 67771-30090 |
CV30,SV3#,VZV3#..HT ｲｴﾛｰ |
3 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-3H48002 |
SV32,33..HT..GT TAUPE,TRIM9# |
1 | ||
| 67620-3H48003 |
SV32,33..HT..GT MEDIUM GRAY,TRIM1# |
1 | ||
| 67620-3H48006 |
SV32,33..HT..GT SABLE,TRIM4# |
1 | ||
| 67620-3H61002 |
SV32,33..HT..GT ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),TAUPE,TRIM9# |
1 | ||
| 67620-3H58002 |
SV32,33..HT..GT ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),TAUPE,TRIM9# |
1 | ||
| 67620-3H58006 |
SV32,33..HT..GT ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67620-3H61003 |
SV32,33..HT..GT ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),MEDIUM GRAY,TRIM1# |
1 | ||
| 67620-3H49002 |
VZV32,33 TAUPE,TRIM9# |
1 | ||
| 67620-3H58003 |
SV32,33..HT..GT ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),MEDIUM GRAY,TRIM1# |
1 | ||
| 67620-3H49006 |
VZV32,33 SABLE,TRIM4# |
1 | ||
| 67620-3H640B0 |
VZV32,33 ｱﾘ(ﾚｻﾞ- ｼ-ﾄ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ)-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 67620-3H61006 |
SV32,33..HT..GT ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67620-3H62006 |
VZV32,33 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67620-3H59002 |
VZV32,33 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),TAUPE,TRIM9# |
1 | ||
| 67620-3H62003 |
VZV32,33 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),MEDIUM GRAY,TRIM1# |
1 | ||
| 67620-3H49003 |
VZV32,33 MEDIUM GRAY,TRIM1# |
1 | ||
| 67620-3H59003 |
VZV32,33 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),MEDIUM GRAY,TRIM1# |
1 | ||
| 67620-3H62002 |
VZV32,33 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ),TAUPE,TRIM9# |
1 | ||
| 67620-3H59006 |
VZV32,33 ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-30090 |
CV30,SV3#,VZV3#..HT ｲｴﾛｰ |
3 | ||
| 67771-12050 |
CV30,SV3#,VZV3#..HT ﾚｯﾄﾞ |
3 | ||
| 67651B - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-3205003 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 67651-3205003 |
CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 67651-3205002 |
CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 67651-3205006 |
CV30,SV3#,VZV32,33..HT..(GT,PRO,VR,VX) SABLE,TRIM4# |
1 | ||
| 67651-3205002 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 67651-3205006 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) SABLE,TRIM4# |
1 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-3204006 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) SABLE,TRIM4# |
1 | ||
| 67651-3204003 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 67651-3206006 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67651-3206002 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),TAUPE,TRIM9# |
1 | ||
| 67651-3204002 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 67651-3206003 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),MEDIUM GRAY,TRIM1# |
1 | ||
| 67651-3204003 |
VZV32,33 ｱﾘ(ﾚｻﾞ- ｼ-ﾄ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ)-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 67651-3204006 |
CV30,SV3#,VZV32,33..HT..(GT,PRO,VR,VX) SABLE,TRIM4# |
1 | ||
| 67651-3204002 |
CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 67651-3206003 |
CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),MEDIUM GRAY,TRIM1# |
1 | ||
| 67651-3206006 |
CV30,SV3#,VZV32,33..HT..(GT,PRO,VR,VX) ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67651-3204003 |
CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 67651-3206002 |
CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),TAUPE,TRIM9# |
1 | ||
| 67652B - GRILLE, SPEAKER DOOR, LH | ||||
| 67652-3205002 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 67652-3205003 |
CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 67652-3205006 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) SABLE,TRIM4# |
1 | ||
| 67652-3205002 |
CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 67652-3205003 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 67652-3205006 |
CV30,SV3#,VZV32,33..HT..(GT,PRO,VR,VX) SABLE,TRIM4# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67652-3204002 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 67652-3204003 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 67652-3204006 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) SABLE,TRIM4# |
1 | ||
| 67652-3206006 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67652-3206003 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),MEDIUM GRAY,TRIM1# |
1 | ||
| 67652-3204003 |
CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 67652-3204003 |
VZV32,33 ｱﾘ(ﾚｻﾞ- ｼ-ﾄ & ﾂｲ-ﾀ ｽﾋﾟ-ｶ)-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 67652-3206003 |
CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),MEDIUM GRAY,TRIM1# |
1 | ||
| 67652-3206006 |
CV30,SV3#,VZV32,33..HT..(GT,PRO,VR,VX) ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),SABLE,TRIM4# |
1 | ||
| 67652-3204006 |
CV30,SV3#,VZV32,33..HT..(GT,PRO,VR,VX) SABLE,TRIM4# |
1 | ||
| 67652-3206002 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),TAUPE,TRIM9# |
1 | ||
| 67652-3206002 |
CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾘﾔ ﾎﾞﾂｸｽ ｽﾋﾟ-ｶ),TAUPE,TRIM9# |
1 | ||
| 67652-3204002 |
CV30,SV3#,VZV32,33..GT,PRO,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 67715 - PAD, DOOR TRIM, NO.1 | ||||
| 67715-32070 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 67716 - PAD, DOOR TRIM, NO.2 | ||||
| 67715-32070 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 67773B - POCKET, FRONT DOOR TRIM, NO.2 RH | ||||
| 67773-3203002 |
CV30,SV3#,VZV3#..HT TAUPE,TRIM9# |
1 | ||
| 67773-3203006 |
CV30,SV3#,VZV3#..HT SABLE,TRIM4# |
1 | ||
| 67773-3203003 |
CV30,SV3#,VZV3#..HT MEDIUM GRAY,TRIM1# |
1 | ||
| 67774B - POCKET, FRONT DOOR TRIM, NO.2 LH | ||||
| 67774-3203002 |
CV30,SV3#,VZV3#..HT TAUPE,TRIM9# |
1 | ||
| 67774-3203006 |
CV30,SV3#,VZV3#..HT SABLE,TRIM4# |
1 | ||
| 67774-3203003 |
CV30,SV3#,VZV3#..HT MEDIUM GRAY,TRIM1# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-3205002 |
CV30,SV3#,VZV3#..HT TAUPE,TRIM9# |
1 | ||
| 67777-3205003 |
CV30,SV3#,VZV3#..HT MEDIUM GRAY,TRIM1# |
1 | ||
| 67777-3205006 |
CV30,SV3#,VZV3#..HT SABLE,TRIM4# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67778-3205003 |
CV30,SV3#,VZV3#..HT MEDIUM GRAY,TRIM1# |
1 | ||
| 67778-3205002 |
CV30,SV3#,VZV3#..HT TAUPE,TRIM9# |
1 | ||
| 67778-3205006 |
CV30,SV3#,VZV3#..HT SABLE,TRIM4# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-32100 |
CV30,SV3#,VZV3#..HT DOOR TRIM,LH |
1 | ||
| 68170-32080 |
CV30,SV3#,VZV3#..HT DOOR PANEL,RH |
1 | ||
| 68170-32090 |
CV30,SV3#,VZV3#..HT DOOR TRIM,RH |
1 | ||
| 68220-32090 |
CV30,SV3#,VZV3#..HT DOOR PANEL,LH |
1 | ||
| 74293 - PLATE, FRONT DOOR ARMREST, NO.1 | ||||
| 74293-32010 |
CV30,SV3#,VZV3# |
6 | ||
| Common parts | ||||
| 67772-32020 | ||||
| 67772-32030 | ||||
| 90159-40229 | ||||
| 90159-60370 | ||||
| 90168-40025 | ||||
| 90189-04178 | ||||
| 90467-06128 | ||||
| 93540-14012 | ||||
| 93560-14010 | ||||
| 93560-14012 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||
| 8602 | ||||

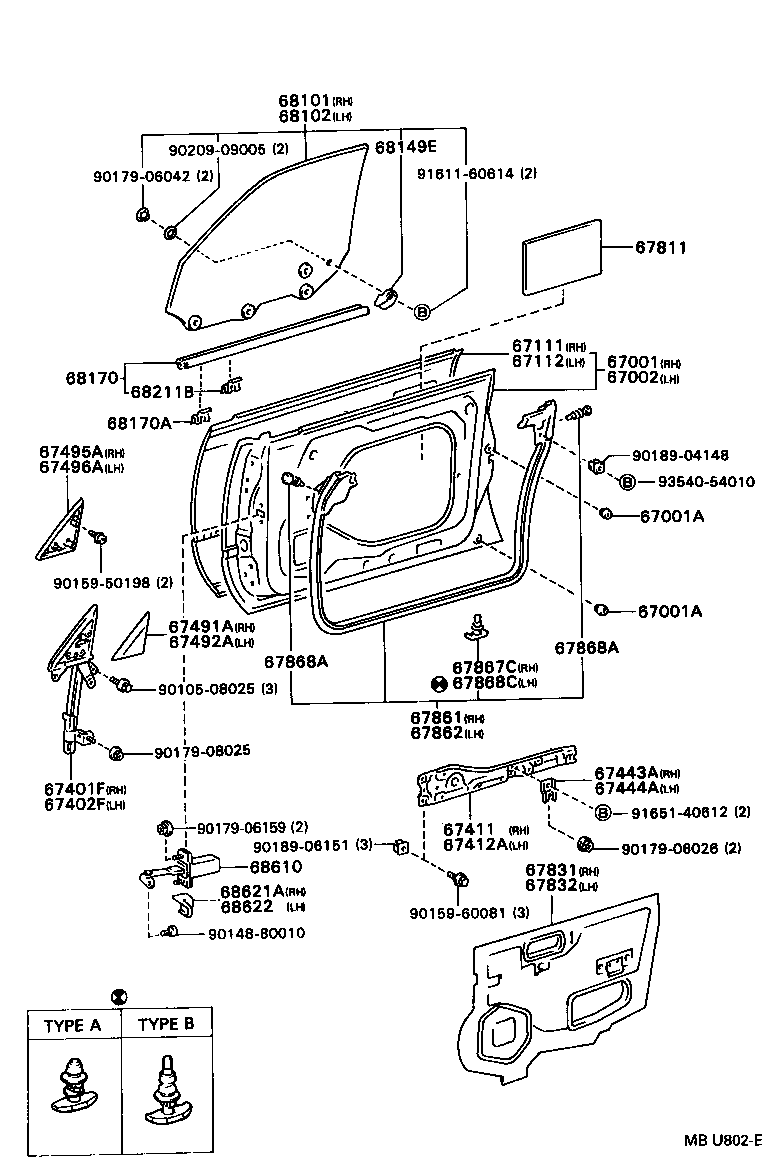

(9007- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-32310 |
CV30,SV3#..HT |
1 | ||
| 67001-32310 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
CV30,SV3#,VZV3# UPPER |
2 | ||
| 90541-09081 |
CV30,SV3#,VZV3#..HT LOWER |
2 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
CV30,SV3#,VZV3# UPPER |
2 | ||
| 90541-09081 |
CV30,SV3#,VZV3#..HT LOWER |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-32270 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 67002-32270 |
CV30,SV3#..HT |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-32100 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-32100 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67503-32010 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67504-32010 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 67411 - FRAME, FRONT DOOR WINDOW, FRONT UPPER RH | ||||
| 67411-32050 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 67412A - FRAME, FRONT DOOR WINDOW, FRONT UPPER LH | ||||
| 67412-32050 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 67443A - PLATE, FRONT DOOR WINDOW OPENING, OUTER RH | ||||
| 67443-32030 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 67444A - PLATE, FRONT DOOR WINDOW OPENING, OUTER LH | ||||
| 67443-32030 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-32110 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-32110 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-32080 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-32070 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 67811 - PAD, FRONT DOOR SILENCER | ||||
| 67812-12010 |
CV30,SV3# |
2 | ||
| 67812-12010 |
CV30,SV3#,VZV3# |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-32110 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-32090 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-32140 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-32140 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-32040 |
CV30,SV3#,VZV3#..HT ﾀｲﾌﾟ A |
1 | ||
| 67868-32040 |
CV30,SV3#,VZV3#..HT ﾀｲﾌﾟ B |
17 | ||
| 67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67869-32010 |
CV30,SV3#,VZV3#..HT WHITE |
2 | ||
| 67869-30020 |
CV30,SV3#,VZV3#..HT ﾌﾞﾗｯｸ |
2 | ||
| 67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67869-32010 |
CV30,SV3#,VZV3#..HT WHITE |
2 | ||
| 67869-30020 |
CV30,SV3#,VZV3#..HT ﾌﾞﾗｯｸ |
2 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-32040 |
CV30,SV3#,VZV3#..HT ﾀｲﾌﾟ B |
17 | ||
| 67868-32050 |
CV30,SV3#,VZV3#..HT ﾀｲﾌﾟ A |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-32130 |
CV30,SV3#,VZV3#..HT *TT,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68101-32120 |
CV30,SV3#,VZV3#..HT *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-32130 |
CV30,SV3#,VZV3#..HT *TT,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68102-32120 |
CV30,SV3#,VZV3#..HT *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68149E - STABILIZER, DOOR GLASS MALE | ||||
| 68149-32010 |
CV30,SV3#,VZV3#..HT |
4 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-32100 |
CV30,SV3#,VZV3#..HT DOOR TRIM,LH |
1 | ||
| 68170-32080 |
CV30,SV3#,VZV3#..HT DOOR PANEL,RH |
1 | ||
| 68170-32090 |
CV30,SV3#,VZV3#..HT DOOR TRIM,RH |
1 | ||
| 68220-32090 |
CV30,SV3#,VZV3#..HT DOOR PANEL,LH |
1 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-32070 |
CV30,SV3#,VZV3#..HT |
2 | ||
| 68211B - CLIP(FOR FRONT DOOR GLASS WEATHERSTRIP) | ||||
| 68211-32060 |
CV30,SV3#,VZV3#..HT |
6 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68620-32030 |
CV30,SV3#,VZV3#..HT 左側 |
1 | ||
| 68610-32070 |
CV30,SV3#,VZV3#..HT W(DOOR CHECK COVER),右側 |
1 | ||
| 68621A - COVER, FRONT DOOR CHECK, RH | ||||
| 68621-32010 |
CV30,SV3#,VZV3# |
1 | ||
| 68622 - COVER, FRONT DOOR CHECK, LH | ||||
| 68622-32010 |
CV30,SV3#,VZV3# |
1 | ||
| Common parts | ||||
| 90105-08025 | ||||
| 90148-80010 | ||||
| 90159-50198 | ||||
| 90159-60081 | ||||
| 90179-06026 | ||||
| 90179-06042 | ||||
| 90179-06159 | ||||
| 90179-08025 | ||||
| 90189-04148 | ||||
| 90189-06151 | ||||
| 90209-09005 | ||||
| 91611-60614 | ||||
| 91651-40612 | ||||
| 93540-54010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
