SV33-BTMVF (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 3SGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007- )

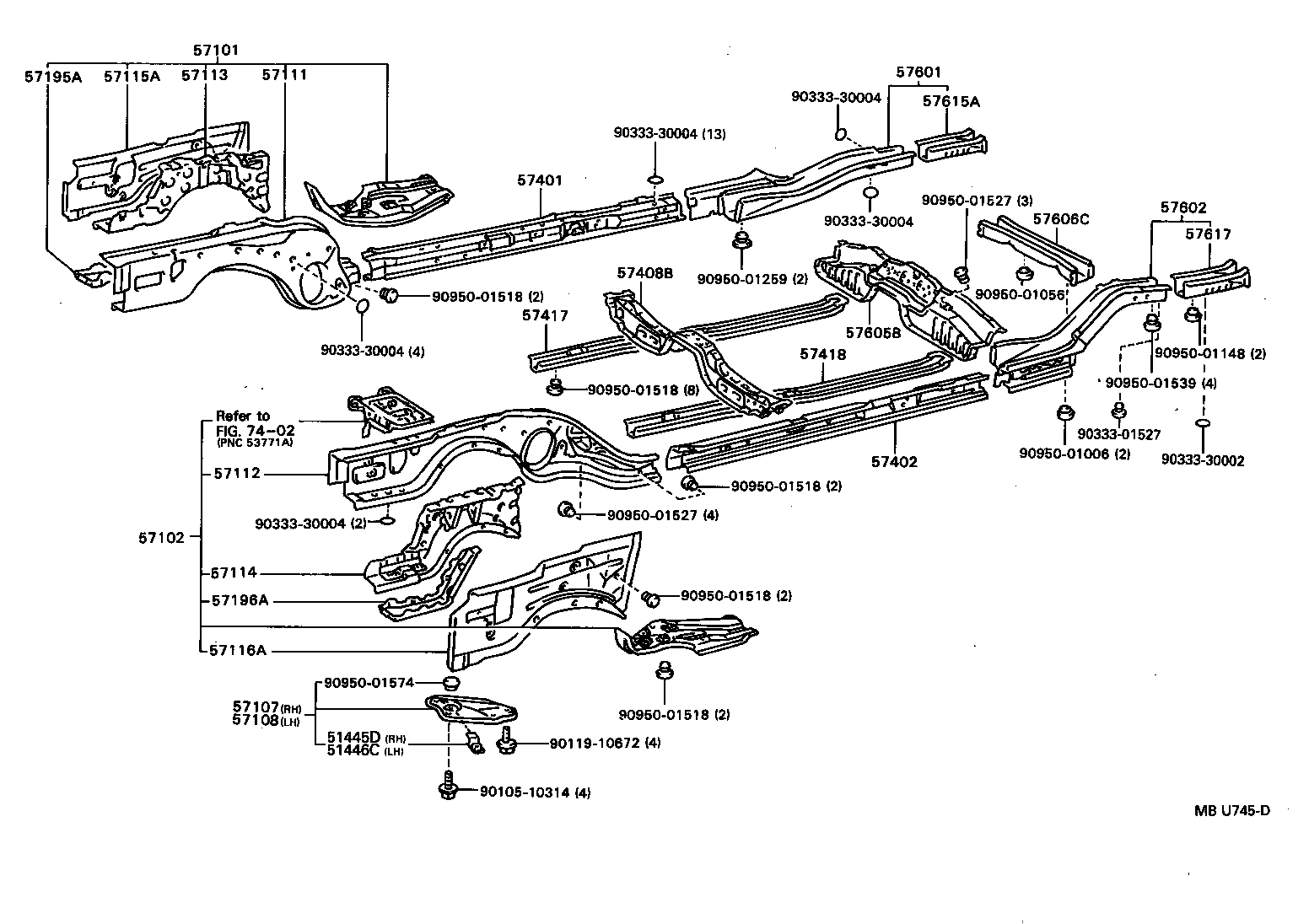

Click highlighted areas on diagram

diagram 51445D 51446C 57101 57102 57107 57108 57111 57112 57113 57114 57115A 57116A 57195A 57196A 57401 57402 57408B 57417 57418 57601 57602 57605B 57606C 57615A 57617 7402 9010510314 9011910672 9033301527 9033330002 9033330004 9033330004 9033330004 9033330004 9033330004 9095001006 9095001056 9095001148 9095001259 9095001518 9095001518 9095001518 9095001518 9095001518 9095001527 9095001527 9095001539 9095001574
Part # Description Qty Price
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-32120

CV30,SV3#,VZV3#

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-32080

CV30,SV3#,VZV3#

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-32030

CV30,SV3#,VZV3#

 1
57107-32040

CV30,SV3#,VZV3#

ｱﾘ(ｵｲﾙ ﾊﾟﾝ ﾌﾟﾛﾃｸﾀ)

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-32040

CV30,SV3#,VZV3#

ｱﾘ(ｵｲﾙ ﾊﾟﾝ ﾌﾟﾛﾃｸﾀ)

 1
57108-32030

CV30,SV3#,VZV3#

 1
57111 - MEMBER, FRONT SIDE, RH
57111-32050

CV30,SV3#,VZV3#

 1
57112 - MEMBER, FRONT SIDE, LH
57112-32050

CV30,SV3#,VZV3#

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57016-32010

CV30,SV3#,VZV3#

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57017-32010

CV30,SV3#,VZV3#

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-32040

CV30,SV3#,VZV3#

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-32040

CV30,SV3#,VZV3#

 1
57195A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT RH
57195-32010

CV30,SV3#,VZV3#

 1
57196A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH
57196-32010

CV30,SV3#,VZV3#

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-32070

CV30,SV3#,VZV3#

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-32070

CV30,SV3#,VZV3#

 1
57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS
57408-32040

CV30,SV3#,VZV3#

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-32040

CV30,SV3#,VZV3#

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-32010

CV30,SV3#,VZV3#

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-32160

CV30,SV30,32,33,VZV3#

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-32160

CV30,SV30,32,33,VZV3#

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-32060

CV30,SV3#,VZV3#

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-32070

CV30,SV30,32,33,VZV3#

 1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-32100

CV30,SV3#,VZV3#

 1
57617 - MEMBER, REAR FLOOR SIDE, REAR LH
57616-32914

CV30,SV3#,VZV3#

 1
Common parts
90105-10314
90119-10672
90333-01527
90333-30002
90333-30004
90950-01006
90950-01056
90950-01148
90950-01259
90950-01518
90950-01527
90950-01539
90950-01574
Linked diagrams
7402
