SV33-BTMVF (1990)
Toyota Camry/Vista
Production
Jul 1990
-
Jun 1992
Engine
3SGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9007- )SV3#..5F

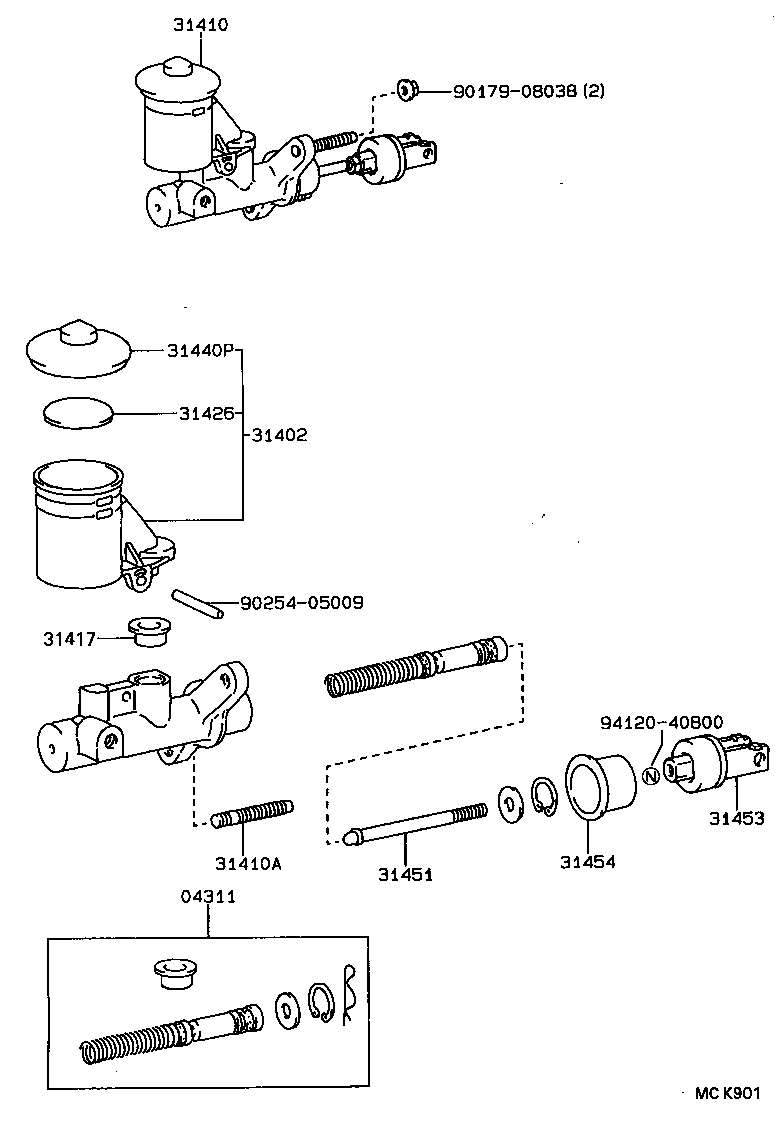

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-12060 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER | ||||
| 31402-32020 |
SV30,32,33..5F |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31410-32112 |
SV30,32,33..5F |
1 | ||
| 31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING) | ||||
| 90116-08357 |
CV30,SV3#,VZV30,31..5F |
2 | ||
| 31417 - GROMMET, CLUTCH RESERVOIR | ||||
| 31417-35010 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR | ||||
| 31426-30011 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20040 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-32060 |
SV30,32,33..5F |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31453-35010 |
SV30,32,33..5F |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-24010 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90254-05009 | ||||
| 94120-40800 | ||||
