SV33-BTMGK (1990)
Toyota Camry/Vista

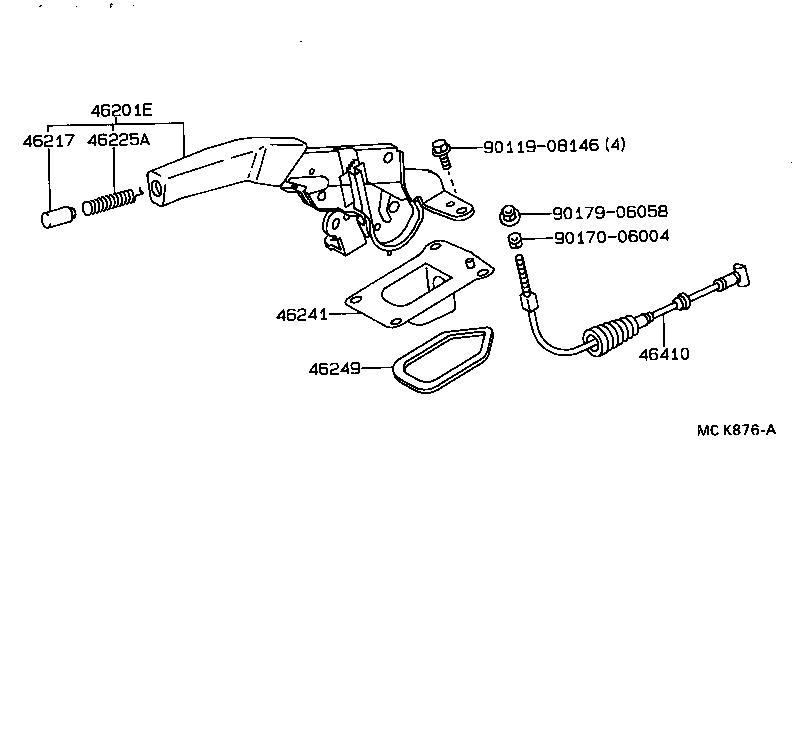

ILLUST NO. 1 OF 3(9007- )4FC..GT ; (9007- )SV35,VZV30,31 ;(9007- )CV30,SV30,32,33..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-32170K0 |
SV35;CV30,SV30,32,33..5F TAUPE,TRIM9# |
1 | ||
| 46201-32170B0 |
SV35;CV30,SV30,32,33..5F MI GRAY,TRIM1# |
1 | ||
| 46201-32170E0 |
SV35;CV30,SV30,32,33..5F OAK,TRIM4# |
1 | ||
| 46201-3217002 |
SV35;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F TAUPE,TRIM9# |
1 | ||
| 46201-3217003 |
SV35;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F MIDIUM GRAY,TRIM1# |
1 | ||
| 46201-32180B0 |
SV35..HT..VX;VZV30,31..4FC;SV32,33..HT..5F..VX ﾚｻﾞ- ﾊﾟﾂｹ-ｼﾞ,MEDIUM GRAY,TRIM1# |
1 | ||
| 46201-3217006 |
SV35..HT;SV32,33..HT..4FC..GT;CV30,SV30,32,33,VZV30,31..HT..5F SABLE,TRIM4# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-1701006 |
SV35..HT;SV32,33..HT..4FC..GT;CV30,SV30,32,33,VZV30,31..HT..5F SABLE,TRIM1# |
1 | ||
| 46217-1701003 |
SV35;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F MIDIUM GRAY,TRIM1# |
1 | ||
| 46217-17010B0 |
SV35;CV30,SV30,32,33..5F MEDIUM GRAY,TRIM1# |
1 | ||
| 46217-1701012 |
SV35;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F TAUPE,TRIM9# |
1 | ||
| 46217-17010K0 |
SV35;CV30,SV30,32,33..5F TAUPE,TRIM9# |
1 | ||
| 46217-17010E0 |
CV30,SV32,33..5F OAK,TRIM4# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90504-12005 |
SV35;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-32050 |
SV35;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F |
1 | ||
| 46241-33010 |
SV35;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-32030 |
SV35;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-32110 |
SV35;SV32,33..4FC..GT;CV30,SV30,32,33,VZV30,31..5F |
1 | ||
| Common parts | ||||
| 90119-08146 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||

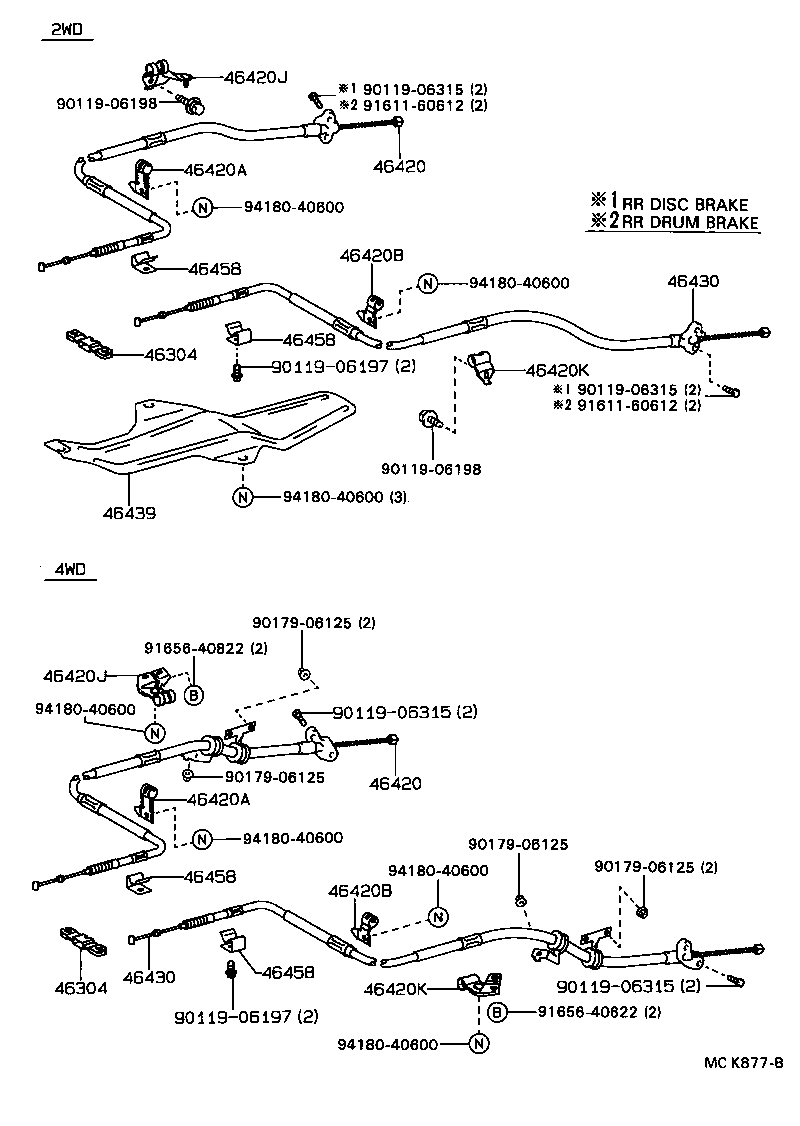

ILLUST NO. 2 OF 3(9007- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-32010 |
CV30,SV3#,VZV3# |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-32010 |
CV30,SV3#,VZV3# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-32170 |
SV32,33,VZV3# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-32170 |
SV32,33,VZV3# |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01667 |
CV30,SV30,32,33,VZV3# |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01667 |
CV30,SV30,32,33,VZV3# |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01664 |
CV30,SV3#,VZV3# |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01664 |
CV30,SV3#,VZV3# |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01668 |
CV30,SV30,32,33,VZV3# |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01668 |
CV30,SV30,32,33,VZV3# |
1 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 90949-01669 |
CV30,SV30,32,33,VZV3# |
1 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 90949-01669 |
CV30,SV30,32,33,VZV3# |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-32170 |
SV32,33,VZV3# |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-32170 |
SV32,33,VZV3# |
1 | ||
| 46439 - INSULATOR, PARKING BRAKE CABLE HEAT | ||||
| 46439-32030 |
SV32,33,VZV3# |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
CV30,SV3#,VZV3# |
2 | ||
| 46458-28010 |
CV30,SV3#,VZV3# |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
CV30,SV3#,VZV3# |
2 | ||
| 46458-28010 |
CV30,SV3#,VZV3# |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
CV30,SV3#,VZV3# |
2 | ||
| 46458-28010 |
CV30,SV3#,VZV3# |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-50010 |
CV30,SV3#,VZV3# |
2 | ||
| 46458-28010 |
CV30,SV3#,VZV3# |
2 | ||
| Common parts | ||||
| 90119-06197 | ||||
| 90119-06198 | ||||
| 90119-06315 | ||||
| 90179-06125 | ||||
| 91611-60612 | ||||
| 91656-40622 | ||||
| 91656-40822 | ||||
| 94180-40600 | ||||

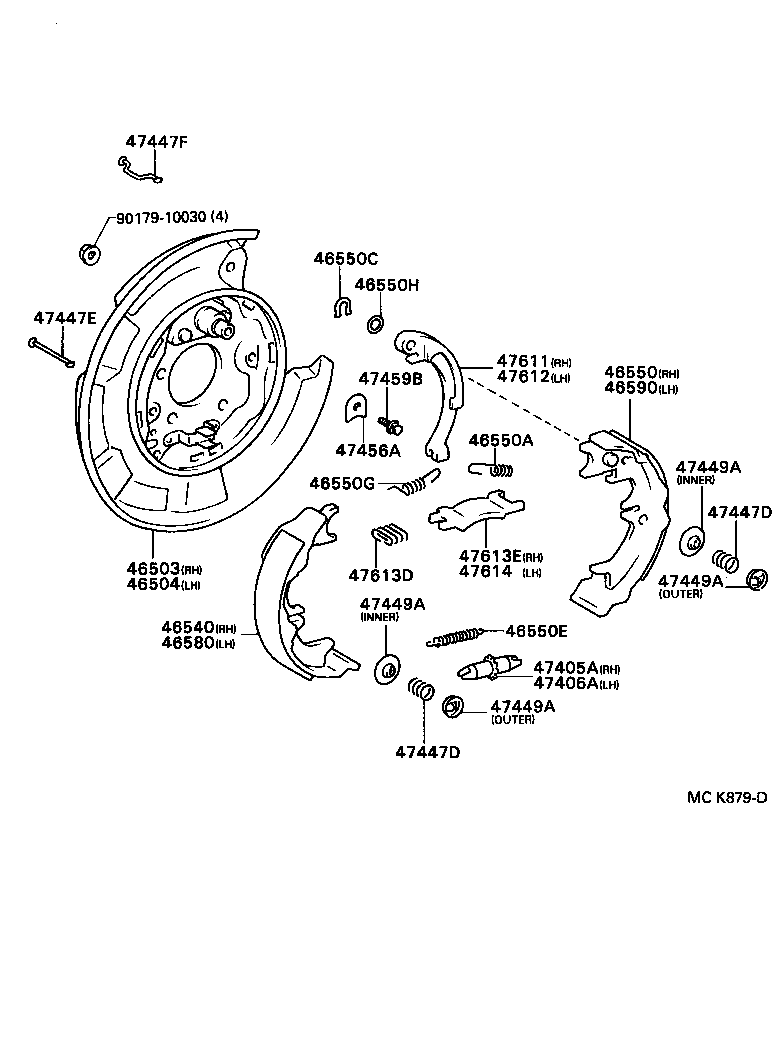

ILLUST NO. 3 OF 3(9007- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-20010 |
CV30,SV32,33,VZV3# |
1 | ||
| 46503-20010 |
SV32,33,VZV3# |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-20010 |
SV32,33,VZV3# |
1 | ||
| 46504-20010 |
CV30,SV32,33,VZV3# |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-20040 |
SV32,33,35,VZV3# |
1 | ||
| 46540-20040 |
CV30,SV32,33,35,VZV3# |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-20040 |
CV30,SV32,33,35,VZV3# |
1 | ||
| 46550-20040 |
SV32,33,35,VZV3# |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-16009 |
CV30,SV32,33,35,VZV3# |
2 | ||
| 90507-16009 |
SV32,33,35,VZV3# |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07018 |
CV30,SV32,33,35,VZV3# |
2 | ||
| 90213-07018 |
SV32,33,35,VZV3# |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12010 |
SV32,33,35,VZV3# |
2 | ||
| 90506-12010 |
CV30,SV32,33,35,VZV3# |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-16009 |
SV32,33,35,VZV3# |
2 | ||
| 90507-16009 |
CV30,SV32,33,35,VZV3# |
2 | ||
| 46550H - SHIM(FOR PARKING BRAKE SHOE) | ||||
| 90564-09185 |
CV30,SV32,33,35,VZV3# 厚さ=0.6 |
1 | ||
| 90564-09186 |
CV30,SV32,33,35,VZV3# 厚さ=0.9 |
1 | ||
| 90564-09184 |
SV32,33,35,VZV3# 厚さ=0.3 |
1 | ||
| 90564-09186 |
SV32,33,35,VZV3# 厚さ=0.9 |
1 | ||
| 90564-09184 |
CV30,SV32,33,35,VZV3# 厚さ=0.3 |
1 | ||
| 90564-09185 |
SV32,33,35,VZV3# 厚さ=0.6 |
1 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-20040 |
SV32,33,35,VZV3# |
1 | ||
| 46540-20040 |
CV30,SV32,33,VZV3# |
2 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-20040 |
CV30,SV32,33,VZV3# |
2 | ||
| 46590-20040 |
SV32,33,35,VZV3# |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
CV30,SV32,33,35,VZV3# |
1 | ||
| 47405-30040 |
SV32,33,35,VZV3# |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
CV30,SV32,33,35,VZV3# |
1 | ||
| 47406-30040 |
SV32,33,35,VZV3# |
1 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-14049 |
SV32,33,35,VZV3# |
4 | ||
| 90501-14049 |
CV30,SV32,33,35,VZV3# |
4 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-14049 |
SV32,33,35,VZV3# |
4 | ||
| 90501-14049 |
CV30,SV32,33,35,VZV3# |
4 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-20030 |
SV32,33,35,VZV3# |
2 | ||
| 47447-20030 |
CV30,SV32,33,35,VZV3# |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-22020 |
SV32,33,35,VZV3# |
2 | ||
| 47447-22020 |
CV30,SV32,33,35,VZV3# |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-22010 |
SV32,33,VZV3# 内側 |
4 | ||
| 47449-30030 |
SV32,33,VZV3# 外側 |
4 | ||
| 47449-32010 |
SV32,33,35,VZV3# 内側 |
4 | ||
| 47449-30030 |
SV32,33,35,VZV3# 外側 |
4 | ||
| 47449-30030 |
CV30,SV32,33,35,VZV3# 外側 |
4 | ||
| 47449-32010 |
CV30,SV32,33,35,VZV3# 内側 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-22010 |
SV32,33,VZV3# 内側 |
4 | ||
| 47449-30030 |
SV32,33,VZV3# 外側 |
4 | ||
| 47449-32010 |
SV32,33,35,VZV3# 内側 |
4 | ||
| 47449-30030 |
SV32,33,35,VZV3# 外側 |
4 | ||
| 47449-30030 |
CV30,SV32,33,35,VZV3# 外側 |
4 | ||
| 47449-32010 |
CV30,SV32,33,35,VZV3# 内側 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-22010 |
SV32,33,VZV3# 内側 |
4 | ||
| 47449-30030 |
SV32,33,VZV3# 外側 |
4 | ||
| 47449-32010 |
SV32,33,35,VZV3# 内側 |
4 | ||
| 47449-30030 |
SV32,33,35,VZV3# 外側 |
4 | ||
| 47449-30030 |
CV30,SV32,33,35,VZV3# 外側 |
4 | ||
| 47449-32010 |
CV30,SV32,33,35,VZV3# 内側 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-22010 |
SV32,33,VZV3# 内側 |
4 | ||
| 47449-30030 |
SV32,33,VZV3# 外側 |
4 | ||
| 47449-32010 |
SV32,33,35,VZV3# 内側 |
4 | ||
| 47449-30030 |
SV32,33,35,VZV3# 外側 |
4 | ||
| 47449-30030 |
CV30,SV32,33,35,VZV3# 外側 |
4 | ||
| 47449-32010 |
CV30,SV32,33,35,VZV3# 内側 |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-20030 |
SV32,33,35,VZV3# |
2 | ||
| 47456-20030 |
CV30,SV32,33,35,VZV3# |
2 | ||
| 47456-33010 |
CV30,SV32,33,35,VZV3# |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
SV32,33,35,VZV3# |
2 | ||
| 47459-30010 |
CV30,SV32,33,35,VZV3# |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-20030 |
SV32,33,35,VZV3# |
1 | ||
| 47611-20030 |
CV30,SV32,33,35,VZV3# |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-20030 |
SV32,33,35,VZV3# |
1 | ||
| 47612-20030 |
CV30,SV32,33,35,VZV3# |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
CV30,SV32,33,35,VZV3# |
2 | ||
| 90504-14002 |
SV32,33,35,VZV3# |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-20040 |
SV32,33,35,VZV3# |
1 | ||
| 47613-20040 |
CV30,SV32,33,35,VZV3# |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47614-20010 |
SV32,33,35,VZV3# |
1 | ||
| 47614-20010 |
CV30,SV32,33,35,VZV3# |
1 | ||
| Common parts | ||||
| 90179-10030 | ||||
