SV33-BTMGK (1990)
Toyota Camry/Vista
(9007- )3SFE,4SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13502 - IDLER SUB-ASSY, TIMING BELT, NO.2 | ||||
| 13503-63011 |
3S#,4SFE..SV3# |
1 | ||
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-74011 |
3SFE,4SFE..SV3# |
1 | ||
| 13505A - SPRING, TENSION(FOR IDLER) | ||||
| 90507-20026 |
3SFE,4SFE..SV3# |
1 | ||
| 90507-18030 |
3SFE,4SFE..SV3# |
1 | ||
| 90507-20028 |
3SFE,4SFE..SV3# |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-74050 |
3SFE,4SFE..SV3# |
1 | ||
| 13501-74050 |
3SFE..SV32,33,35 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-74030 |
3SFE..SV32,33,35 |
1 | ||
| 13502-74030 |
3SFE,4SFE..SV3# |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-74020 |
3SFE,4SFE..SV3# |
1 | ||
| 13529 - GEAR, CAMSHAFT SUB | ||||
| 13529-74900 |
3SFE,4SFE..SV3# |
1 | ||
| 13568 - BELT, TIMING | ||||
| 13568-74011 |
3SFE,4SFE..SV3# |
1 | ||
| 13568-79095 |
3SFE,4SFE..SV3# |
1 | ||
| 13568-79025 |
3SFE,4SFE..SV3# |
1 | ||
| 13568-74012 |
3SFE,4SFE..SV3# |
1 | ||
| 13579 - WASHER, CAMSHAFT TIMING GEAR BOLT | ||||
| 13579-74010 |
3SFE,4SFE..SV3# |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-74080 |
3SFE..SV32,33,35 |
8 | ||
| 13711-74080 |
3SFE,4SFE..SV3# |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02090 |
3S#,4SFE..SV3# INTAKE SIDE |
8 | ||
| 90913-02066 |
3S#,4SFE..SV3# EXHAUST SIDE |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90504-37002 |
3SFE..SV32,33,35 |
32 | ||
| 90504-37002 |
3SFE,4SFE..SV3# |
16 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-74080 |
3SFE,4SFE..SV3# |
8 | ||
| 13715-74080 |
3SFE..SV32,33,35 |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-50020 |
3SFE..SV32,33,35 |
16 | ||
| 13741-50020 |
3SFE,4SFE..SV3# |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
3S#,4SFE..SV3# |
32 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-74020 |
3SFE,4SFE..SV3# |
16 | ||
| 13751-74020 |
3S#..SV32,33,35 |
16 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-74030 |
3SFE..SV32,33,35 厚さ=2.55 |
1 | ||
| 13753-74110 |
3SFE..SV32,33,35 厚さ=2.75 |
1 | ||
| 13753-74010 |
3SFE..SV32,33,35 厚さ=2.50 |
1 | ||
| 13753-74170 |
3SFE..SV32,33,35 厚さ=2.90 |
1 | ||
| 13753-74050 |
3SFE..SV32,33,35 厚さ=2.60 |
1 | ||
| 13753-74210 |
3SFE..SV32,33,35 厚さ=3.00 |
1 | ||
| 13753-74130 |
3SFE..SV32,33,35 厚さ=2.80 |
1 | ||
| 13753-74090 |
3SFE..SV32,33,35 厚さ=2.70 |
1 | ||
| 13753-74150 |
3SFE..SV32,33,35 厚さ=2.85 |
1 | ||
| 13753-74290 |
3SFE..SV32,33,35 厚さ=3.20 |
1 | ||
| 13753-74190 |
3SFE..SV32,33,35 厚さ=2.95 |
1 | ||
| 13753-74270 |
3SFE..SV32,33,35 厚さ=3.15 |
1 | ||
| 13753-74230 |
3SFE..SV32,33,35 厚さ=3.05 |
1 | ||
| 13753-74070 |
3SFE..SV32,33,35 厚さ=2.65 |
1 | ||
| 13753-74330 |
3SFE..SV32,33,35 厚さ=3.30 |
1 | ||
| 13753-74250 |
3SFE..SV32,33,35 厚さ=3.10 |
1 | ||
| 13753-74310 |
3SFE..SV32,33,35 厚さ=3.25 |
1 | ||
| 13753-74030 |
3SFE,4SFE..SV3# 厚さ=2.55 |
1 | ||
| 13753-74070 |
3SFE,4SFE..SV3# 厚さ=2.65 |
1 | ||
| 13753-74050 |
3SFE,4SFE..SV3# 厚さ=2.60 |
1 | ||
| 13753-74150 |
3SFE,4SFE..SV3# 厚さ=2.85 |
1 | ||
| 13753-74130 |
3SFE,4SFE..SV3# 厚さ=2.80 |
1 | ||
| 13753-74090 |
3SFE,4SFE..SV3# 厚さ=2.70 |
1 | ||
| 13753-74010 |
3SFE,4SFE..SV3# 厚さ=2.50 |
1 | ||
| 13753-74190 |
3SFE,4SFE..SV3# 厚さ=2.95 |
1 | ||
| 13753-74210 |
3SFE,4SFE..SV3# 厚さ=3.00 |
1 | ||
| 13753-74290 |
3SFE,4SFE..SV3# 厚さ=3.20 |
1 | ||
| 13753-74270 |
3SFE,4SFE..SV3# 厚さ=3.15 |
1 | ||
| 13753-74110 |
3SFE,4SFE..SV3# 厚さ=2.75 |
1 | ||
| 13753-74310 |
3SFE,4SFE..SV3# 厚さ=3.25 |
1 | ||
| 13753-74330 |
3SFE,4SFE..SV3# 厚さ=3.30 |
1 | ||
| 13753-74250 |
3SFE,4SFE..SV3# 厚さ=3.10 |
1 | ||
| 13753-74170 |
3SFE,4SFE..SV3# 厚さ=2.90 |
1 | ||
| 13753-74230 |
3SFE,4SFE..SV3# 厚さ=3.05 |
1 | ||
| Common parts | ||||
| 90105-10032 | ||||
| 90119-10430 | ||||
| 90119-10469 | ||||
| 90201-15016 | ||||
| 90201-17006 | ||||
| 90206-42001 | ||||
| 90520-41004 | ||||

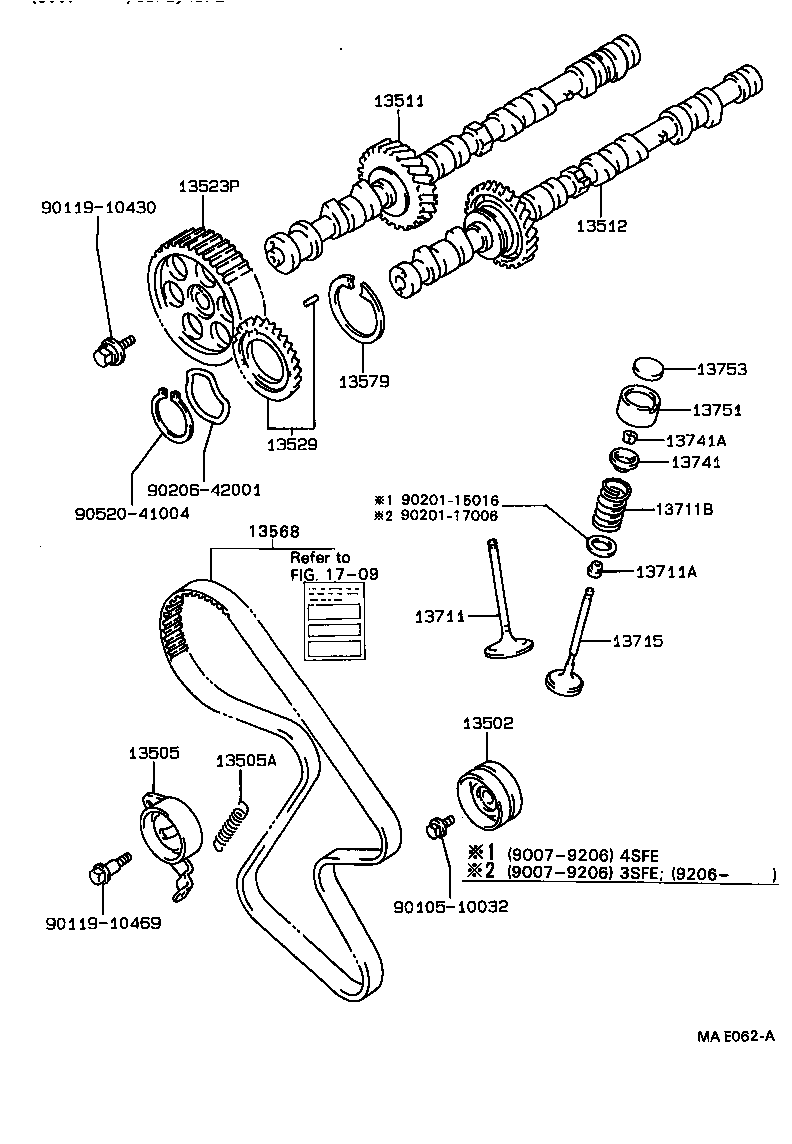

| Linked diagrams | ||||
| 1709 | ||||
