SV33-BEPMK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007- )SV32,33,35..ETO,LUM,VE,VX,ZV,ZX

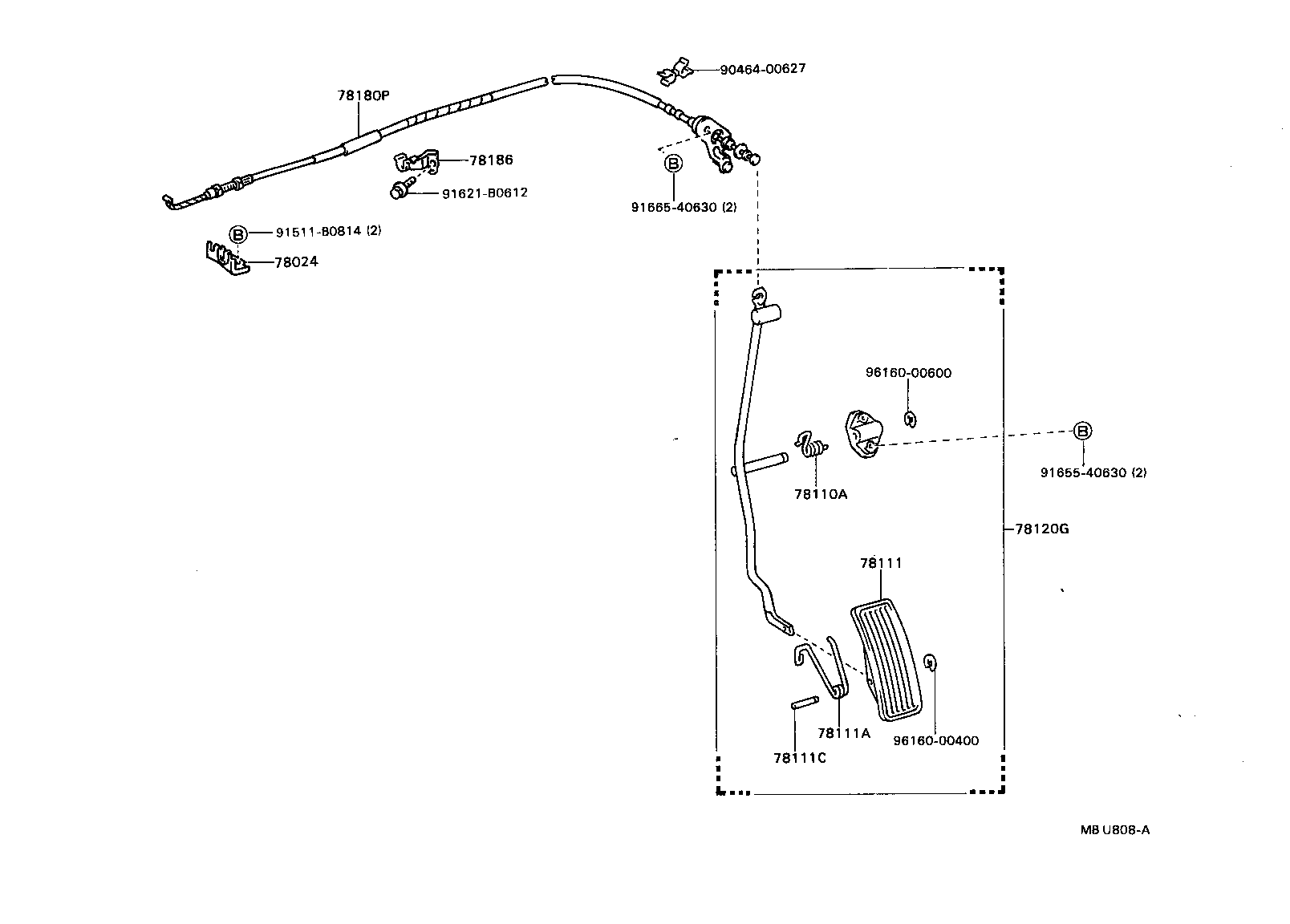

Click highlighted areas on diagram

diagram 78024 78110A 78111 78111A 78111C 78120G 78180P 78186 9046400627 91511B0814 91621B0612 9165540630 9166540630 9616000400 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-32120

SV32,33,35..ETO,LUM,VE,VX,ZV,ZX

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-23069

CV30,SV3#,VZV3#..4FC

 1
78111 - PEDAL, ACCELERATOR
78111-12100

CV30,SV3#,VZV3#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23119

CV30,SV3#,VZV3#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

CV30,SV3#,VZV3#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-32130

SV3#,VZV3#..4FC

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-32400

SV32,33,35..ETO,LUM,VE,VX,ZV,ZX

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-32060

SV32,33,35..ETO,LUM,VE,VX,ZV,ZX

 1
Common parts
90464-00627
91511-B0814
91621-B0612
91655-40630
91665-40630
96160-00400
96160-00600
