SV33-BEMMK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9406)SV3#

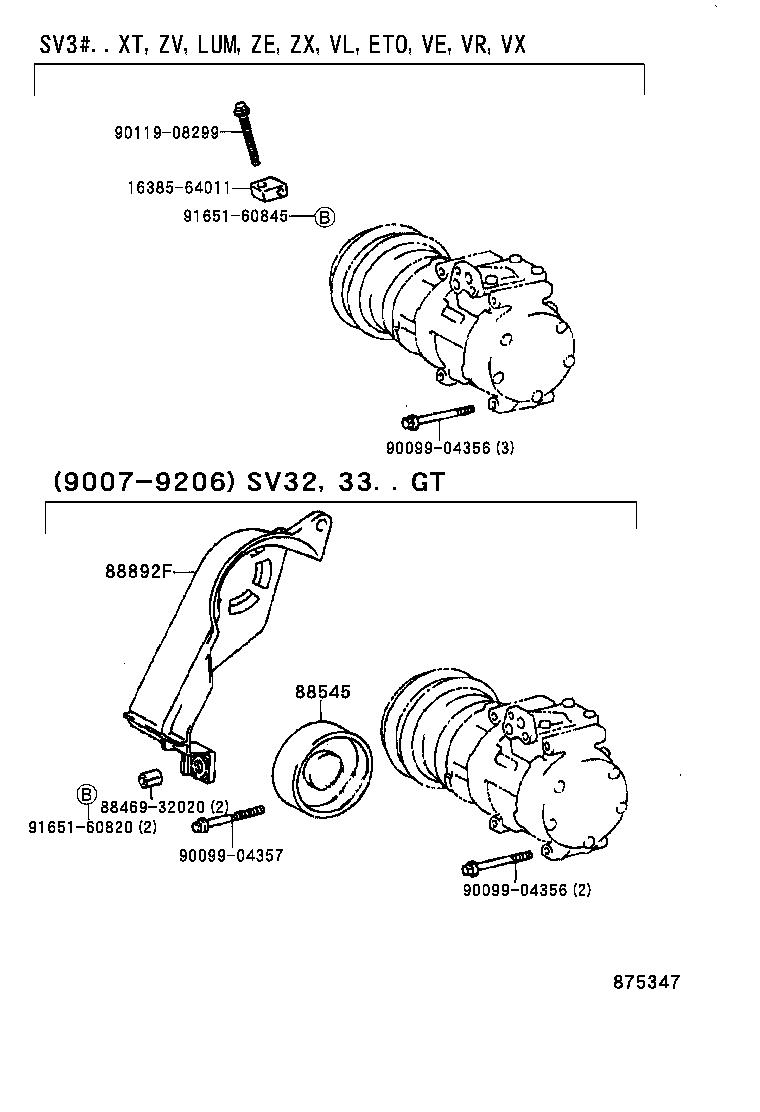

Click highlighted areas on diagram

diagram 1638564011 8846932020 88545 88892F 9009904356 9009904356 9009904357 9011908299 9165160820 9165160845
Part # Description Qty Price
Common parts
16385-64011
88469-32020
90099-04356
90099-04357
90119-08299
91651-60820
91651-60845

(9007-9406)

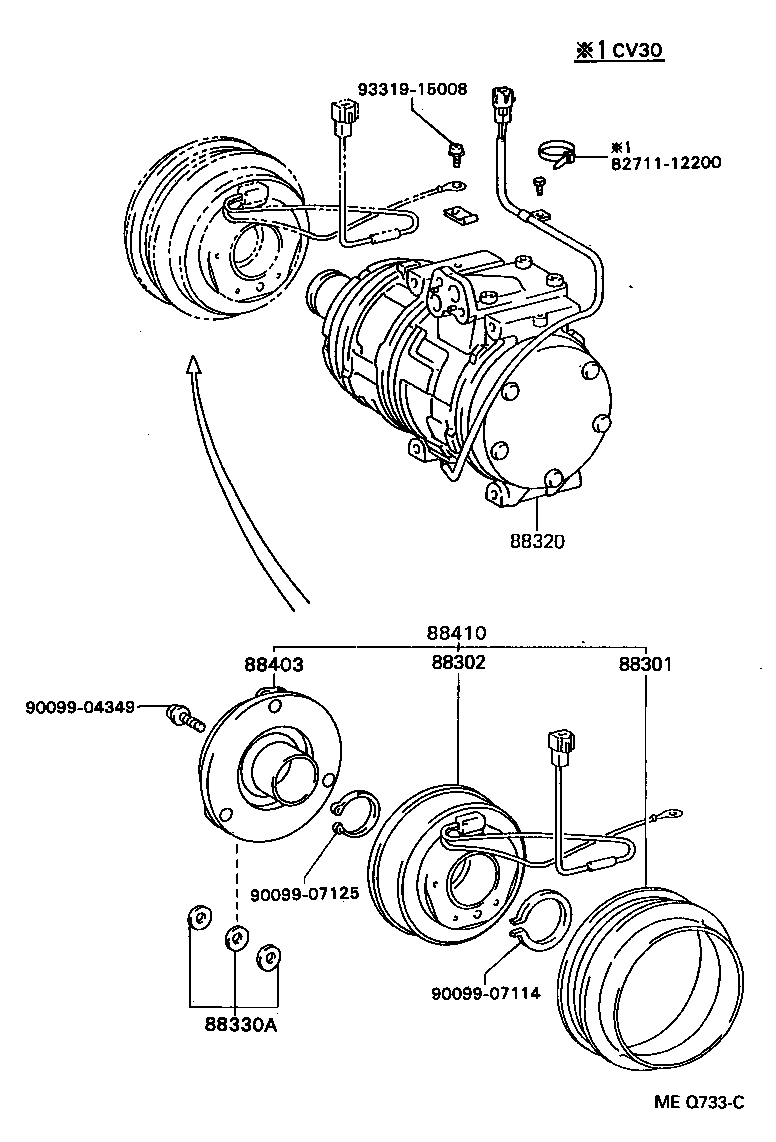

Click highlighted areas on diagram

diagram 8271112200 88301 88302 88320 88330A 88403 88410 9009904349 9009907114 9009907125 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-20090

SV3#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-2B010

SV3#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-32121

SV3#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

SV3#,VZV3#

3PIECE SET

 1
90099-01555

SV3#,VZV3#

厚さ=0.5

 1
90099-01553

SV3#,VZV3#

厚さ=0.1

 1
90099-01554

SV3#,VZV3#

厚さ=0.3

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16011

SV3#,VZV3#

 1
88410 - CLUTCH ASSY, MAGNET
88410-20600

SV3#

 1
Common parts
82711-12200
90099-04349
90099-07114
90099-07125
93319-15008
