SV33-BEMMK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

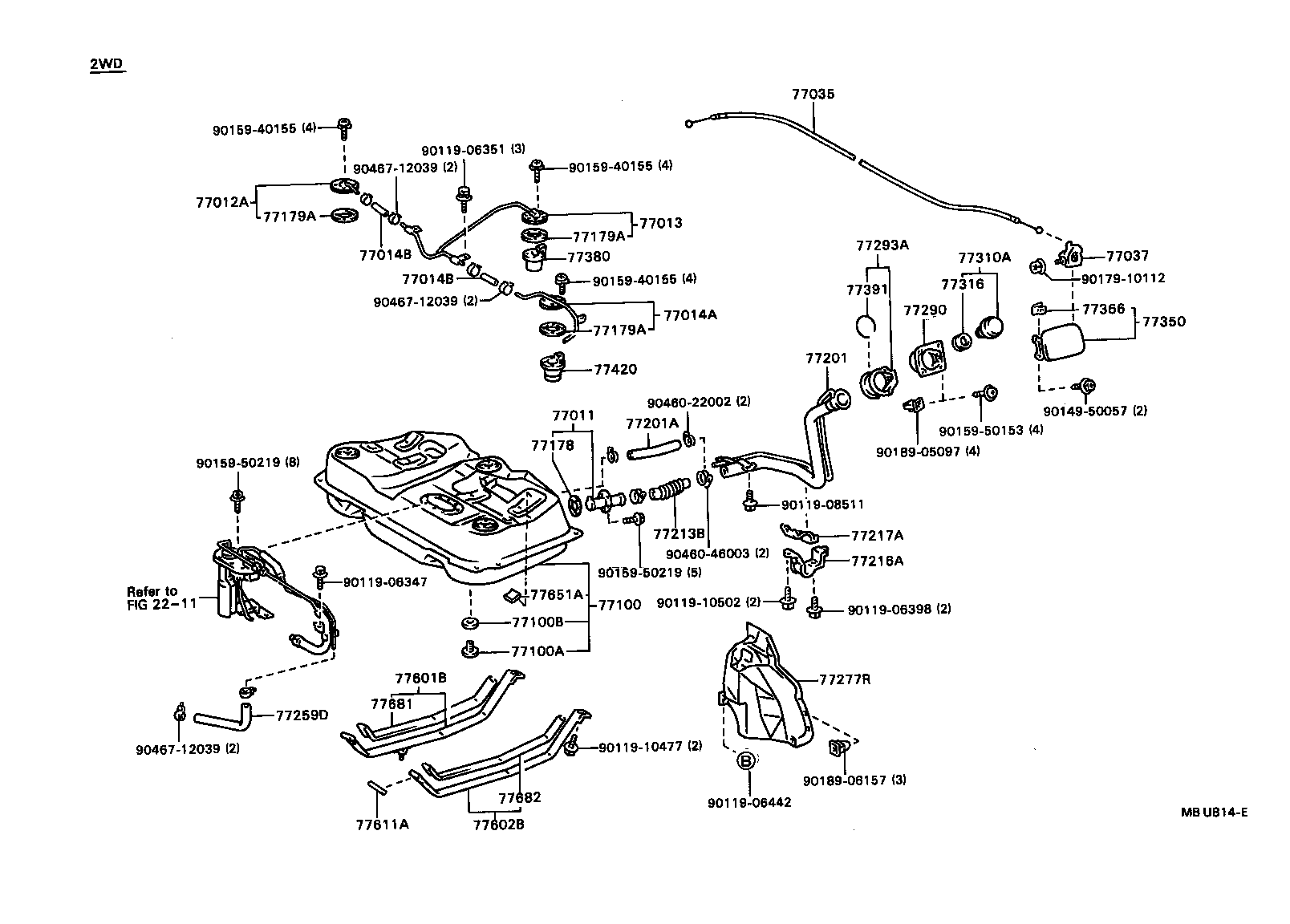

ILLUST NO. 1 OF 2(9007- )SV30,32,33,VZV3#

Click highlighted areas on diagram

diagram 2211 77011 77012A 77013 77014A 77014B 77014B 77035 77037 77100 77100A 77100B 77178 77179A 77179A 77179A 77201 77201A 77213B 77216A 77217A 77259D 77277R 77290 77293A 77310A 77316 77350 77366 77380 77391 77420 77601B 77602B 77611A 77651A 77681 77682 9011906347 9011906351 9011906398 9011906442 9011908511 9011910477 9011910502 9014950057 9015940155 9015940155 9015940155 9015950153 9015950219 9015950219 9017910112 9018905097 9018906157 9046022002 9046046003 9046712039 9046712039 9046712039
Part # Description Qty Price
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-10050

CV30,SV3#,VZV3#

 1
77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77012-32070

CV30,SV30,32,33,VZV3#

 1
77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2
77013-32060

SV30,32,33,VZV3#

 1
77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3
77014-32070

SV30,32,33,VZV3#

 1
77014B - HOSE, FUEL (FOR FUEL TANK BREATHER TUBE)
95333-06010

CV30,SV3#,VZV3#

*H,L=100

 2
77014B - HOSE, FUEL (FOR FUEL TANK BREATHER TUBE)
95333-06010

CV30,SV3#,VZV3#

*H,L=100

 2
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-32130

CV30,SV3#..SED

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-12050

CV30,SV3#,VZV3#

 1
77100 - TANK ASSY, FUEL
77001-39305

CV30,SV30,32,33,VZV3#

 1
77100A - PLUG(FOR FUEL TANK)
90341-20004

CV30,SV30,32,33,VZV3#

 1
77100B - GASKET(FOR FUEL TANK)
90430-20007

CV30,SV30,32,33,VZV3#

 1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-20030

CV30,SV3#,VZV3#

 1
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010

CV30,SV3#,VZV3#

 3
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010

CV30,SV3#,VZV3#

 3
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010

CV30,SV3#,VZV3#

 3
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-32130

CV30,SV3#,VZV3#

 1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
90445-22024

CV30,SV30,32,33,VZV3#

長さ=385

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-32040

CV30,SV30,32,33,VZV3#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
77213-32040

CV30,SV30,32,33,VZV3#

 1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-32050

CV30,SV30,32,33,VZV3#

 1
77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2
77217-32030

CV30,SV30,32,33,VZV3#

 1
77259D - HOSE, FUEL, NO.1
77259-32030

CV30,SV30,32,33,VZV3#

 1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-32040

CV30,SV3#..SED

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77290-32030

CV30,SV3#,VZV3#

 1
77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3
77293-32020

CV30,SV3#,VZV3#

 1
77310A - CAP ASSY, FUEL TANK
77310-16011

SV3#,VZV3#

 1
77316 - GASKET, FUEL TANK CAP
77316-16010

CV30,SV3#,VZV3#

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-32070

CV30,SV3#..SED

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-12030

CV30,SV3#,VZV3#

 1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010

CV30,SV3#,VZV3#

 1
77391 - RING, FUEL INLET BOX
77391-16011

CV30,SV3#,VZV3#

 1
77420 - VALVE ASSY, FUEL CUT OFF, NO.2
77420-26010

CV30,SV3#,VZV3#

 2
77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH
77601-32080

CV30,SV30,32,33,VZV3#

 1
77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH
77602-32070

CV30,SV30,32,33,VZV3#

 1
77611A - PIN (FOR FUEL TANK BAND)
90250-08019

CV30,SV3#,VZV3#

 2
77651A - CUSHION, FUEL TANK, NO.1
77651-32050

CV30,SV3#,VZV3#

 8
77681 - SEAT, FUEL TANK BAND, RH
77681-32040

CV30,SV3#,VZV3#

 1
77681-32040

CV30,SV30,32,33,VZV3#

 1
77682 - SEAT, FUEL TANK BAND, LH
77681-32040

CV30,SV3#,VZV3#

 1
Common parts
90119-06347
90119-06351
90119-06398
90119-06442
90119-08511
90119-10477
90119-10502
90149-50057
90159-40155
90159-50153
90159-50219
90179-10112
90189-05097
90189-06157
90460-22002
90460-46003
90467-12039
Linked diagrams
2211

ILLUST NO. 2 OF 2(9007-9105)SV3#,VZV3#

Click highlighted areas on diagram

diagram 77251B 77255D 77261D 77261E 77261F 77266A 77267A 77277A 77411B 77412 77740 77740F 77751 77754 77754 77763 9011906198 9011906746 9011906746 9017906129 9017906219 9046400410 9046711009 9046711009 9046712001 9046712039 9046712039 9046713054 9048001277 9048001277 9048001360 9048011010 9048015023 9091710079 9094901499 9095901275 9095901412 9165640616 9613230600
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-32160

SV3#,VZV3#

 1
77255D - TUBE, FUEL RETURN
77255-32120

CV30,SV3#,VZV3#

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-32100

SV3#,VZV3#

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06030

SV3#,VZV3#

*H,L=300

 1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020

SV30,32,33,VZV3#

*H,L=200

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-32030

CV30,SV3#,VZV3#

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-32040

CV30,SV3#,VZV3#

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12131

VZV32,33

長さ=390

 1
90447-12085

SV3#..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX

長さ=320

 1
90447-12085

SV30,32,33..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX

長さ=320

 1
77411B - SUPPORT, FUEL TUBE GROMMET, NO.1
77411-32010

CV30,SV3#,VZV3#

 3
77412 - SUPPORT, FUEL TUBE GROMMET, NO.2
77412-32010

CV30,SV3#,VZV3#

 1
77740 - CANISTER ASSY, CHARCOAL
77704-32020

SV3#,VZV3#

 1
77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77264-32090

SV3#,VZV3#

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-32080

SV3#,VZV3#

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-32130

SV3#,VZV3#

CHECK VALVE

 1
77754-32120

SV3#,VZV3#

CANISTER

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-32130

SV3#,VZV3#

CHECK VALVE

 1
77754-32120

SV3#,VZV3#

CANISTER

 1
77763 - CASE, CHARCOAL CANISTER DRAIN
77763-32010

SV3#,VZV3#

 1
Common parts
90119-06198
90119-06746
90179-06129
90179-06219
90464-00410
90467-11009
90467-12001
90467-12039
90467-13054
90480-01277
90480-01360
90480-11010
90480-15023
90917-10079
90949-01499
90959-01275
90959-01412
91656-40616
96132-30600

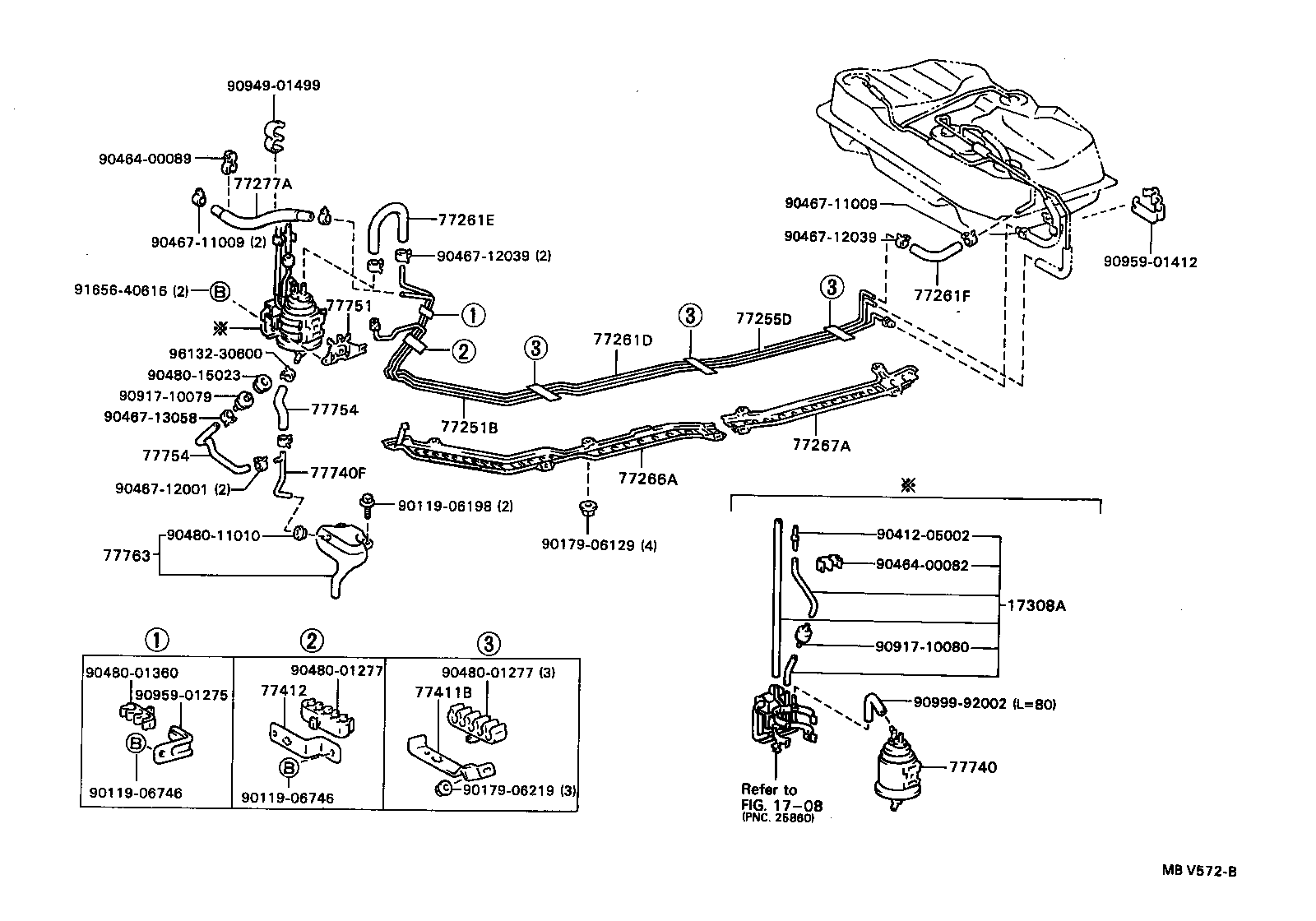

ILLUST NO. 2 OF 2(9105- )SV3#

Click highlighted areas on diagram

diagram 1708 17308A 77251B 77255D 77261D 77261E 77261F 77266A 77267A 77277A 77411B 77412 77740 77740F 77751 77754 77754 77763 9011906198 9011906746 9011906746 9017906129 9017906219 9041205002 9046400082 9046400089 9046711009 9046711009 9046712001 9046712039 9046712039 9046713058 9048001277 9048001277 9048001360 9048011010 9048015023 9091710079 9091710080 9094901499 9095901275 9095901412 9099992002 9165640616 9613230600
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-32160

SV3#,VZV3#

 1
77255D - TUBE, FUEL RETURN
77255-32120

CV30,SV3#,VZV3#

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-32100

SV3#,VZV3#

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06030

SV3#,VZV3#

*H,L=300

 1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020

SV30,32,33,VZV3#

*H,L=200

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-32030

CV30,SV3#,VZV3#

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-32040

CV30,SV3#,VZV3#

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12131

VZV32,33

長さ=390

 1
90447-12085

SV3#..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX

長さ=320

 1
90447-12085

SV30,32,33..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX

長さ=320

 1
77411B - SUPPORT, FUEL TUBE GROMMET, NO.1
77411-32010

CV30,SV3#,VZV3#

 3
77412 - SUPPORT, FUEL TUBE GROMMET, NO.2
77412-32010

CV30,SV3#,VZV3#

 1
77740 - CANISTER ASSY, CHARCOAL
77704-32020

SV3#,VZV3#

 1
77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77264-32090

SV3#,VZV3#

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-32080

SV3#,VZV3#

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-32130

SV3#,VZV3#

CHECK VALVE

 1
77754-32120

SV3#,VZV3#

CANISTER

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-32130

SV3#,VZV3#

CHECK VALVE

 1
77754-32120

SV3#,VZV3#

CANISTER

 1
77763 - CASE, CHARCOAL CANISTER DRAIN
77763-32010

SV3#,VZV3#

 1
Common parts
90119-06198
90119-06746
90179-06129
90179-06219
90412-05002
90464-00082
90464-00089
90467-11009
90467-12001
90467-12039
90467-13058
90480-01277
90480-01360
90480-11010
90480-15023
90917-10079
90917-10080
90949-01499
90959-01275
90959-01412
90999-92002
91656-40616
96132-30600
Linked diagrams
1708
