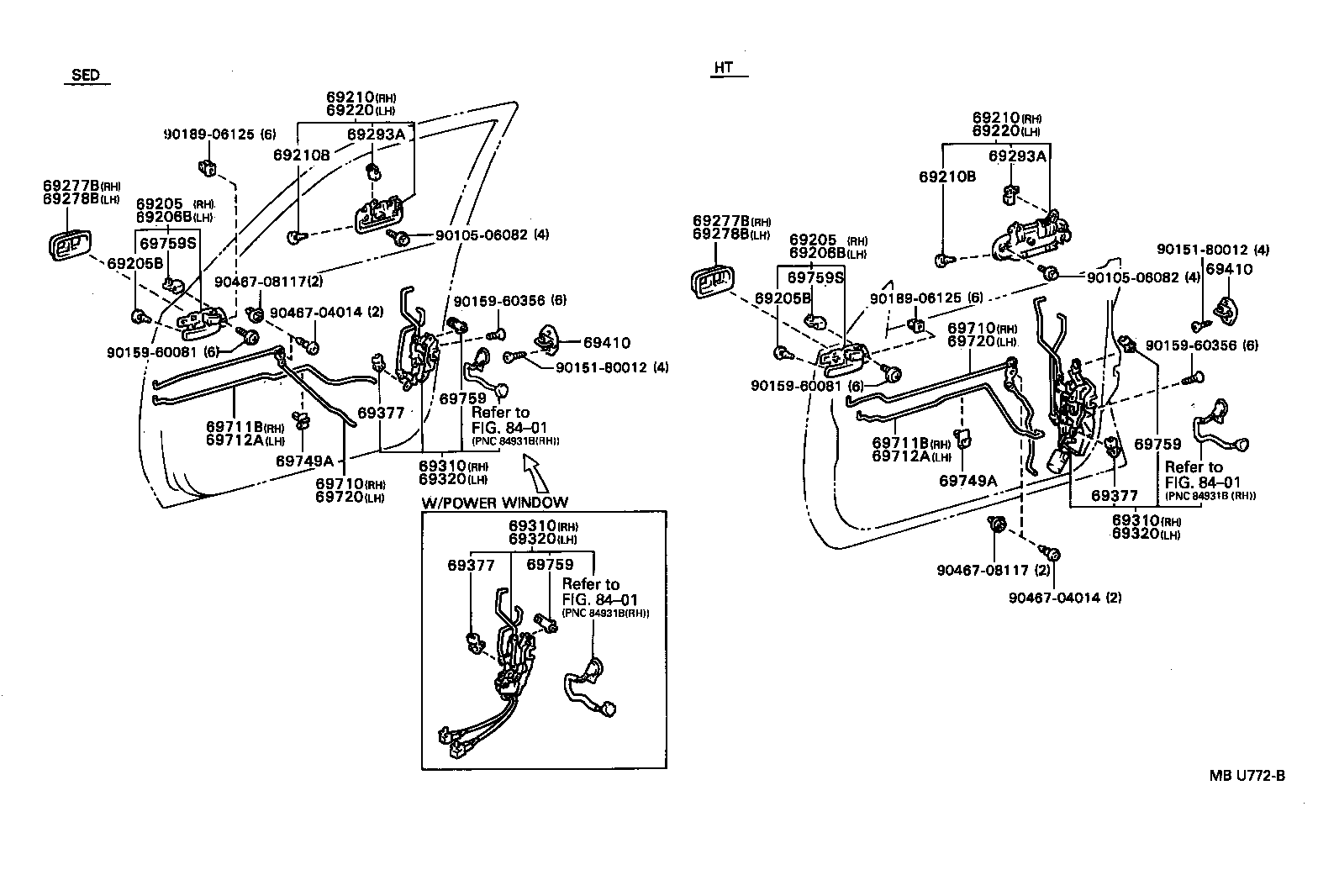

SV33-BEMMK (1990)
Toyota Camry/Vista
(9007- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-3207002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 69205-3207003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-3207002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 69205-3207003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
CV30,SV3#,VZV3# |
2 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
CV30,SV3#,VZV3# |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-3207002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 69206-3207003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-3207002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 69206-3207003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-3209008 |
CV30,SV3#..SED SUPER WHITE 2,040 |
1 | ||
| 69210-3209003 |
CV30,SV3#..SED DARK BLUISH GRAY M,191 |
1 | ||
| 69210-3209002 |
CV30,SV3#..SED RED MICA M,3J9 |
1 | ||
| 69210-3209007 |
CV30,SV3#..SED MED TURQUOISE OPAL,744 |
1 | ||
| 69210-3209017 |
CV30,SV3#..SED GRAYISH GREEN M,6K6 |
1 | ||
| 69210-3209013 |
CV30,SV3#..SED AMETHYST SILVER M,920 |
1 | ||
| 69210-32090A0 |
SV32,33..SED SUPER WHITE 2,040 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-3209008 |
CV30,SV3#..SED SUPER WHITE 2,040 |
1 | ||
| 69210-3209003 |
CV30,SV3#..SED DARK BLUISH GRAY M,191 |
1 | ||
| 69210-3209002 |
CV30,SV3#..SED RED MICA M,3J9 |
1 | ||
| 69210-3209007 |
CV30,SV3#..SED MED TURQUOISE OPAL,744 |
1 | ||
| 69210-3209017 |
CV30,SV3#..SED GRAYISH GREEN M,6K6 |
1 | ||
| 69210-3209013 |
CV30,SV3#..SED AMETHYST SILVER M,920 |
1 | ||
| 69210-32090A0 |
SV32,33..SED SUPER WHITE 2,040 |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04014 |
CV30,SV3#..SED |
4 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04014 |
CV30,SV3#..SED |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-3209002 |
CV30,SV3#..SED RED MICA M,3J9 |
1 | ||
| 69220-3209007 |
CV30,SV3#..SED MED TURQUOISE OPAL,744 |
1 | ||
| 69220-3209008 |
CV30,SV3#..SED SUPER WHITE 2,040 |
1 | ||
| 69220-3209003 |
CV30,SV3#..SED DARK BLUISH GRAY M,191 |
1 | ||
| 69220-32090A0 |
SV32,33..SED SUPER WHITE 2,040 |
1 | ||
| 69220-3209013 |
CV30,SV3#..SED AMETHYST SILVER M,920 |
1 | ||
| 69220-3209017 |
CV30,SV3#..SED GRAYISH GREEN M,6K6 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-3209002 |
CV30,SV3#..SED RED MICA M,3J9 |
1 | ||
| 69220-3209007 |
CV30,SV3#..SED MED TURQUOISE OPAL,744 |
1 | ||
| 69220-3209008 |
CV30,SV3#..SED SUPER WHITE 2,040 |
1 | ||
| 69220-3209003 |
CV30,SV3#..SED DARK BLUISH GRAY M,191 |
1 | ||
| 69220-32090A0 |
SV32,33..SED SUPER WHITE 2,040 |
1 | ||
| 69220-3209013 |
CV30,SV3#..SED AMETHYST SILVER M,920 |
1 | ||
| 69220-3209017 |
CV30,SV3#..SED GRAYISH GREEN M,6K6 |
1 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-3206002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 69277-3206003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-3206002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 69277-3206003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-3205002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 69278-3205003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-3205002 |
CV30,SV3#,VZV3# TAUPE,TRIM9# |
1 | ||
| 69278-3205003 |
CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12060 |
CV30,SV3#,VZV3# 左側 |
1 | ||
| 69293-12050 |
CV30,SV3#,VZV3# 右側 |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12060 |
CV30,SV3#,VZV3# 左側 |
1 | ||
| 69293-12050 |
CV30,SV3#,VZV3# 右側 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-32250 |
VZV32,33 |
1 | ||
| 69030-32230 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-32250 |
VZV32,33 |
1 | ||
| 69030-32230 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-32250 |
VZV32,33 |
1 | ||
| 69030-32230 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-32210 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) |
1 | ||
| 69040-32240 |
VZV32,33 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-32210 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) |
1 | ||
| 69040-32240 |
VZV32,33 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-32210 |
CV30,SV3#..SED..(ETO,GT,LUM,VE,VR,VX,ZE,ZX) |
1 | ||
| 69040-32240 |
VZV32,33 |
1 | ||
| 69377 - SNAP, FRONT DOOR LOCK CONTROL ROD | ||||
| 69759-24020 |
CV30,SV3#..SED 左側 |
1 | ||
| 69759-24010 |
CV30,SV3#..SED 右側 |
1 | ||
| 69377 - SNAP, FRONT DOOR LOCK CONTROL ROD | ||||
| 69759-24020 |
CV30,SV3#..SED 左側 |
1 | ||
| 69759-24010 |
CV30,SV3#..SED 右側 |
1 | ||
| 69377 - SNAP, FRONT DOOR LOCK CONTROL ROD | ||||
| 69759-24020 |
CV30,SV3#..SED 左側 |
1 | ||
| 69759-24010 |
CV30,SV3#..SED 右側 |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-87001 |
CV30,SV3#,VZV3# |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-87001 |
CV30,SV3#,VZV3# |
2 | ||
| 69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH | ||||
| 69710-32010 |
CV30,SV3#..SED |
1 | ||
| 69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH | ||||
| 69710-32010 |
CV30,SV3#..SED |
1 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-32060 |
CV30,SV3#..SED |
1 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-32060 |
CV30,SV3#..SED |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-32050 |
CV30,SV3#..SED |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-32050 |
CV30,SV3#..SED |
1 | ||
| 69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH | ||||
| 69720-32010 |
CV30,SV3#..SED |
1 | ||
| 69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH | ||||
| 69720-32010 |
CV30,SV3#..SED |
1 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-50010 |
CV30,SV3#,VZV3# |
2 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-50010 |
CV30,SV3#,VZV3# |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24060 |
CV30,SV3#,VZV3# 右側 |
2 | ||
| 69759-24050 |
CV30,SV3#,VZV3# 左側 |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24060 |
CV30,SV3#,VZV3# 右側 |
2 | ||
| 69759-24050 |
CV30,SV3#,VZV3# 左側 |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24060 |
CV30,SV3#,VZV3# 右側 |
2 | ||
| 69759-24050 |
CV30,SV3#,VZV3# 左側 |
2 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-24070 |
CV30,SV3#,VZV3# 右側 |
2 | ||
| 69759-14050 |
CV30,SV3#,VZV3# 左側 |
2 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-24070 |
CV30,SV3#,VZV3# 右側 |
2 | ||
| 69759-14050 |
CV30,SV3#,VZV3# 左側 |
2 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90151-80012 | ||||
| 90159-60081 | ||||
| 90159-60356 | ||||
| 90189-06125 | ||||
| 90467-04014 | ||||
| 90467-08117 | ||||
| Linked diagrams | ||||
| 8401 | ||||
