SV33-BEMGK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1994
Engine 3SFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007- )

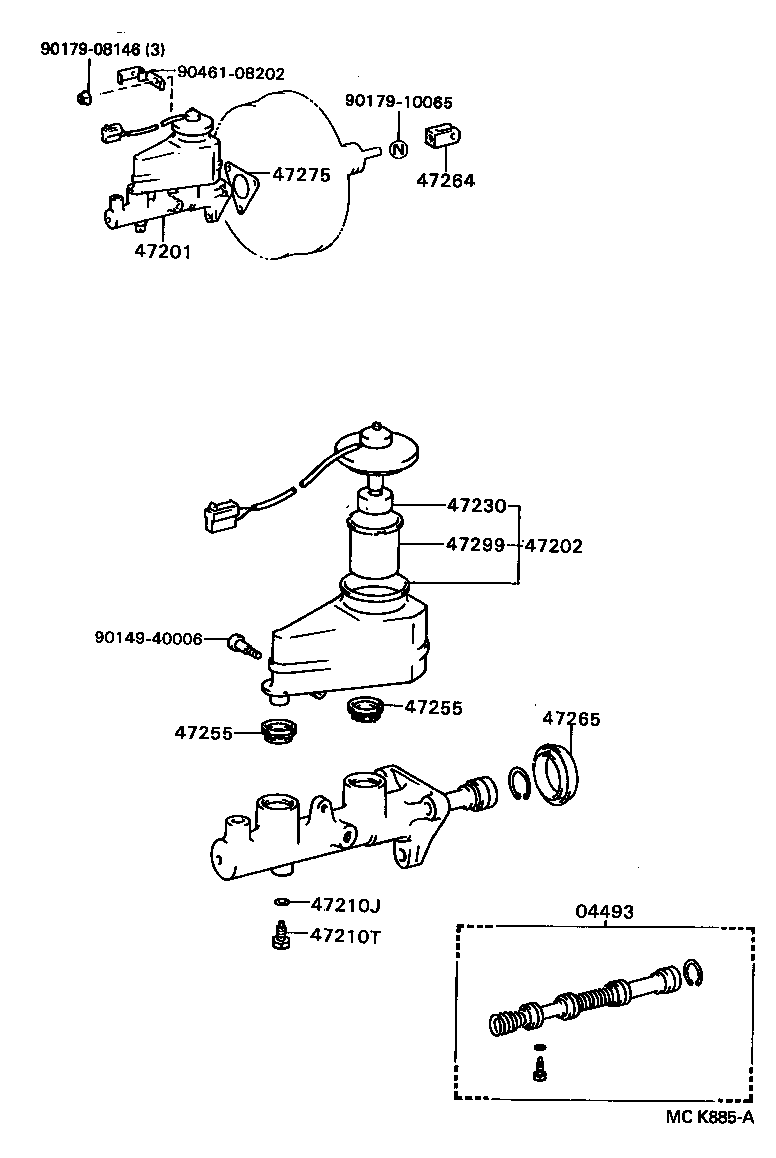

Click highlighted areas on diagram

diagram 04493 47201 47202 47210J 47210T 47230 47255 47255 47264 47265 47275 47299 9014940006 9017908146 9017910065 9046108202
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-32070

SV3#,VZV30,31

ｱﾘ(*66)

 1
04493-32070

SV35;SV30,32,33,VZV3#..GT,PRO,VR,VX,ZE,ZX

ｱﾘ(*66)

 1
04493-20220

SV30,VZV32,33..4FC;SV32,33,35,VZV30,31

 1
04493-32070

VZV32,33

ﾌﾟﾛﾐﾈﾝﾄ G OR ｱﾘ(*66)

 1
04493-32070

SV3#,VZV3#

ｱﾘ(*66)

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-32241

VZV32,33

ﾌﾟﾛﾐﾈﾝﾄ G OR ｱﾘ(*66)

 1
47201-32241

SV35;SV30,32,33,VZV3#..GT,PRO,VR,VX,ZE,ZX

ｱﾘ(*66)

 1
47201-32241

SV3#,VZV3#

ｱﾘ(*66)

 1
47201-32241

SV3#,VZV30,31

ｱﾘ(*66)

 1
47201-32230

SV30,VZV32,33..4FC;SV32,33,35,VZV30,31

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47202-32070

SV30,VZV32,33..4FC;SV32,33,35,VZV30,31

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

CV30,SV3#,VZV3#

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

CV30,SV3#,VZV3#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
84460-20110

SV30,VZV32,33..4FC;SV32,33,35,VZV30,31

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

CV30,SV3#,VZV3#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

CV30,SV3#,VZV3#

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-16020

CV30,SV3#,VZV3#

 1
47265 - BOOT, MASTER CYLINDER
47265-20050

CV30,SV3#,VZV3#

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-32010

CV30,SV3#,VZV3#

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-32010

CV30,SV3#,VZV3#

 1
Common parts
90149-40006
90179-08146
90179-10065
90461-08202
