SV33-AEPVF (1990)
Toyota Camry/Vista
Production
Jul 1990
-
Jun 1992
Engine
3SGE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9007-9206)CV30,SV3#..CAM

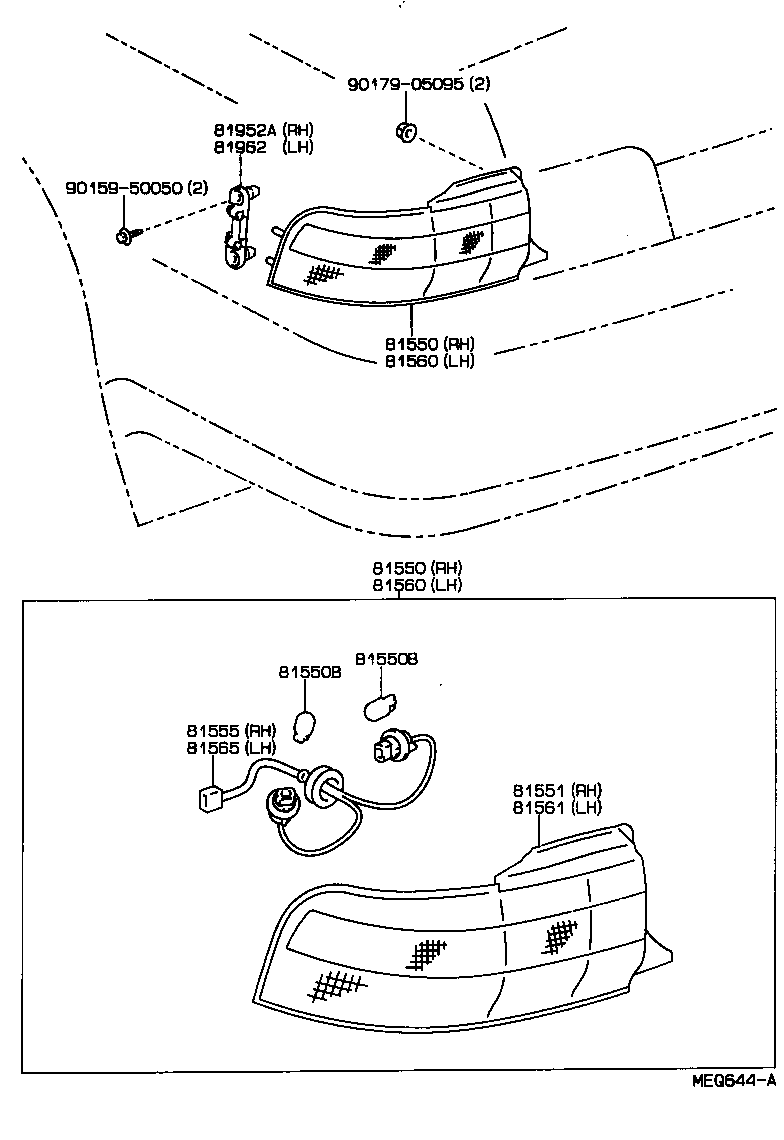

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-32230 |
CV30,SV3#..CAM |
1 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-32230 |
CV30,SV3#..CAM |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13051 |
CV30,SV3#..SED 12V 21/5W |
2 | ||
| 90981-13050 |
VZV3#;CV30,SV3#..SED 12V 21W |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13051 |
CV30,SV3#..SED 12V 21/5W |
2 | ||
| 90981-13050 |
VZV3#;CV30,SV3#..SED 12V 21W |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-32230 |
CV30,SV3#..CAM |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-32230 |
CV30,SV3#..CAM |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-32230 |
CV30,SV3#..CAM |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-32230 |
CV30,SV3#..CAM |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-32230 |
CV30,SV3#..CAM |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-32230 |
CV30,SV3#..CAM |
1 | ||
| 81952A - COVER, REAR LAMP, RH | ||||
| 61663-32010 |
CV30,SV3#..SED |
1 | ||
| 81962 - COVER, REAR LAMP, LH | ||||
| 61663-32010 |
CV30,SV3#..SED |
1 | ||
| Common parts | ||||
| 90159-50050 | ||||
| 90179-05095 | ||||
