SV33-AEPVF (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 3SGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9007- )SV32,33,35,VZV3#

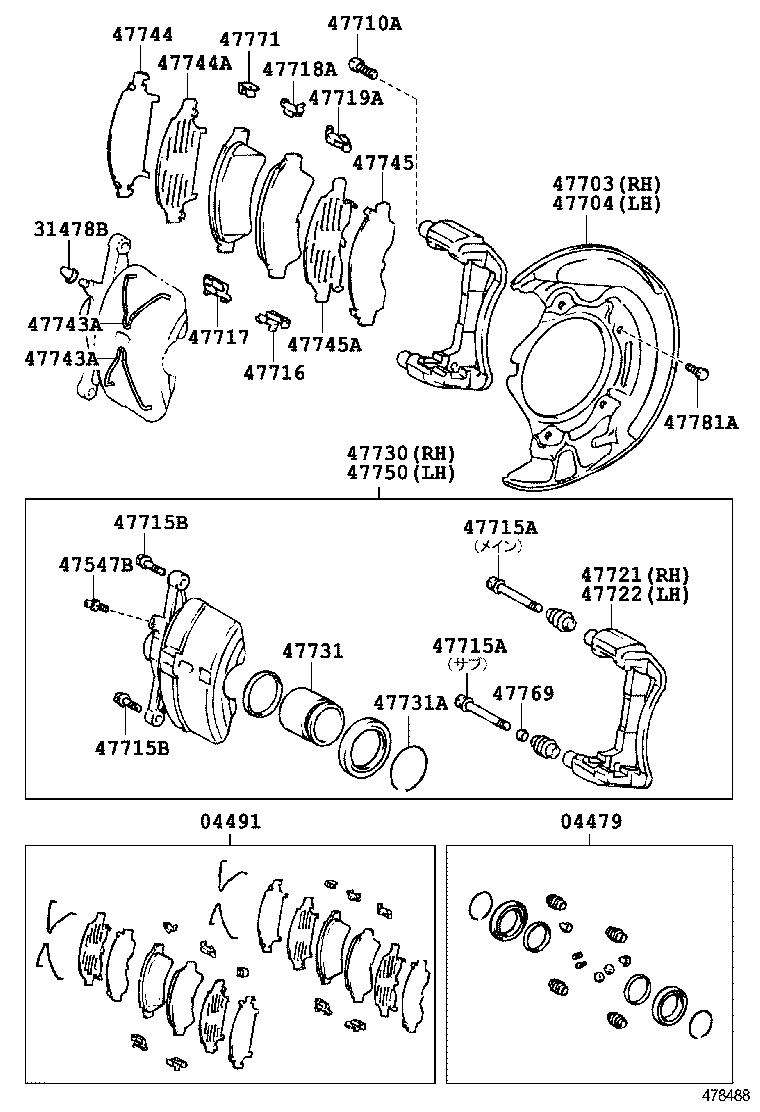

Click highlighted areas on diagram

diagram 04479 04491 31478B 47547B 47703 47704 47710A 47715A 47715A 47715B 47715B 47716 47717 47718A 47719A 47721 47722 47730 47731 47731A 47743A 47743A 47744 47744A 47745 47745A 47750 47769 47771 47781A
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-32070

CV30,SV3#,VZV3#

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-32411

SV32,33,VZV3#..GT,PRO

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

CV30,SV3#,VZV3#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

CV30,SV3#,VZV3#

 2
47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47703-32080

SV32,33,VZV3#..GT,PRO

 1
47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47704-32080

SV32,33,VZV3#..GT,PRO

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

CV30,SV3#,VZV3#

*12−1.25PX29.5−23

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-50010

SV32,33,35,VZV3#

ﾒｲﾝ & ｻﾌﾞ ﾋﾟﾝ側

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-50010

SV32,33,35,VZV3#

ﾒｲﾝ & ｻﾌﾞ ﾋﾟﾝ側

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

SV32,33,35,VZV3#

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

SV32,33,35,VZV3#

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-32070

CV30,SV3#,VZV3#

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47716-32080

CV30,SV3#,VZV3#

 2
47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)
47717-32070

CV30,SV3#,VZV3#

 2
47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)
47717-32080

CV30,SV3#,VZV3#

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-32120

SV32,33,VZV3#..GT,PRO

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-32120

SV32,33,VZV3#..GT,PRO

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-32130

SV32,33,VZV3#..GT,PRO

 1
47731 - PISTON, FRONT DISC BRAKE
47731-32040

CV30,SV3#,VZV3#

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-66001

CV30,SV3#,VZV3#

 2
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-32030

SV32,33,35,VZV3#

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-32030

SV32,33,35,VZV3#

 4
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47745-32080

SV32,33,35,VZV3#

 2
47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)
47742-32080

SV32,33,35,VZV3#

 2
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-32080

SV32,33,VZV3#..GT,PRO

 2
47745A - SHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)
47742-32080

SV32,33,VZV3#..GT,PRO

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-32130

SV32,33,VZV3#..GT,PRO

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-50010

SV32,33,35,VZV3#

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-50010

SV32,33,35,VZV3#

 2
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06227

CV30,SV3#,VZV3#

 8

ILLUST NO. 2 OF 2(9007- )

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-32120

SV32,33,VZV3#..GT,PRO

ﾏｰｸ SUMITOMO PS509H

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-32010

SV32,33,VZV3#..GT,PRO

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-32160

SV32,33,35,VZV3#

 1
