SV33-AEPVF (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 3SGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9206)3SGE ; (9007-9406)3SFE,4SFE..4FC

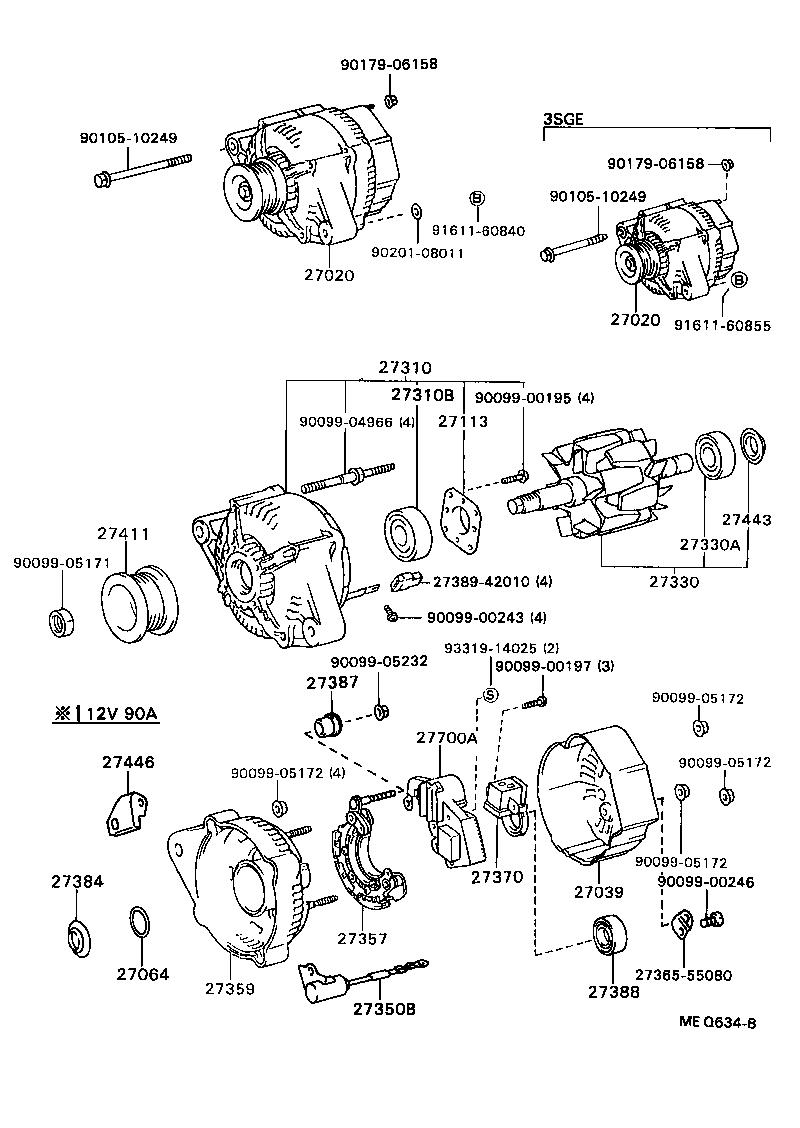

Click highlighted areas on diagram

12V 80A(3SFE,4SFE),12V 90A(3SGE)

diagram 27020 27020 27039 27064 27113 27310 27310B 27330 27330A 27350B 27357 27359 2736555080 27370 27384 27387 27388 2738942010 27411 27443 27446 27700A 9009900195 9009900197 9009900243 9009900246 9009904966 9009905171 9009905172 9009905172 9009905172 9009905172 9009905232 9010510249 9010510249 9017906158 9017906158 9020108011 9161160840 9161160855 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-74240

3SGE..SV32,33

12V 90A

 1
27060-74241

3SGE..SV32,33

12V 90A

 1
27020 - ALTERNATOR ASSY
27060-74240

3SGE..SV32,33

12V 90A

 1
27060-74241

3SGE..SV32,33

12V 90A

 1
27039 - COVER, ALTERNATOR REAR END
27039-74140

3SGE..SV32,33;3SFE,4SFE..SV3#..4FC

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

3SGE..SV32,33;3SFE,4SFE..SV3#..4FC

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-42010

3SGE..SV32,33;3SFE,4SFE..SV3#..4FC

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-74210

3SGE..SV32,33

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192

3SGE..SV32,33

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-42010

3SGE..SV32,33;3SFE,4SFE..SV3#..4FC

 1
27330-76030

3SGE..SV32,33;3SFE,4SFE..SV3#..4FC

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

3S#,4SFE,1VZFE,4VZFE..SV3#,VZV3#

 1
27350B - CONDENSER, ALTERNATOR
90099-52031

3SGE..SV32,33

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-74210

3SGE..SV32,33

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-74140

3SGE..SV32,33;3SFE,4SFE..SV3#..4FC

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-42010

3SGE..SV32,33;3SFE,4SFE..SV3#..4FC

 1
27384 - WASHER
27384-42010

3SGE..SV32,33;3SFE,4SFE..SV3#..4FC

 1
27387 - INSULATOR, TERMINAL
27387-74140

3SGE..SV32,33;3SFE,4SFE..SV3#..4FC

 1
27388 - COVER, ALTERNATOR BRUSH
27388-42010

3SGE..SV32,33;3SFE,4SFE..SV3#..4FC

 1
27411 - PULLEY, ALTERNATOR
27411-42030

3SGE..SV32,33

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

3S#,4SFE,1VZFE,4VZFE..SV3#,VZV3#

 1
27446 - CLIP, ALTERNATOR CORD
27446-62050

3SGE,1VZFE,4VZFE..SV32,33,VZV3#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-46030

3S#,4SFE,1VZFE,4VZFE..SV3#,VZV3#

 1
27700-74010

3S#,4SFE..SV3#

 1
27700-74010

3S#,4SFE,1VZFE..SV3#,VZV3#

 1
Common parts
27365-55080
27389-42010
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05171
90099-05172
90099-05232
90105-10249
90179-06158
90201-08011
91611-60840
91611-60855
93319-14025
