SV33-AEPVF (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 3SGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9206)3SGE

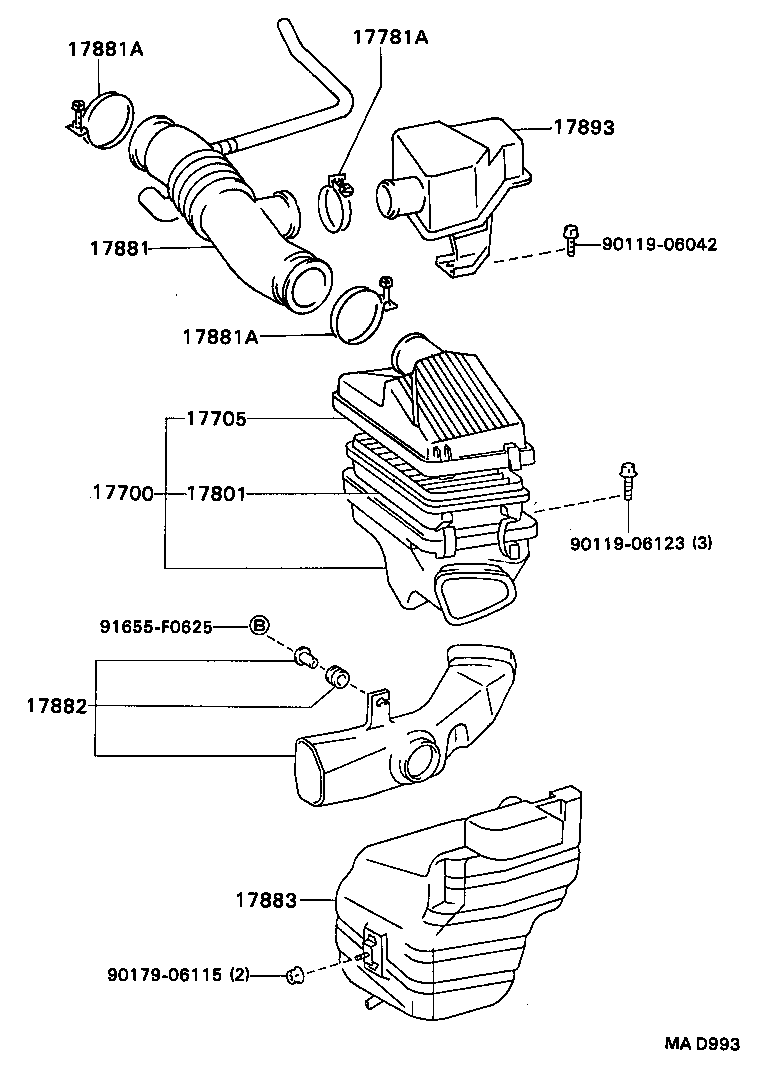

Click highlighted areas on diagram

diagram 17700 17705 17781A 17801 17881 17881A 17881A 17882 17883 17893 9011906042 9011906123 9017906115 91655F0625
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-74330

3SGE..SV32,33

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-74220

3SGE..SV32,33

 1
17781A - CLAMP, HOSE
96111-10600

3SGE..SV32,33

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74020

3S#,4SFE..SV3#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-74360

3SGE..SV32,33

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

3SGE..SV32,33

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

3SGE..SV32,33

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-74220

3S#,4SFE..SV3#

 1
17883 - HOSE, AIR CLEANER, NO.3
17883-74070

3S#,4SFE..SV3#

 1
17893 - RESONATOR, INTAKE AIR
17893-74140

3SGE..SV32,33

 1
Common parts
90119-06042
90119-06123
90179-06115
91655-F0625
