SV33-AEPMK (1990)
Toyota Camry/Vista

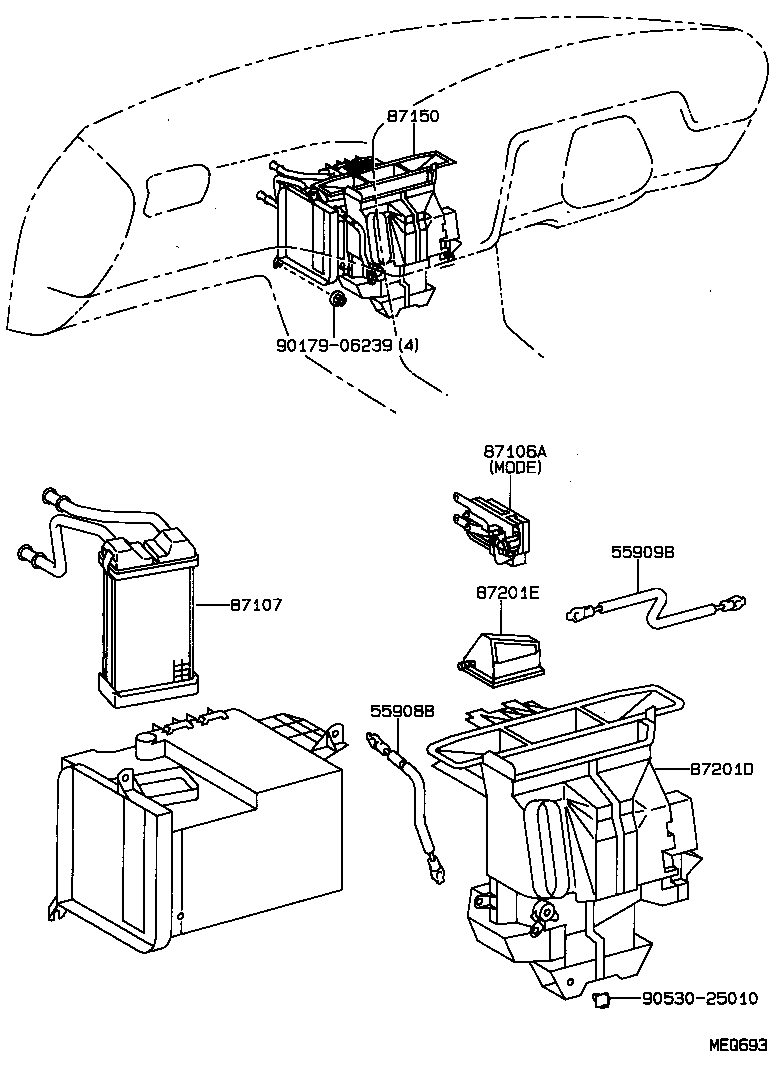

ILLUST NO. 1 OF 3(9007-9206)ETO,LUM,VE,VL,XT,ZV ; (9206-9406)ETO,LUM,VL,XT
RADIATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55908B - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 87286-32020 |
CV30,SV3#,VZV3# |
1 | ||
| 55909B - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-32130 |
CV30,SV3#..ETO,LUM,VE,VL,XT,ZV |
1 | ||
| 55909-32130 |
CV30..4FC..LUM;CV30..HT..4FC..ETO;SV3#..ETO,LUM,VL,XT;CV30..5F..(ETO,LUM) ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-32100 |
CV30,SV3#..ETO,LUM,VE,VL,XT,ZV ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87106-32070 |
CV30,SV3#,VZV3# MODE CONTROL |
1 | ||
| 87106-32070 |
CV30,SV3#..ETO,LUM,VE,VL,XT,ZV |
1 | ||
| 87106-32100 |
CV30,SV3#..ETO,LUM,VL,XT ｶﾝﾚｲﾁ ｼﾖｳ,MODE CONTROL |
1 | ||
| 87106-32070 |
CV30..4FC..LUM;CV30..HT..4FC..ETO;SV3#..ETO,LUM,VL,XT;CV30..5F..(ETO,LUM) ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 87106-32100 |
CV30..4FC..LUM;CV30..HT..4FC..ETO;SV3#..ETO,LUM,VL,XT;CV30..5F..(ETO,LUM) ｶﾝﾚｲﾁ ｼﾖｳ & ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 87106-32080 |
CV30,SV3#,VZV3# AIR MIX CONTROL |
1 | ||
| 87106-32080 |
CV30,SV3#..ETO,LUM,VE,ZV AIR MIX CONTROL |
1 | ||
| 87106-32080 |
CV30..4FC..LUM;CV30..HT..4FC..ETO;SV3#..ETO,LUM,VL,XT;CV30..5F..(ETO,LUM) ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-32090 |
SV3#,VZV3# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87107-32080 |
SV3#,VZV3# |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-32210 |
SV3#..ETO,LUM,VE,VL,XT,ZV |
1 | ||
| 87150-32250 |
SV3#..ETO,LUM,VL,XT |
1 | ||
| 87150-32220 |
CV30..4FC..LUM;CV30..HT..4FC..ETO;SV3#..ETO,LUM,VL,XT;CV30..5F..(ETO,LUM) ｶﾝﾚｲﾁ ｼﾖｳ & ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 87150-32220 |
CV30,SV3#..ETO,LUM,VE,VL,XT,ZV ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87150-32210 |
SV3#..ETO,LUM,VL,XT ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 87150-32270 |
CV30,SV3#..ETO,LUM,VL,XT ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87201D - DUCT SUB-ASSY, AIR | ||||
| 87201-32220 |
CV30,SV3#,VZV3# |
1 | ||
| 87201E - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87201-32230 |
CV30,SV3#,VZV3# |
1 | ||
| Common parts | ||||
| 90179-06239 | ||||
| 90530-25010 | ||||

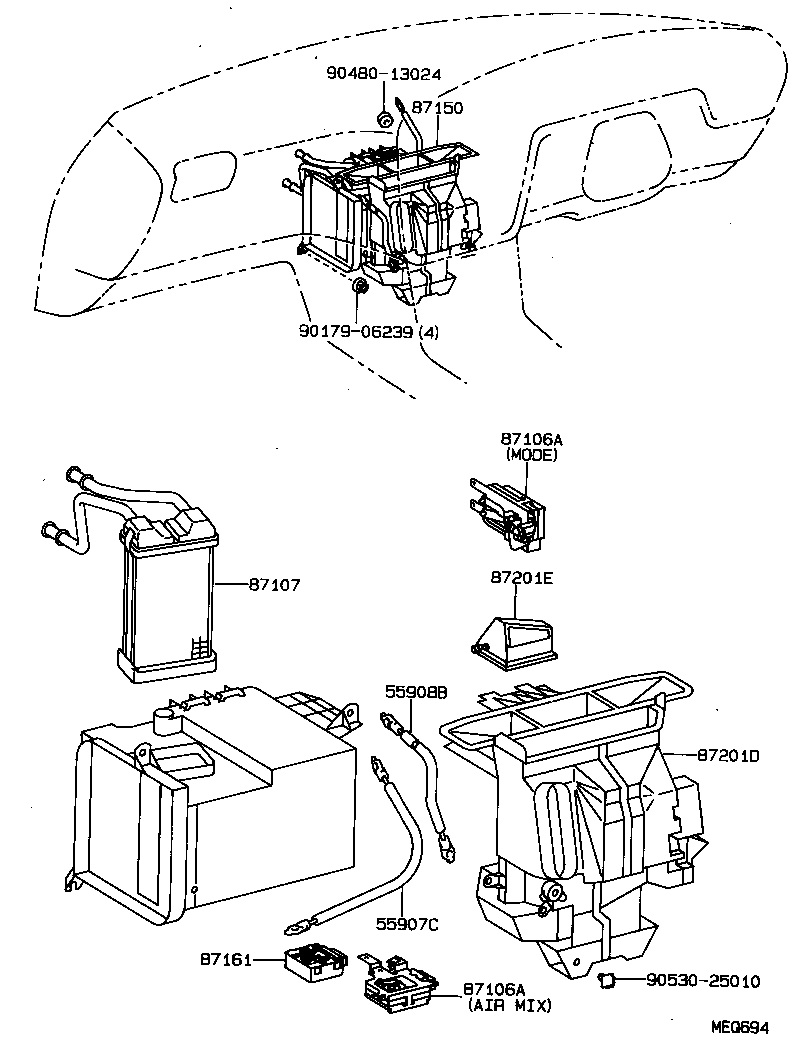

ILLUST NO. 1 OF 3(9007-9206)GT,VR,VX,ZE,ZX ; (9206-9406)ETO,LUM,VL,XT
RADIATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55907C - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 87286-32050 |
SV30,35..ETO,LUM,VE,VR,VX,ZE,ZV,ZX;CV30,SV32,33,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 87286-32050 |
CV30,SV3#,VZV3# |
1 | ||
| 55908B - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 87286-32020 |
CV30,SV3#,VZV3# |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-32100 |
CV30,SV3#..ETO,LUM,VE,VL,XT,ZV ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87106-32070 |
CV30,SV3#,VZV3# MODE CONTROL |
1 | ||
| 87106-32070 |
CV30,SV3#..ETO,LUM,VE,VL,XT,ZV |
1 | ||
| 87106-32100 |
CV30,SV3#..ETO,LUM,VL,XT ｶﾝﾚｲﾁ ｼﾖｳ,MODE CONTROL |
1 | ||
| 87106-32070 |
CV30..4FC..LUM;CV30..HT..4FC..ETO;SV3#..ETO,LUM,VL,XT;CV30..5F..(ETO,LUM) ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 87106-32100 |
CV30..4FC..LUM;CV30..HT..4FC..ETO;SV3#..ETO,LUM,VL,XT;CV30..5F..(ETO,LUM) ｶﾝﾚｲﾁ ｼﾖｳ & ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 87106-32080 |
CV30,SV3#,VZV3# AIR MIX CONTROL |
1 | ||
| 87106-32080 |
CV30,SV3#..ETO,LUM,VE,ZV AIR MIX CONTROL |
1 | ||
| 87106-32080 |
CV30..4FC..LUM;CV30..HT..4FC..ETO;SV3#..ETO,LUM,VL,XT;CV30..5F..(ETO,LUM) ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-32100 |
CV30,SV3#..ETO,LUM,VE,VL,XT,ZV ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87106-32070 |
CV30,SV3#,VZV3# MODE CONTROL |
1 | ||
| 87106-32070 |
CV30,SV3#..ETO,LUM,VE,VL,XT,ZV |
1 | ||
| 87106-32100 |
CV30,SV3#..ETO,LUM,VL,XT ｶﾝﾚｲﾁ ｼﾖｳ,MODE CONTROL |
1 | ||
| 87106-32070 |
CV30..4FC..LUM;CV30..HT..4FC..ETO;SV3#..ETO,LUM,VL,XT;CV30..5F..(ETO,LUM) ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 87106-32100 |
CV30..4FC..LUM;CV30..HT..4FC..ETO;SV3#..ETO,LUM,VL,XT;CV30..5F..(ETO,LUM) ｶﾝﾚｲﾁ ｼﾖｳ & ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 87106-32080 |
CV30,SV3#,VZV3# AIR MIX CONTROL |
1 | ||
| 87106-32080 |
CV30,SV3#..ETO,LUM,VE,ZV AIR MIX CONTROL |
1 | ||
| 87106-32080 |
CV30..4FC..LUM;CV30..HT..4FC..ETO;SV3#..ETO,LUM,VL,XT;CV30..5F..(ETO,LUM) ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-32090 |
SV3#,VZV3# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87107-32080 |
SV3#,VZV3# |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-32210 |
SV3#..ETO,LUM,VE,VL,XT,ZV |
1 | ||
| 87150-32250 |
SV3#..ETO,LUM,VL,XT |
1 | ||
| 87150-32220 |
CV30..4FC..LUM;CV30..HT..4FC..ETO;SV3#..ETO,LUM,VL,XT;CV30..5F..(ETO,LUM) ｶﾝﾚｲﾁ ｼﾖｳ & ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 87150-32220 |
CV30,SV3#..ETO,LUM,VE,VL,XT,ZV ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87150-32210 |
SV3#..ETO,LUM,VL,XT ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 87150-32270 |
CV30,SV3#..ETO,LUM,VL,XT ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87201D - DUCT SUB-ASSY, AIR | ||||
| 87201-32220 |
CV30,SV3#,VZV3# |
1 | ||
| 87201E - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87201-32230 |
CV30,SV3#,VZV3# |
1 | ||
| Common parts | ||||
| 90179-06239 | ||||
| 90480-13024 | ||||
| 90530-25010 | ||||

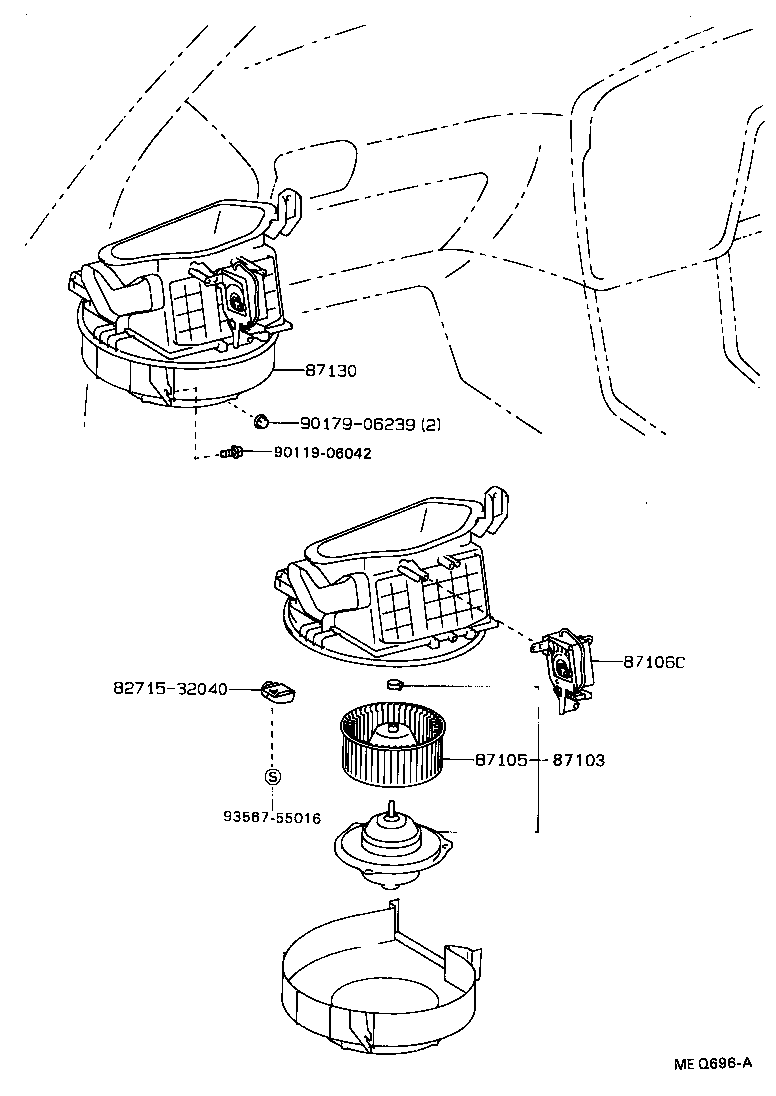

ILLUST NO. 2 OF 3(9007-9406)
BLOWER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-20050 |
CV30,SV3#,VZV3# |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-20100 |
CV30,SV3#,VZV3# |
1 | ||
| 87106C - SERVO SUB-ASSY, DAMPER(FOR BLOWER) | ||||
| 87106-32090 |
CV30,SV3#,VZV3# |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-32140 |
CV30,SV3#,VZV3# |
1 | ||
| Common parts | ||||
| 82715-32040 | ||||
| 90119-06042 | ||||
| 90179-06239 | ||||
| 93567-55016 | ||||

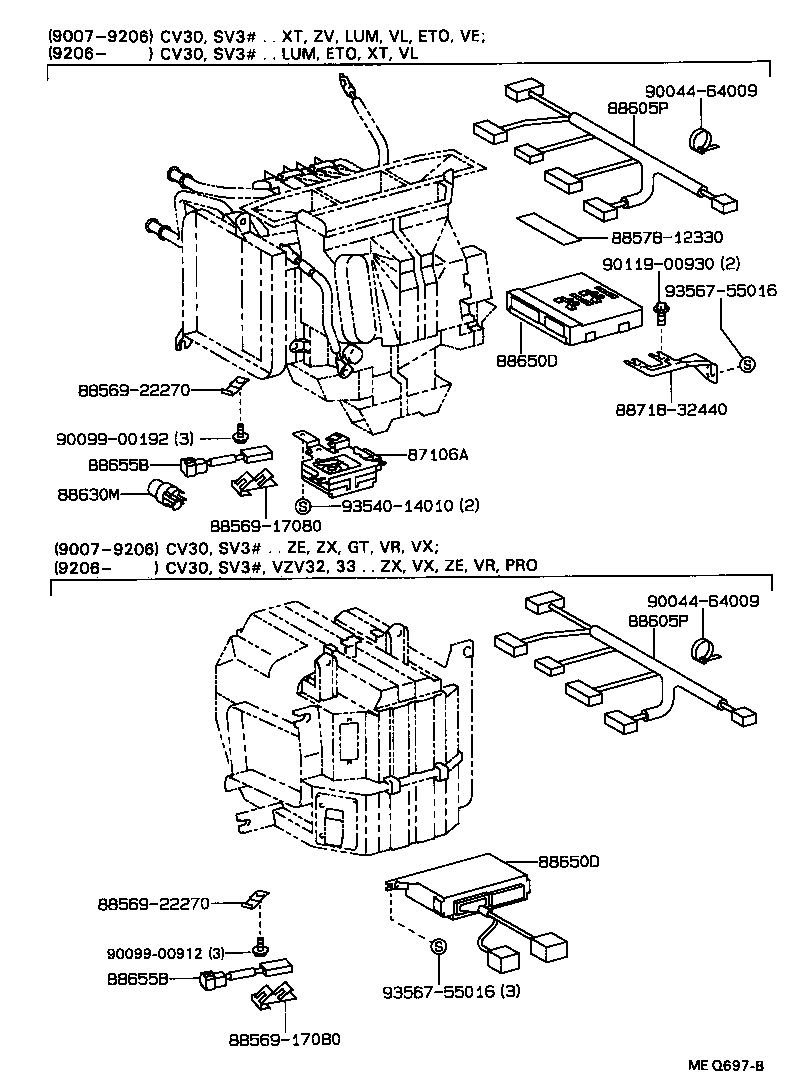

ILLUST NO. 3 OF 3(9007-9406)CV30,SV3#
W(AUTO AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-32100 |
CV30,SV3#..ETO,LUM,VE,VL,XT,ZV ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87106-32070 |
CV30,SV3#,VZV3# MODE CONTROL |
1 | ||
| 87106-32070 |
CV30,SV3#..ETO,LUM,VE,VL,XT,ZV |
1 | ||
| 87106-32100 |
CV30,SV3#..ETO,LUM,VL,XT ｶﾝﾚｲﾁ ｼﾖｳ,MODE CONTROL |
1 | ||
| 87106-32070 |
CV30..4FC..LUM;CV30..HT..4FC..ETO;SV3#..ETO,LUM,VL,XT;CV30..5F..(ETO,LUM) ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 87106-32100 |
CV30..4FC..LUM;CV30..HT..4FC..ETO;SV3#..ETO,LUM,VL,XT;CV30..5F..(ETO,LUM) ｶﾝﾚｲﾁ ｼﾖｳ & ﾅｼ(ｴｱｺﾝ) |
1 | ||
| 87106-32080 |
CV30,SV3#,VZV3# AIR MIX CONTROL |
1 | ||
| 87106-32080 |
CV30,SV3#..ETO,LUM,VE,ZV AIR MIX CONTROL |
1 | ||
| 87106-32080 |
CV30..4FC..LUM;CV30..HT..4FC..ETO;SV3#..ETO,LUM,VL,XT;CV30..5F..(ETO,LUM) ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-32630 |
SV3#..ETO,LUM,VE,ZV |
1 | ||
| 88605-32630 |
CV30..4FC..LUM;CV30..HT..4FC..ETO;SV3#..ETO,LUM,VL,XT;CV30..5F..(ETO,LUM) |
1 | ||
| 88605P - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-32630 |
SV3#..ETO,LUM,VE,ZV |
1 | ||
| 88605-32630 |
CV30..4FC..LUM;CV30..HT..4FC..ETO;SV3#..ETO,LUM,VL,XT;CV30..5F..(ETO,LUM) |
1 | ||
| 88630M - RELAY ASSY, COOLER | ||||
| 90987-02004 |
SV3#..ETO,LUM,VE,ZV |
1 | ||
| 90987-02004 |
CV30..4FC..LUM;CV30..HT..4FC..ETO;SV3#..ETO,LUM,VL,XT;CV30..5F..(ETO,LUM) |
1 | ||
| 88650D - AMPLIFIER ASSY | ||||
| 88650-32320 |
CV30,SV3#..ETO,LUM,VL,XT |
1 | ||
| 88650-32320 |
CV30,SV3#..ETO,LUM,VE,ZV |
1 | ||
| 88650D - AMPLIFIER ASSY | ||||
| 88650-32320 |
CV30,SV3#..ETO,LUM,VL,XT |
1 | ||
| 88650-32320 |
CV30,SV3#..ETO,LUM,VE,ZV |
1 | ||
| 88655B - SWITCH, WATER TEMPERATURE | ||||
| 88655-22020 |
CV30,SV3#,VZV3# |
1 | ||
| 88790-24040 |
SV3#..ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX |
1 | ||
| 88790-24040 |
SV3#..ETO,LUM,VL,XT ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88655B - SWITCH, WATER TEMPERATURE | ||||
| 88655-22020 |
CV30,SV3#,VZV3# |
1 | ||
| 88790-24040 |
SV3#..ETO,GT,LUM,VE,VR,VX,ZE,ZV,ZX |
1 | ||
| 88790-24040 |
SV3#..ETO,LUM,VL,XT ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| Common parts | ||||
| 88569-17080 | ||||
| 88569-22270 | ||||
| 88578-12330 | ||||
| 88718-32440 | ||||
| 90044-64009 | ||||
| 90099-00192 | ||||
| 90099-00912 | ||||
| 90119-00930 | ||||
| 93540-14010 | ||||
| 93567-55016 | ||||
